Zortrax Inkspire Resin UV LCD 3D Printer





Resin 3D printing made better

The technology behind Zortrax Inkspire relies on a high resolution LCD screen with UV LED backlighting
to cure photopolymers layer by layer









Meet UV LCD technology

Stereolithography (SLA) and Digital Light Processing (DLP) are two traditional resin 3D printing technologies. In SLA, the precision is constant, but the speed of operation is in inverse proportion to the amount of workspace taken by the model. In DLP, the speed of operation is constant, but the precision falls as the amount of used workspace increases. Zortrax UV LCD offers constant high speed and precision regardless of how much of the workspace is in use.









Serial production

Zortrax Inkspire maintains constant high speed of operation and accuracy regardless of how much of the workspace is used. With one printer making 50 to 80 parts in 1h 30min, 30 printers working together can offer an approximate monthly output of 360,000 to 500,000 parts. That's why Zortrax Inkspire can work as a basic production unit in easily scalable 3D printing farms capable of short-series manufacturing.



Compatible resins

Zortrax Inkspire works with a dedicated Zortrax Resins. External resins are fully supported, provided they can be cured by light with 405nm wavelength.

Zortrax Resin Basic

Zortrax Resin Basic is a photopolymer designed specifically for Zortrax Inkspire. It guarantees impeccable accuracy of details and great mechanical properties at the same time. It is available in white.

External Resins

External resins compatible with Zortrax Inkspire include special purpose photopolymers designed for applications in dental prosthetics or jewelry design i.a.





Applications

Resin 3D printing is a technology perfect for professionals working in fields where very small yet incredibly detailed models are needed. The precision and speed of Zortrax Inkspire makes it a game changing tool for dentists, jewelers, and watch designers among others.



Flexible manufacturing

Zortrax Inkspire 3D printers offer scalable, flexible manufacturing capabilities for businesses needing small, precise components. It is a perfect tool for engineers working at research and development departments and on production lines in various industries from automotive through aerospace to consumer electronics.



Art and entertainment

Small yet beautifully designed models made on resin 3D printers are useful for artists and the entertainment industry. Detailed figurines can be made for board games. Small intricate gifts made in limited series are perfect for marketing and public relations departments.



Dental prosthetics

Resin 3D printers are particularly useful in making dental casts faster and more efficient. Compared with traditional dental modeling techniques, Zortrax Inkspire allows less invasive procedures requiring little to no patient's involvement. 3D printed models of patients' oral cavities are used to form dental casts, prostheses, and bridges.



Jewelry design

Modeling intricate rings, necklaces, and other jewelry requires an immense precision a good resin 3D printer can offer. 3D printed models are used in the lost wax casting process. A master model is immersed in a refractory casting material to create a mold for final jewelry items made of various metals.

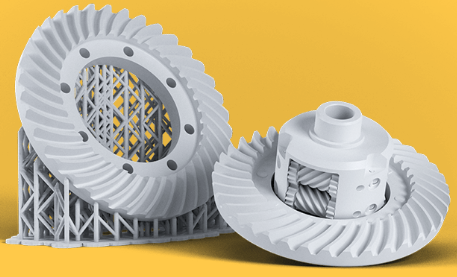

Attention to Detail






Z-SUITE for Zortrax Inkspire

Z-SUITE is a dedicated slicing and 3D printing farm management software that comes free with every Zortrax 3D printer. Now it has a number of additional functionalities to make working with Zortrax Inkspire an effortless experience.









Specifications for Zortrax Inkspire



Printing

Technology

UV LCD

Pixel size

50 microns (0.05 mm)

Layer thickness

25, 50, 100 microns

Print speed

20-36 mm/h

Device

Build volume

74 x 132 x 175 mm (2.9 x 5.2 x 6.9 in)

Support

Mechanically removed - printed with the same material as the model

Light source

UV integrated light (wavelength 405 nm)

Connectivity

Wi-Fi, Ethernet, USB

Operating system

Android

Processor

Quad Core

Touchscreen

4" IPS 800 x 480

Available materials

Zortrax Photopolymer Resin Basic

External materials

Applicable

Software

Software bundle

Z-SUITE

Supported file types

.stl, .obj, .dxf, .3mf, .zcodex

Supported formats

.cws, .zcodex

Supported operating systems

Mac OS X / Windows 7 and newer versions

Weight and physical dimensions

Device (W x D x H)

210 x 210 x 420 mm (8.3 x 8.3 x 16.5 in)

Shipping box

315 x 312 x 530 mm (12.4 x 12.3 x 20.9 in)

Shipping weight

10.5 kg (23.1 lb)

Device weight*

9.2 kg (20.3 lb)

Net weight

7,6 kg (16,8 lb)

Temperature

Ambient operation temperature

20 - 30° C (68 - 86° F)

Storage temperature

0 - 35° C (32 - 95° F)

Electrical

AC input

110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz

Maximum power consumption

50 W

In the box

3D Printer, Z-SUITE, Starter Kit, Zortrax Photopolymer Resin Basic (500 ml)

Additional information

All information contained in this brochure and specification is subject to change without notice.
