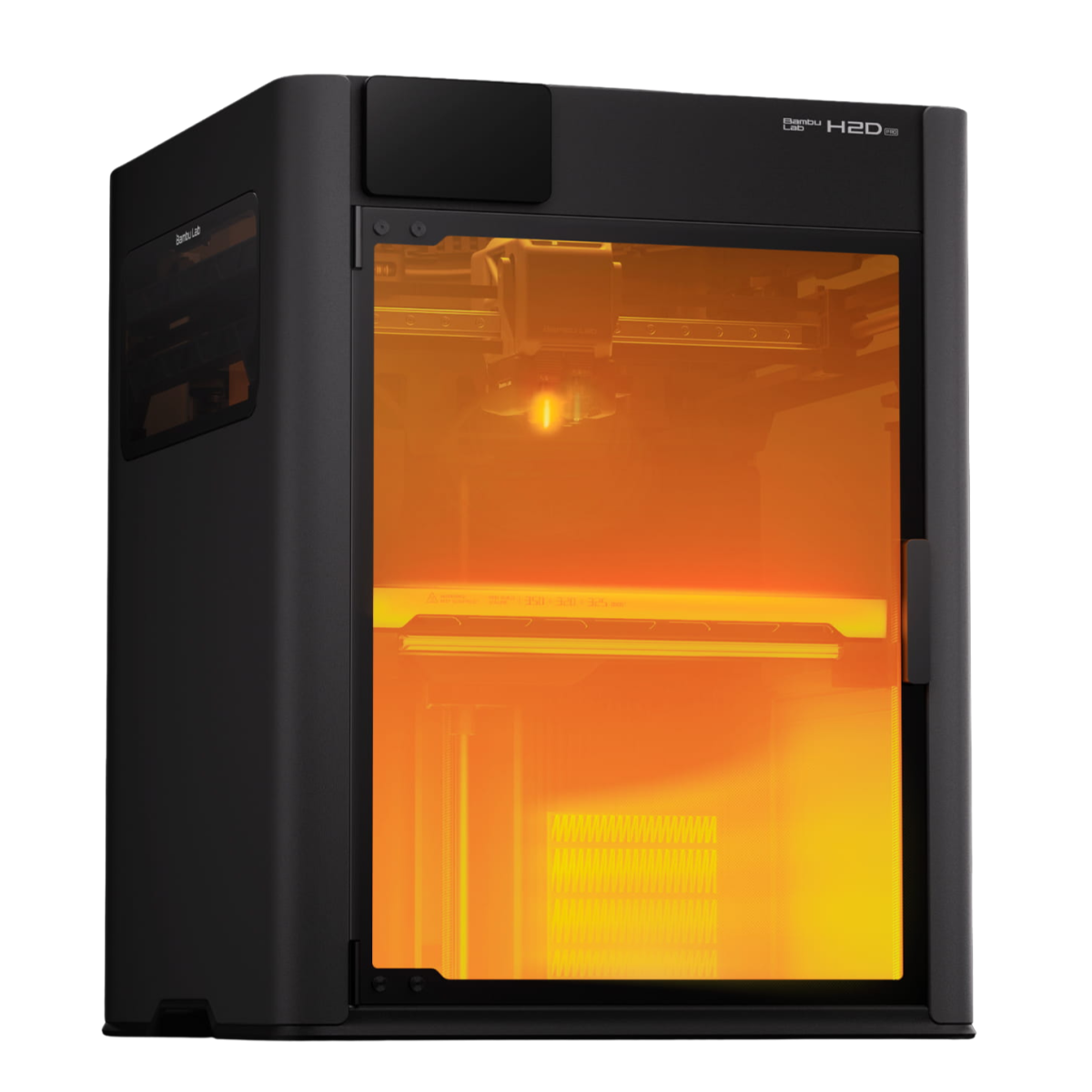

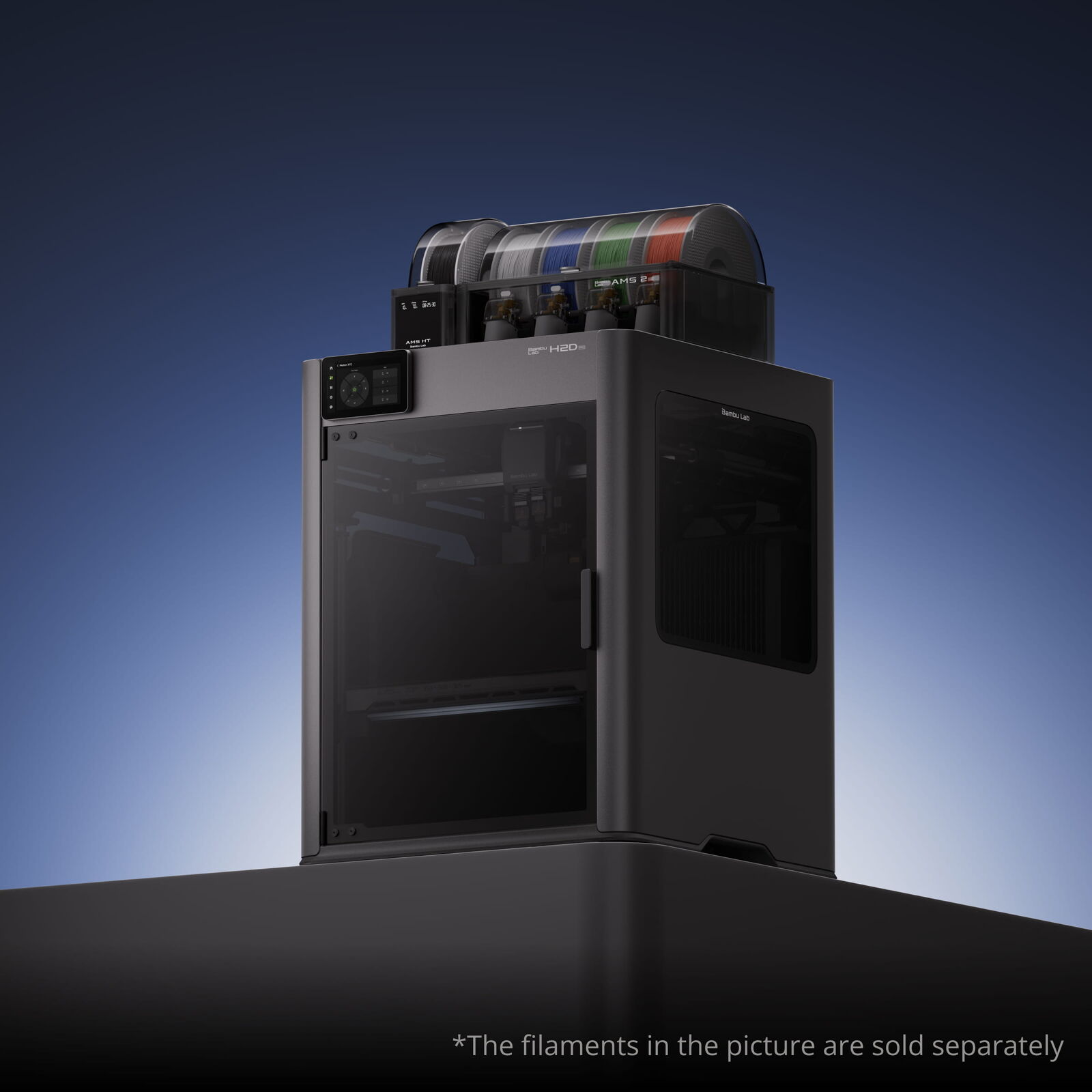

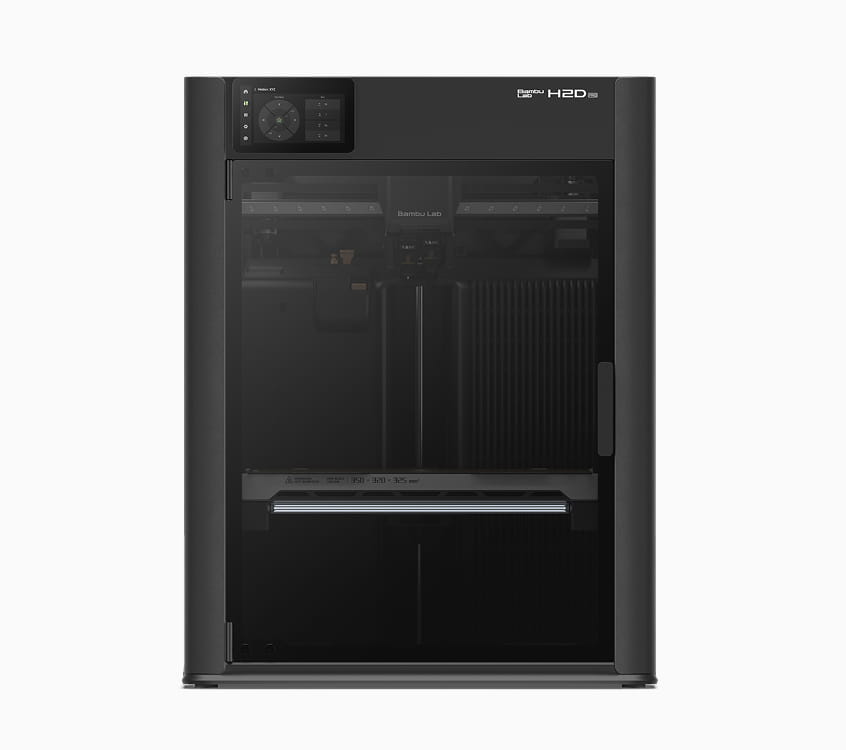

BAMBU LAB H2D PRO 3D PRINTER

BUILT FOR ENTERPRISE SECURITY AND RELIABILITY

Experience superior production results with the Bambu Lab H2D Pro 3D Printer—engineered for professionals who demand quality, security, and reliability. Unlock advanced high-temperature material versatility, seamless enterprise integration, and increased productivity with outstanding print quality. Featuring a 350°C dual-nozzle system, secure Ethernet and WPA2-Enterprise connectivity, Vision Encoder Calibration, and more, the H2D Pro empowers your organization to achieve exceptional 3D prints with confidence and efficiency.

Product Features

• 350℃ (662°F) High-Temperature Dual Nozzle Printing
• Auxilary Extruder Cooling Fan
• Tungsten Carbide Super Durable Nozzle
• 65℃ (149°F) Active Chamber Heating
• 50um Motion Accuracy
• Ethernet Connection
• Physical Network Killswitch
• WPA2-Enterprise Wi-Fi Authentication
• Adaptive Air Circulation & HEPA Filtering

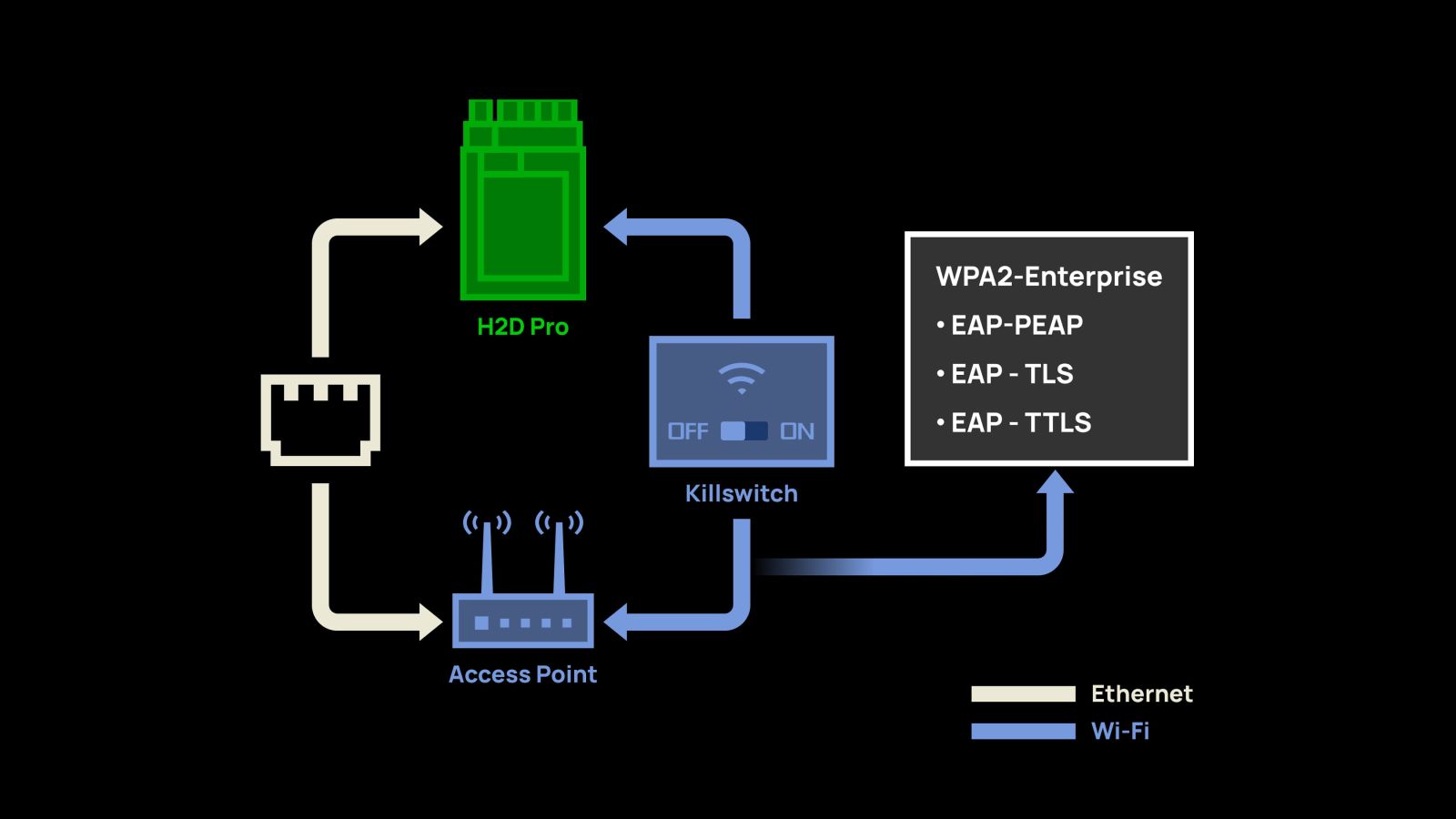

Professional Connection Options

Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection

The H2D Pro offers the option to connect to your devices through its newly added Ethernet port, ensuring robust network communication in complex environments. Ethernet connectivity can also be used in crowded wireless signal environments. Additionally, the H2D Pro provides WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/EAP-TTLS) and individual physical kill switches for Wi-Fi, meeting stringent network security requirements.

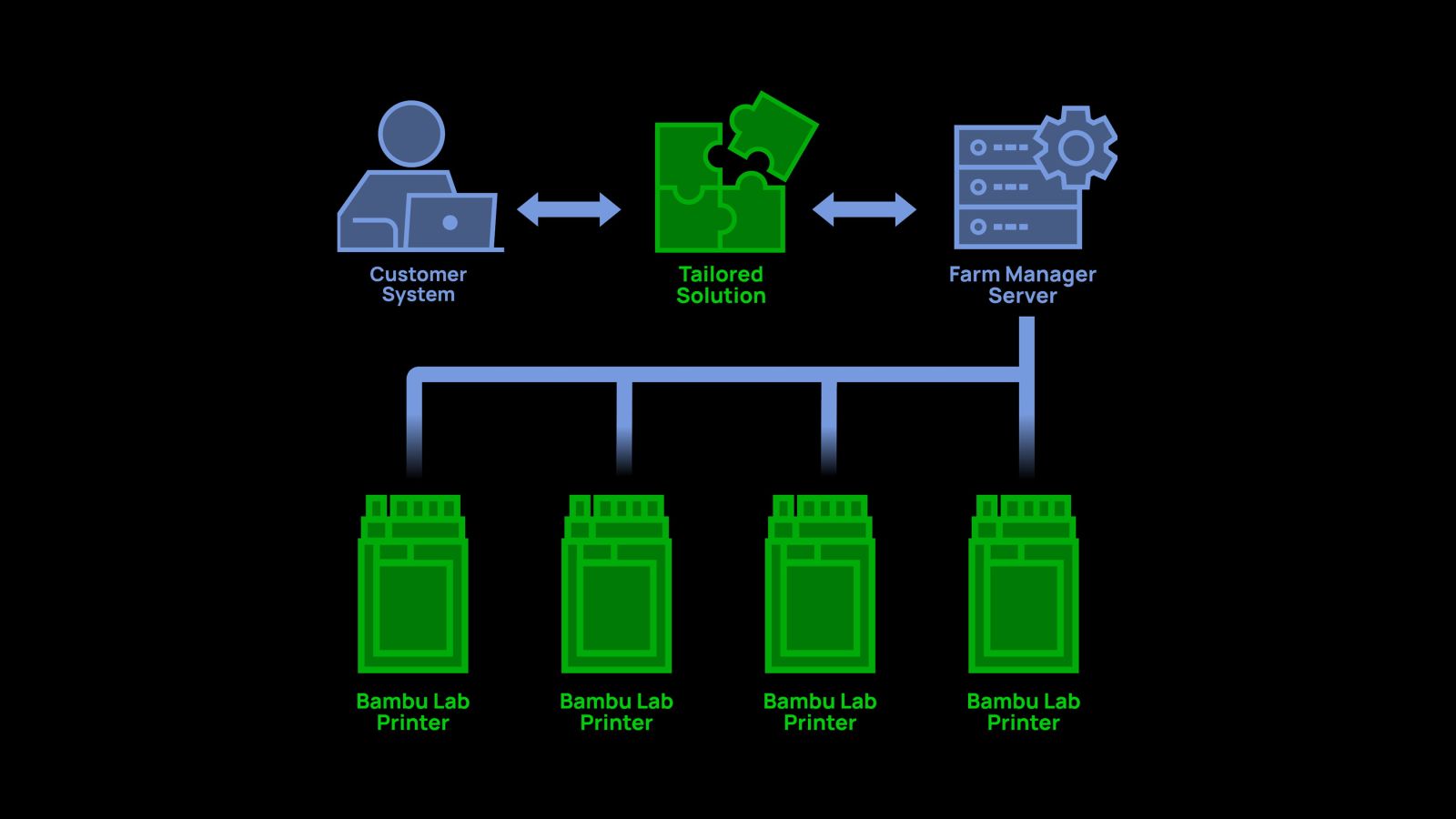

Enterprise Integration Support

Tailor Solution For Printer Management

Bambu Lab provides professional support for enterprises to custom-develop efficient printer fleet management tools, meeting their business integration needs. Our expert software R&D team offers full technical assistance to help clients achieve their required customized functionalities.

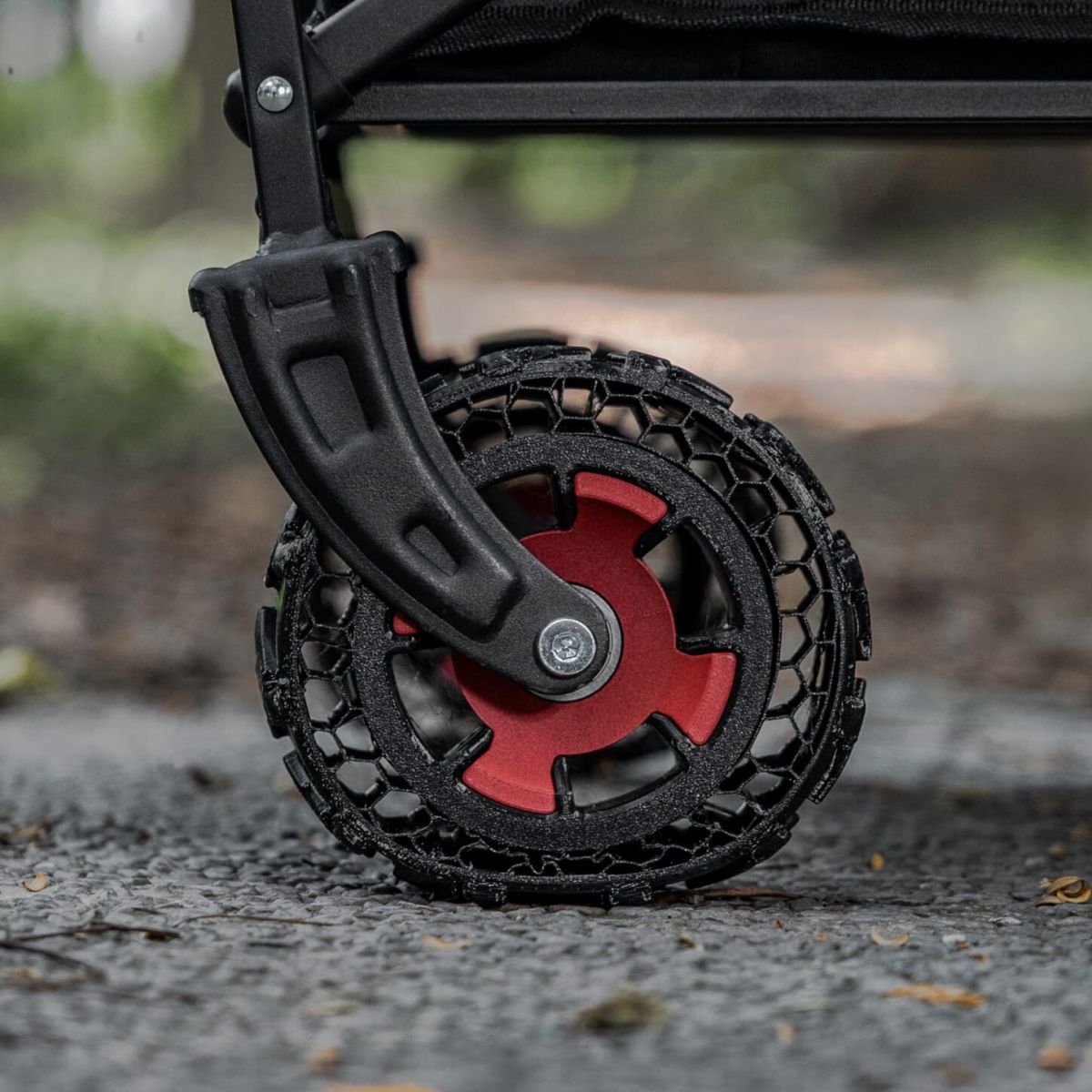

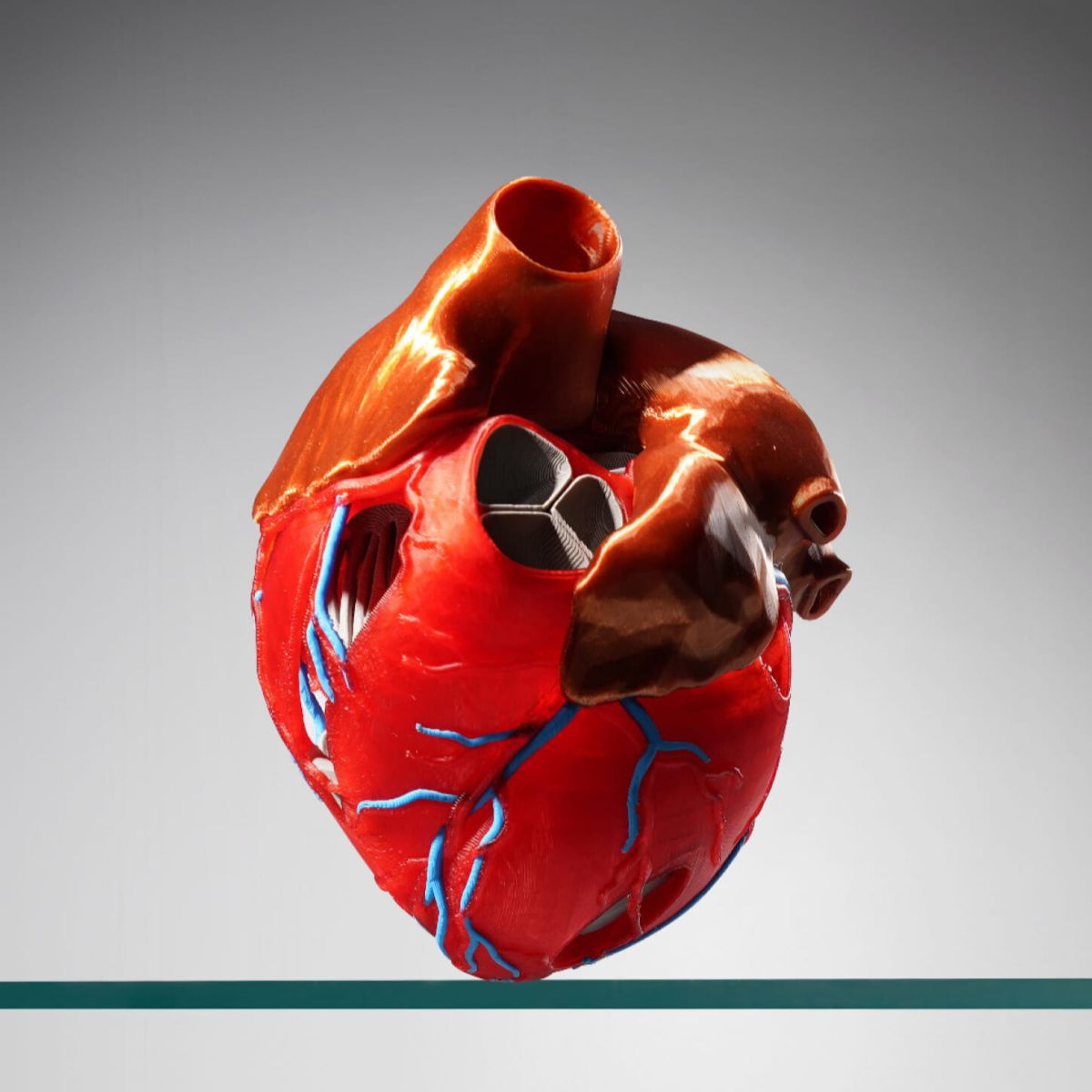

Multi-Material Printing Seamlessly combine flexible and rigid materials in a single print to produce durable interlocking structures and creative designs beyond the reach of conventional manufacturing. By strategically pairing high-performance materials with standard options, you can lower production costs and maximize efficiency—reserving premium materials only for the areas where they’re needed most.
	Efficient Multi-Color Printing Dual-nozzle printing with the H2D significantly reduces purge cycles in multi-color jobs. Smart algorithms optimize filament usage, saving time and materials while maximizing the efficiency of dual-nozzle operation.

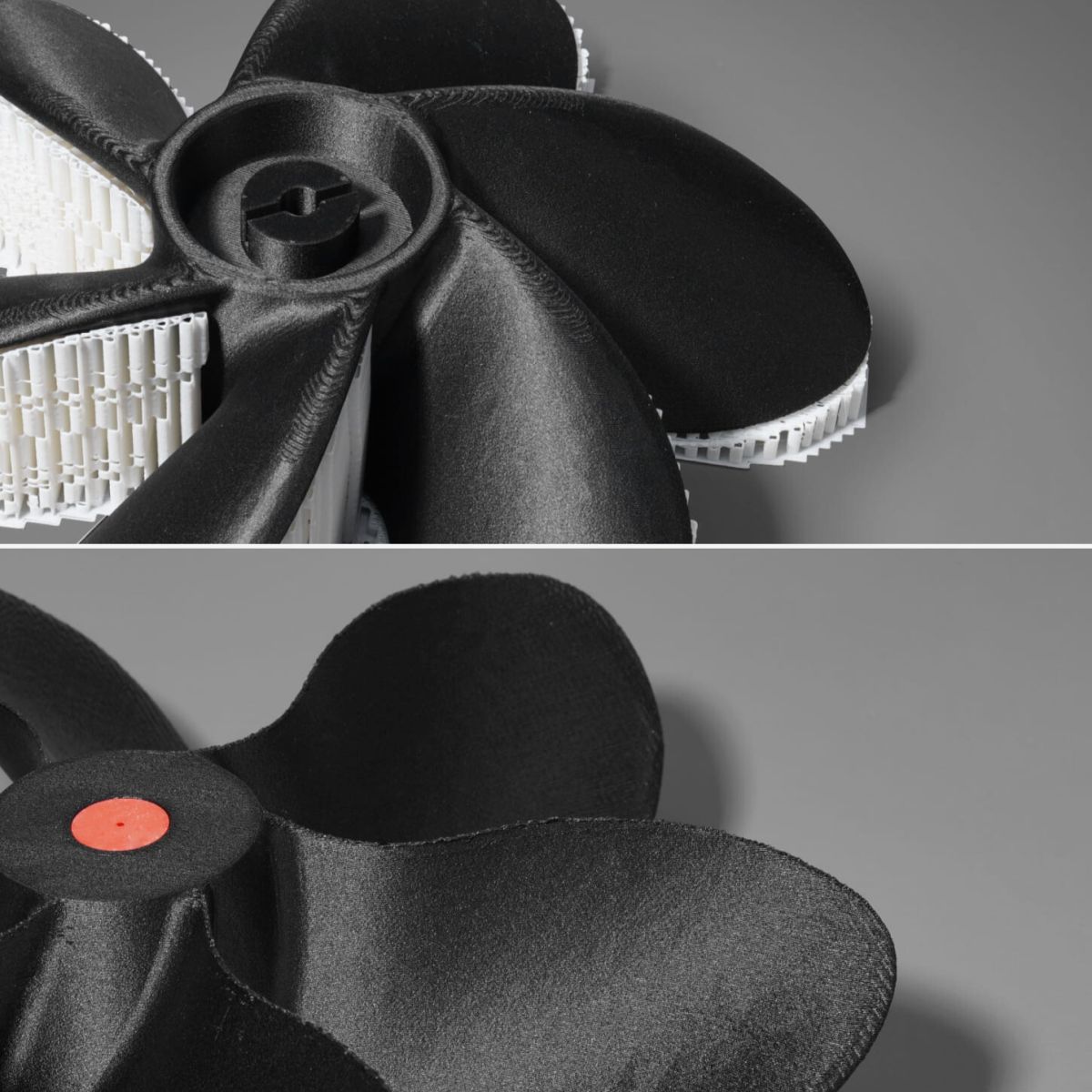

Dedicated Support Material Printing with supports is no longer a challenge. Thanks to the H2D’s dual-nozzle setup, one nozzle can be dedicated entirely to support material, ensuring secure prints and a perfectly smooth interface. This approach improves print quality, makes post-processing easier, and enhances the overall efficiency of your workflow.

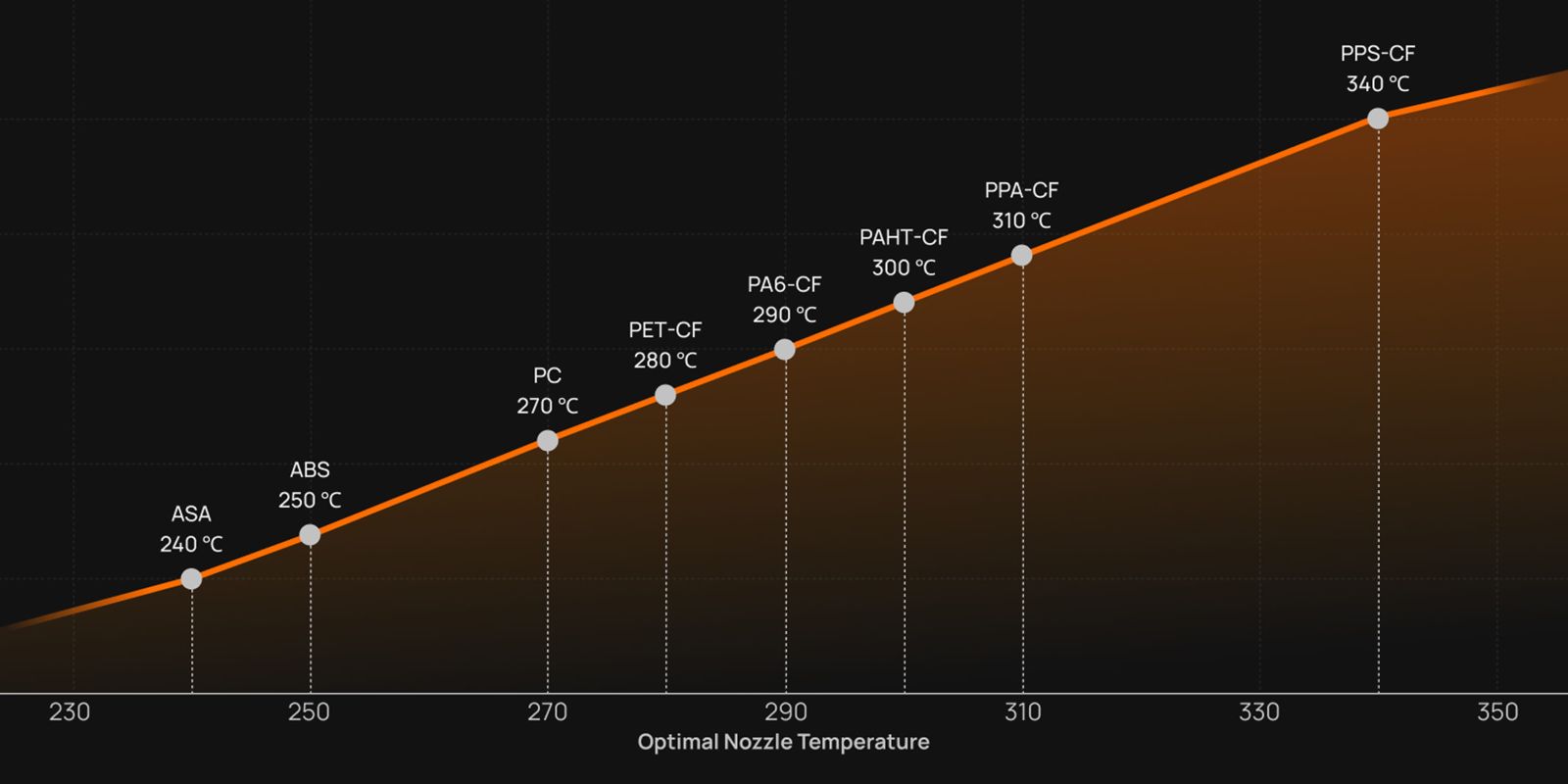

350℃ (662°F) High-Temperature Nozzle

Unlock the full potential of high-temperature engineering filaments with a 350℃ (662°F) nozzle. Achieve superior layer bonding when printing demanding materials like PPA-CF, PPS, and PPS-CF, resulting in stronger, more reliable parts built for performance.

65℃ (149°F) Active Chamber Heating & Cooling Equipped with a 65°C active chamber heater and adaptive air circulation, the H2D Pro intelligently manages chamber temperature for optimal printing. Active flaps control internal and external airflow based on filament type, preventing low-temperature clogs, reducing high-temperature warping, improving layer bonding, and fully leveraging each material's strengths.

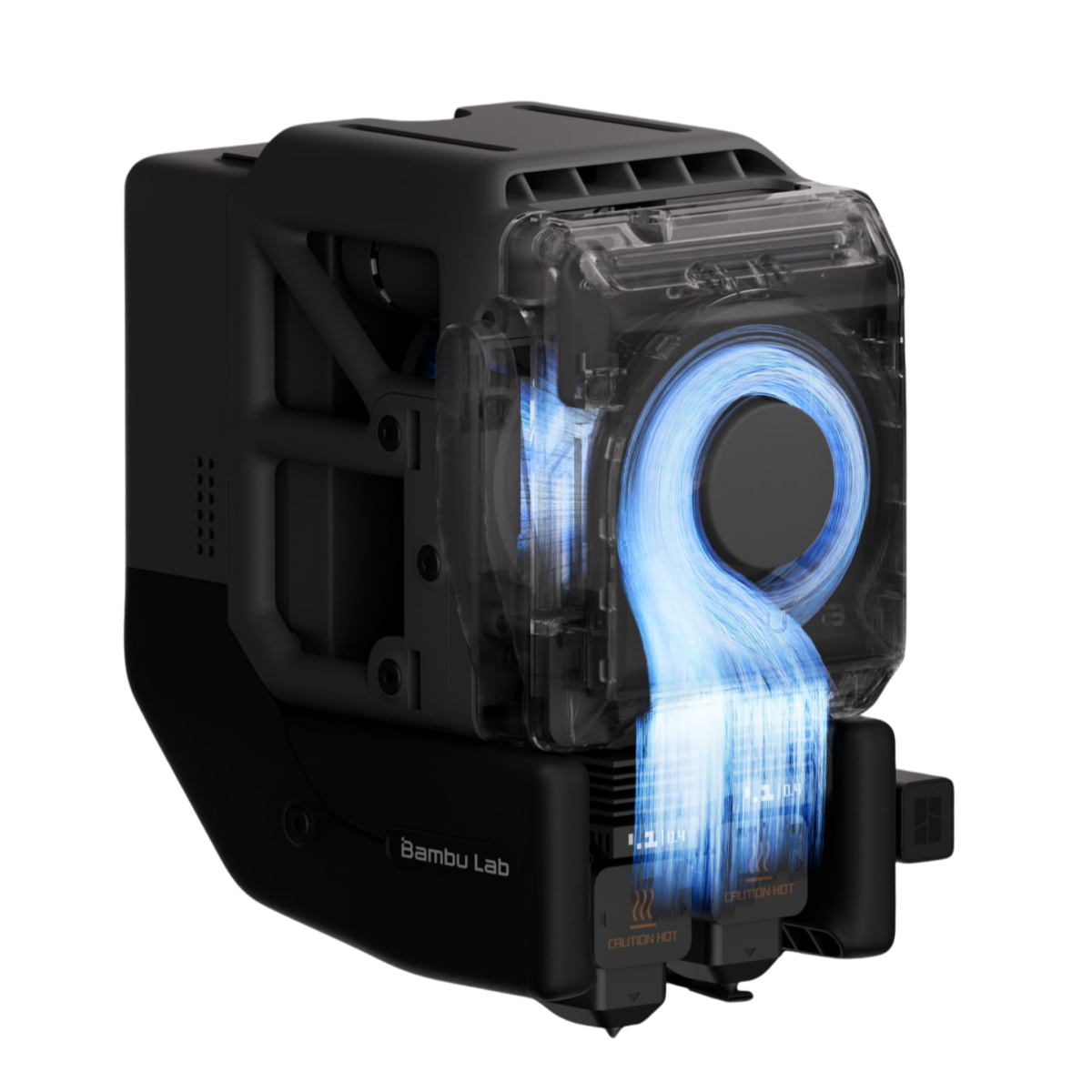

Toolhead Enhanced Cooling Fan A new high-performance fan integrated into the toolhead front cover effectively cools the extruder and hotend heatsink. This intelligent temperature control mitigates potential clogging and filament jamming in challenging environments, enabling a 3°C increase in the recommended printer operating temperature.

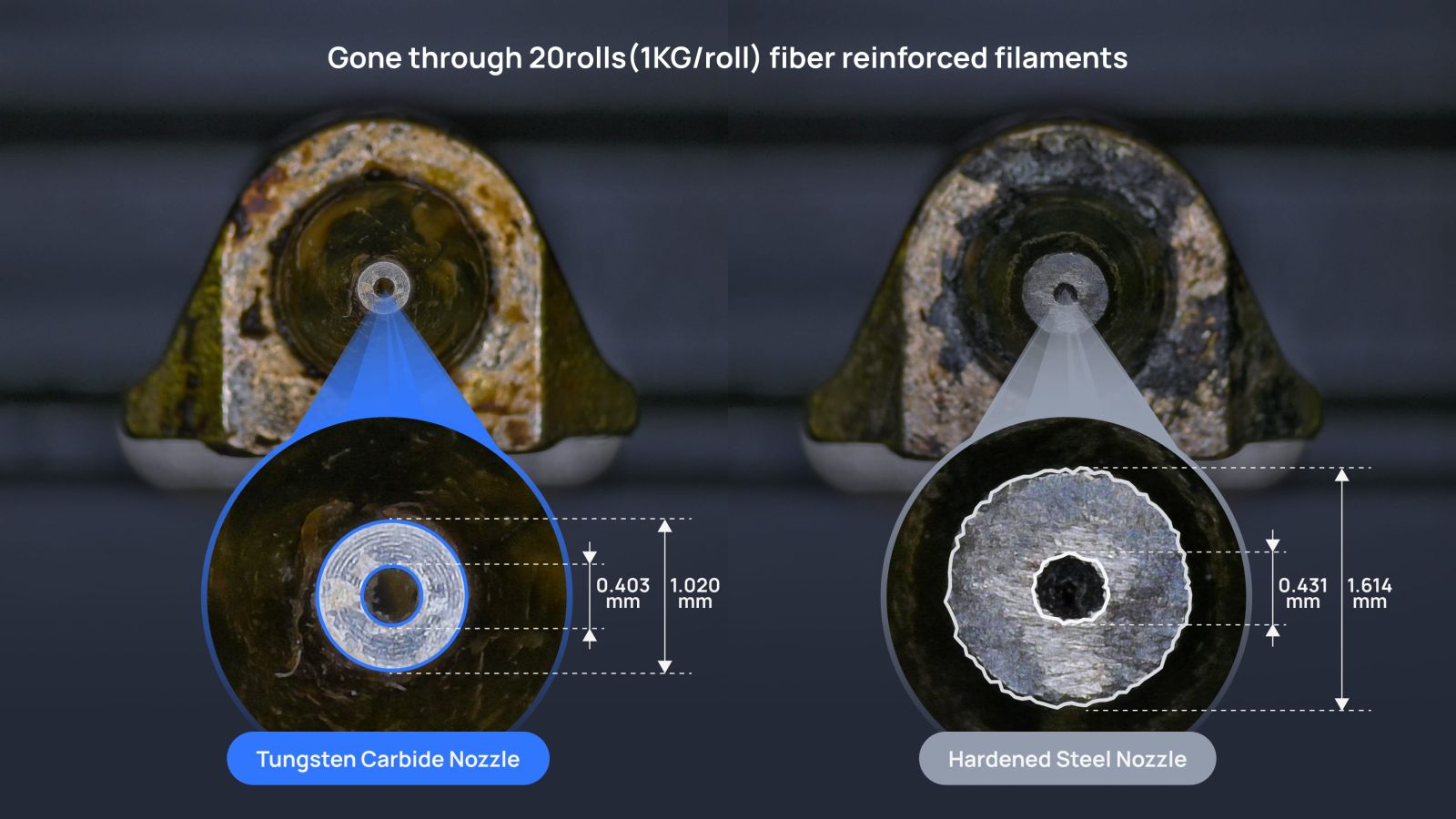

Tungsten Carbide Super Durable Nozzle

With an HRA 90 hardness rating compared to hardened steel's 74, the H2D Pro’s tungsten carbide nozzle offers exceptional wear resistance. This durability delivers up to 50% longer lifespan when printing abrasive, high-performance fiber-reinforced filaments, reducing maintenance and ensuring consistent print quality.

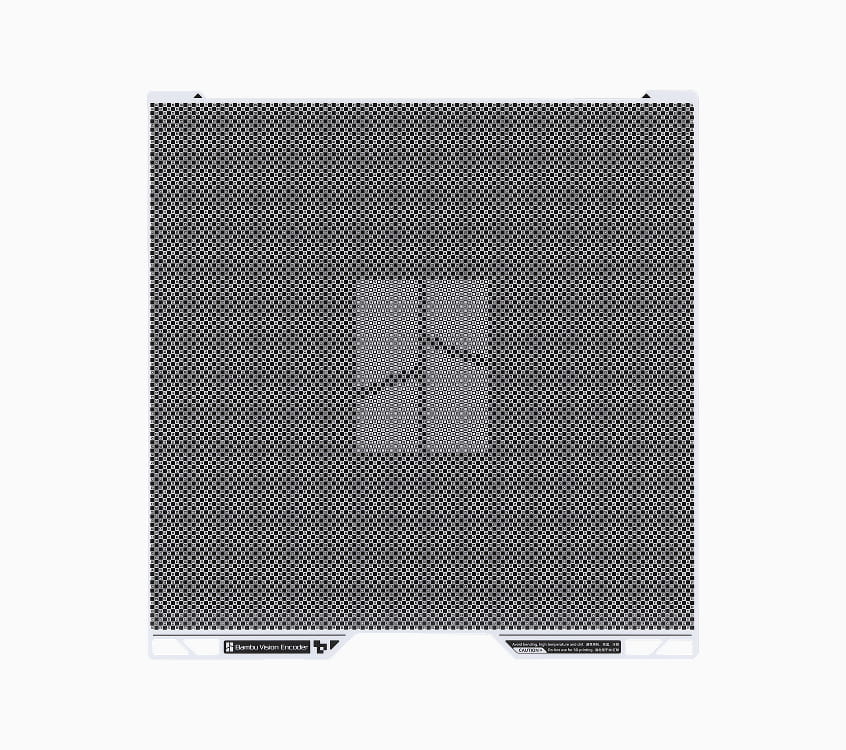

Vision Encoder

The H2D Pro features an ultra-high precision vision encoder plate with 5µm resolution optical measurement to calibrate toolhead movement. This advanced system delivers consistent, distance-independent 50µm motion accuracy across the entire build area, laying a strong foundation for producing highly accurate prints.

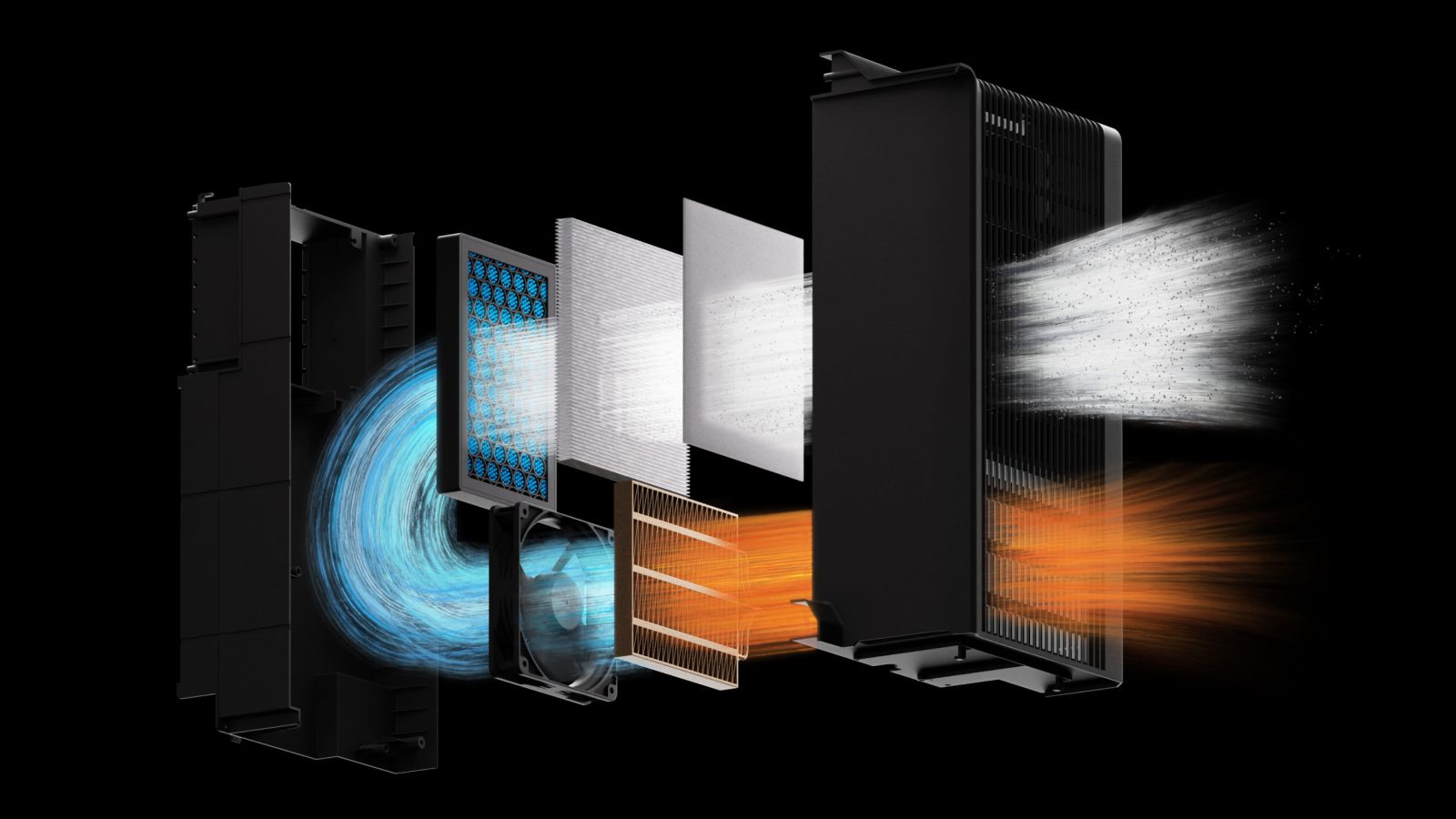

Heavy Duty Air Filtration

For optimal air filtration, the H2D Pro integrates a G3 pre-filter, an H12 HEPA filter, and a premium coconut shell activated carbon filter. This enhanced system effectively minimizes odors and particulates, making it especially beneficial when printing in less ventilated spaces.

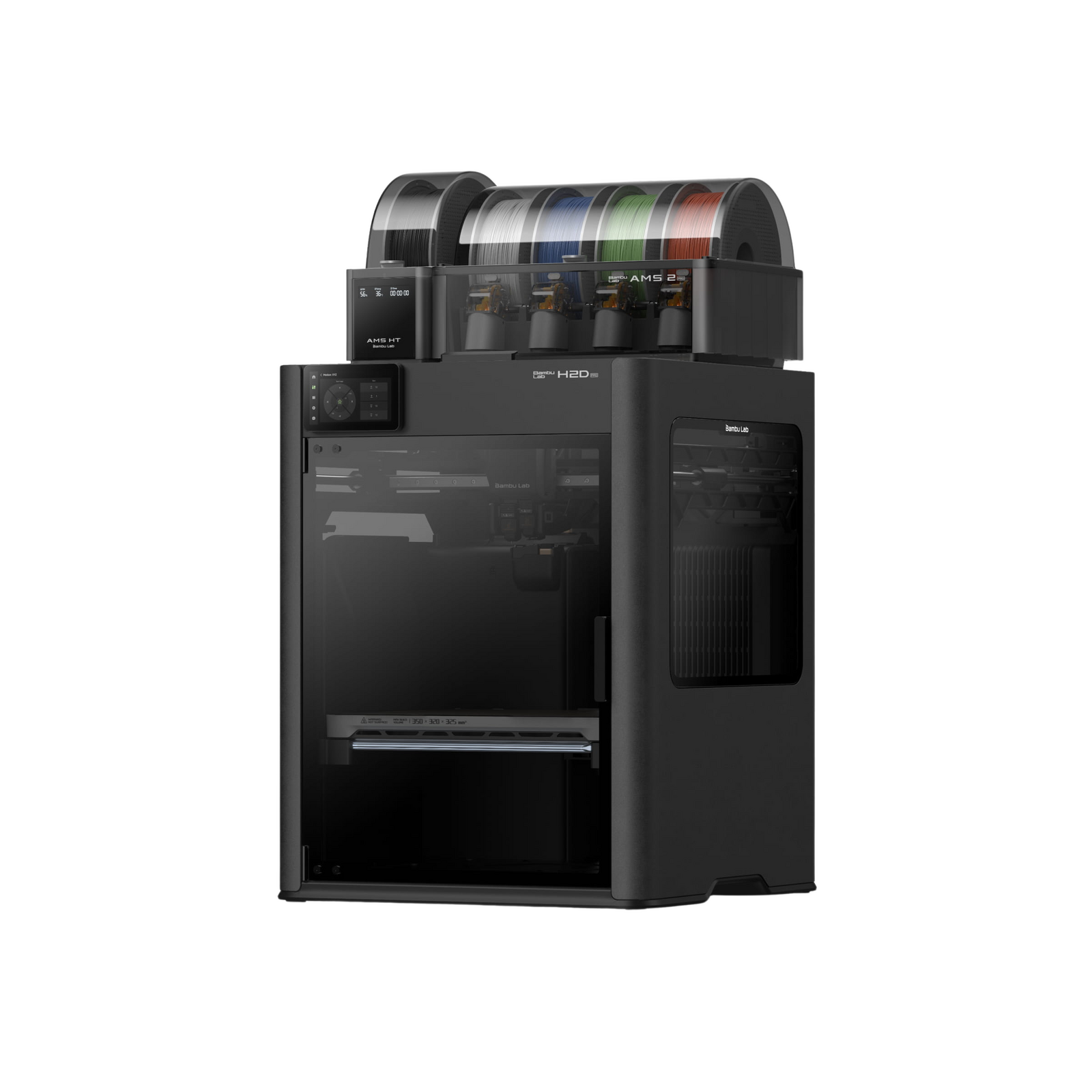

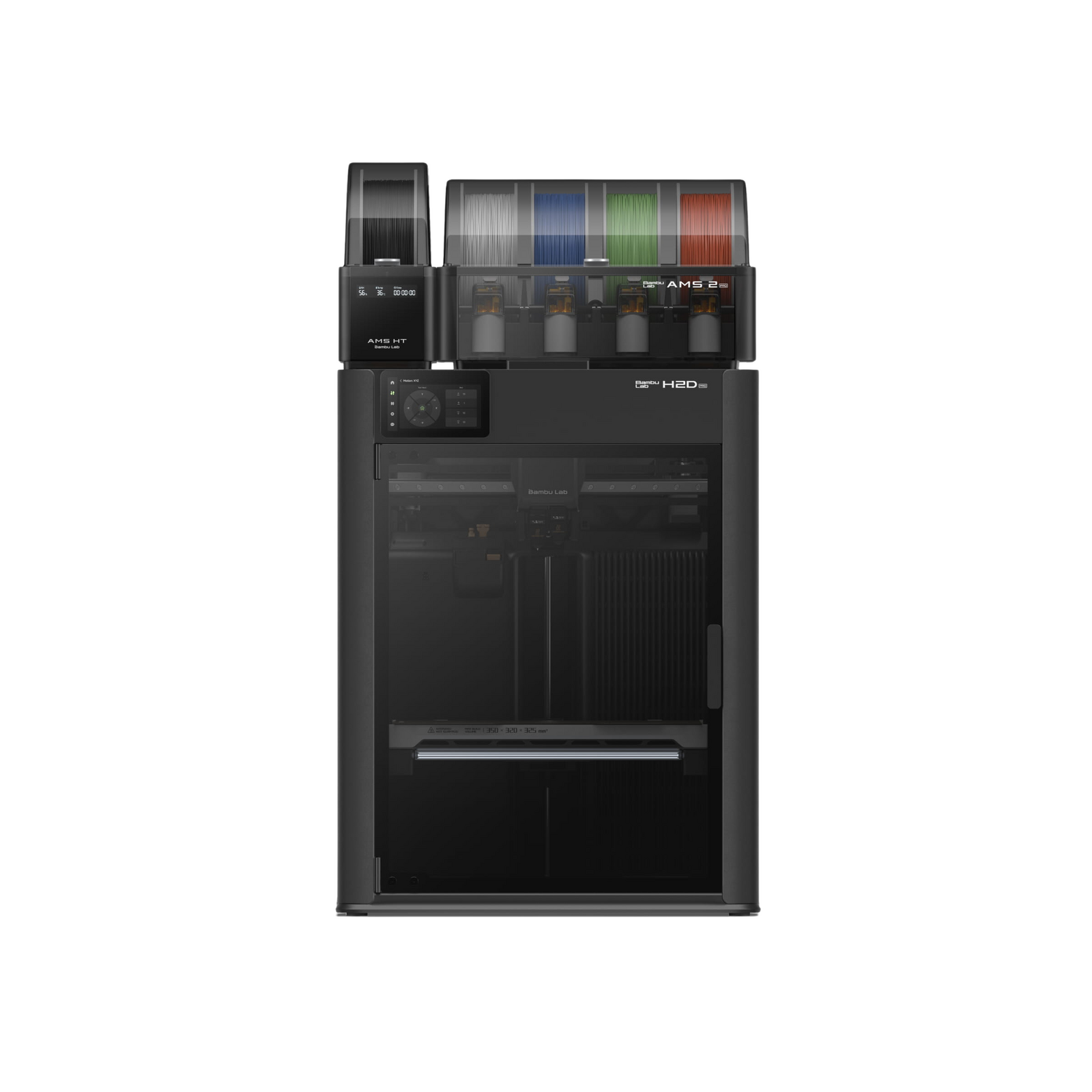

What's In The Box

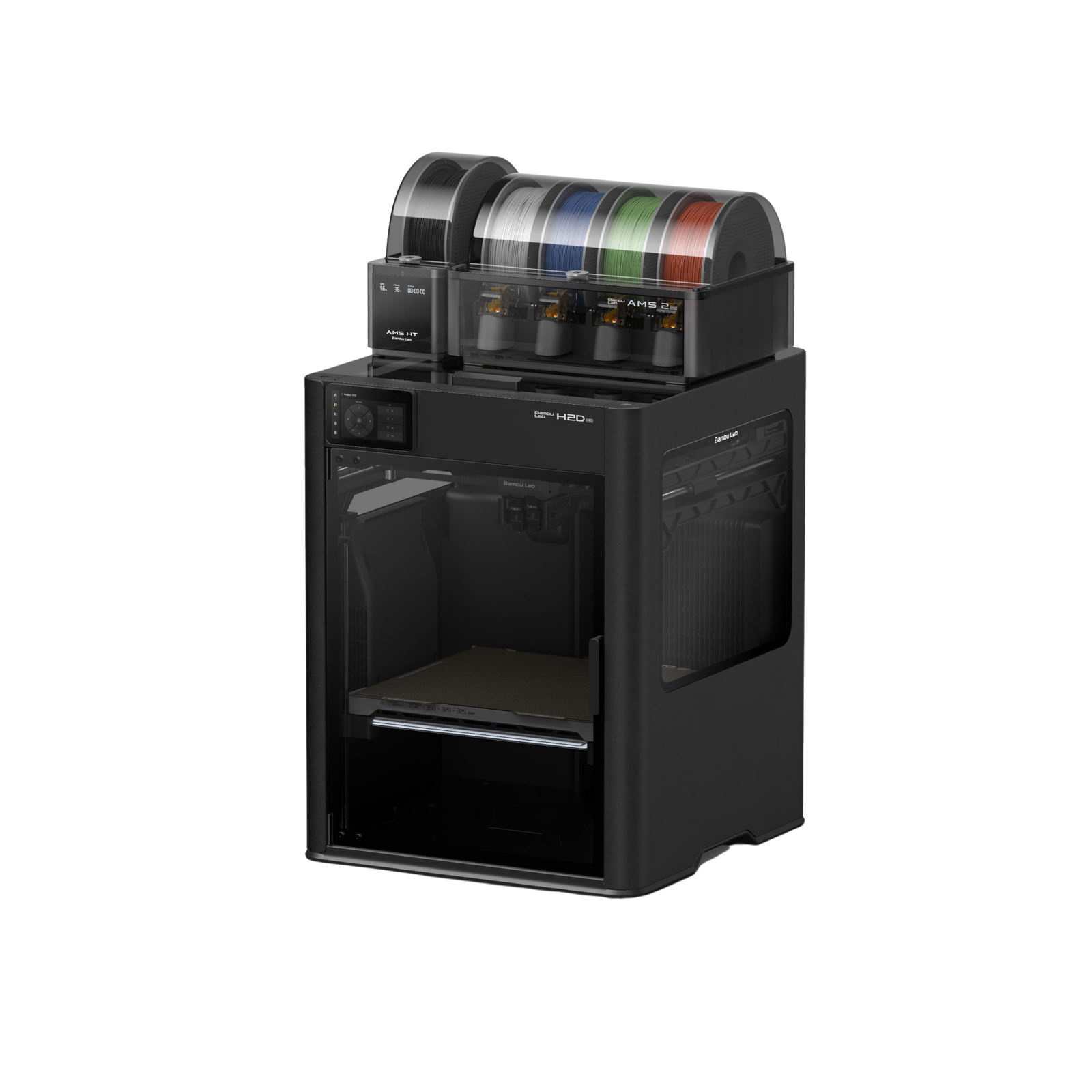

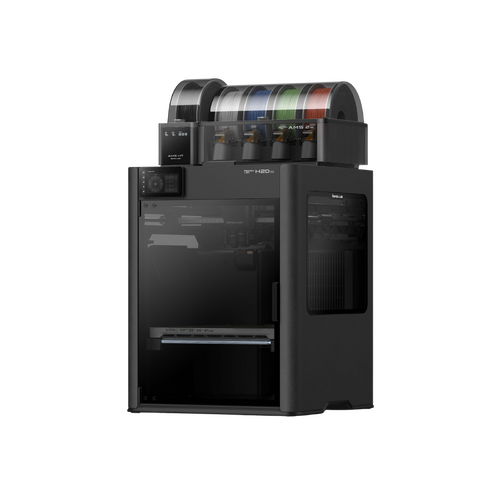

Bambu Lab H2D Pro	Bambu Lab AMS 2 Pro	Bambu Lab AMS HT	Vision Encoder Plate

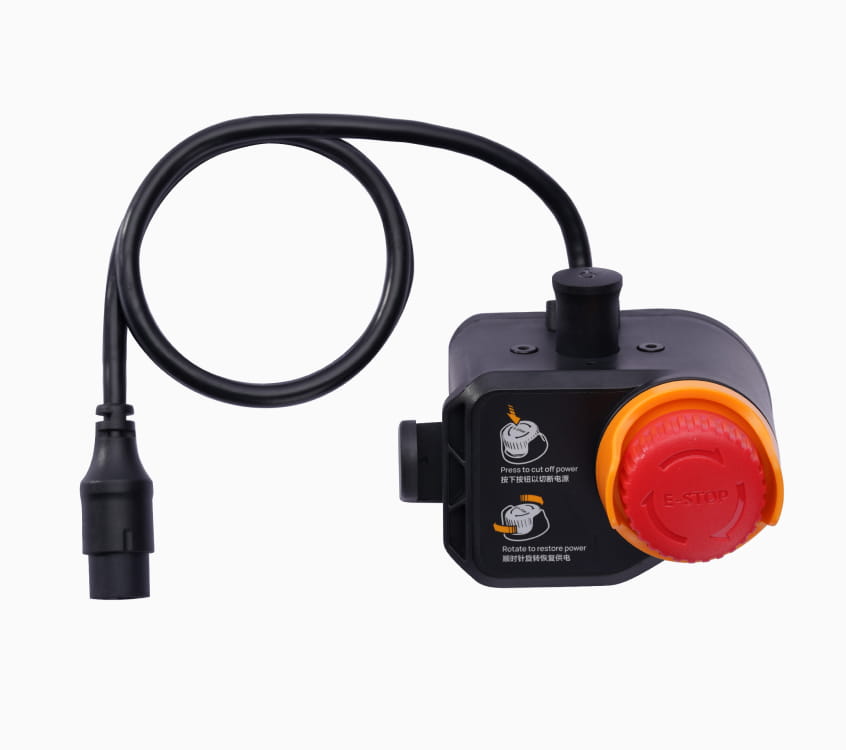

Emergency Stop Button	Textured PEI Build Plate





Bambu Lab H2D Pro - Technical Specifications

Body
Build Volume (W×D×H)	Single Nozzle: 325×320×325 mm³ Dual Nozzle: 300×320×325 mm³ Total Volume (Two Nozzles): 350×320×325 mm³
Chassis	Aluminum and Steel
Outer Frame	Plastic and Glass
Physical Dimensions
Physical Dimensions	492×514×626 mm³
Net Weight	31 kg
Toolhead
Hotend	All Metal
Extruder Gear	Hardened Steel
Nozzle	Tungsten Carbide
Max Nozzle Temperature	350 ℃
Included Nozzle Diameter	0.4 mm
Supported Nozzle Diameters	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Cutter	Built-in
Filament Diameter	1.75 mm
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed
Build Plate Material	Flexible Steel Plate

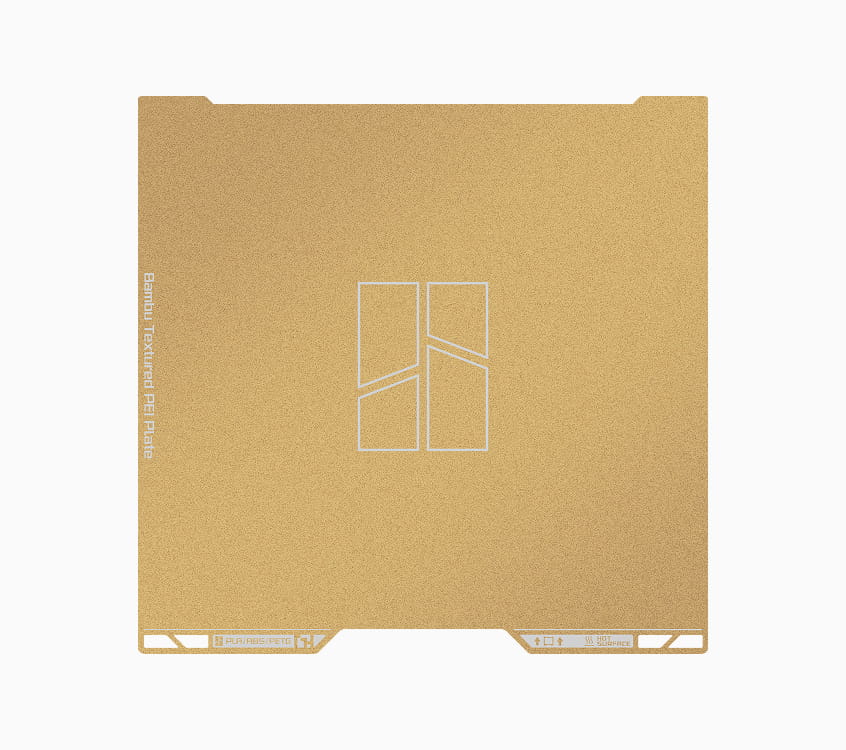

Included Build Plate Type	Textured PEI Plate
Supported Build Plate Types	Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature	120 ℃
Speed
Max Speed of Toolhead	1000 mm/s
Max Acceleration of Toolhead	20,000 mm/s²
Max Flow for Hotend	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)
Chamber Temperature Control
Active Chamber Heating	Supported
Max Temperature	65 ℃
Air Purification
Pre-filter Grade	G3
HEPA Filter Grade	H12
Activated Carbon Filter Type	Granulated Coconut Shell
VOC Filtration	Superior
Particulate Matter Filtration	Supported
Cooling
Fans (Closed Loop Control)	Part Cooling Fan; Hotend Cooling Fan; Main Control Board Fan; Chamber Exhaust Fan; Chamber Heat Circulation Fan; Auxiliary Part Cooling Fan; Toolhead Enhanced Cooling Fan
Supported Filament Types
Optimal	PLA, PETG, TPU, PVA, BVOH
Superior	ABS, ASA, PC, PA, PET; Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA
Ideal	PPA‑CF/GF, PPS, PPS‑CF/GF
Sensors
Live View Camera	Built‑in; 1920×1080
Nozzle Camera	Built‑in; 1920×1080
Toolhead Camera	Built‑in; 1920×1080
Door Sensor	Supported
Filament Sensors	Run‑out, Tangle; Odometry (Supported with AMS)
Power Loss Recovery	Supported
Electrical Requirements
Voltage	100–120 VAC / 200–240 VAC, 50/60 Hz
Max Power1	2200 W @ 220 V / 1320 W @ 110 V
Note	Please purchase the version corresponding to your region's voltage.
Working Temperature
Operating Range	10 ℃ – 30 ℃
Electronics
Touchscreen	5‑inch 720×1280 Touchscreen
Storage	Built‑in 32 GB EMMC and USB Port
Control Interface	Touchscreen, Mobile App, PC App
Motion Controller	Dual‑core Cortex‑M4 and Single‑core Cortex‑M7
Application Processor	Quad‑core 1.5 GHz ARM A7
Neural Processing Unit	2 TOPS
Software
Slicer	Bambu Studio. Supports third‑party slicers that export standard G‑code (e.g., SuperSlicer, PrusaSlicer, Cura), though certain advanced features may not be supported.
Supported Operating System	macOS, Windows
Network Control
Ethernet	Available
Wireless Network	Wi‑Fi
Network Kill Switch	Wi‑Fi and Ethernet
Removable Network Module	Available
802.1X Network Access Control	Available
Wi‑Fi
Operating Frequency	2412–2472 MHz, 5150–5850 MHz (FCC/CE) 2400–2483.5 MHz, 5150–5850 MHz (SRRC)
Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Protocol	IEEE 802.11 a/b/g/n
Ethernet
Port Type	RJ45
Speed	100 Mbps Full‑Duplex

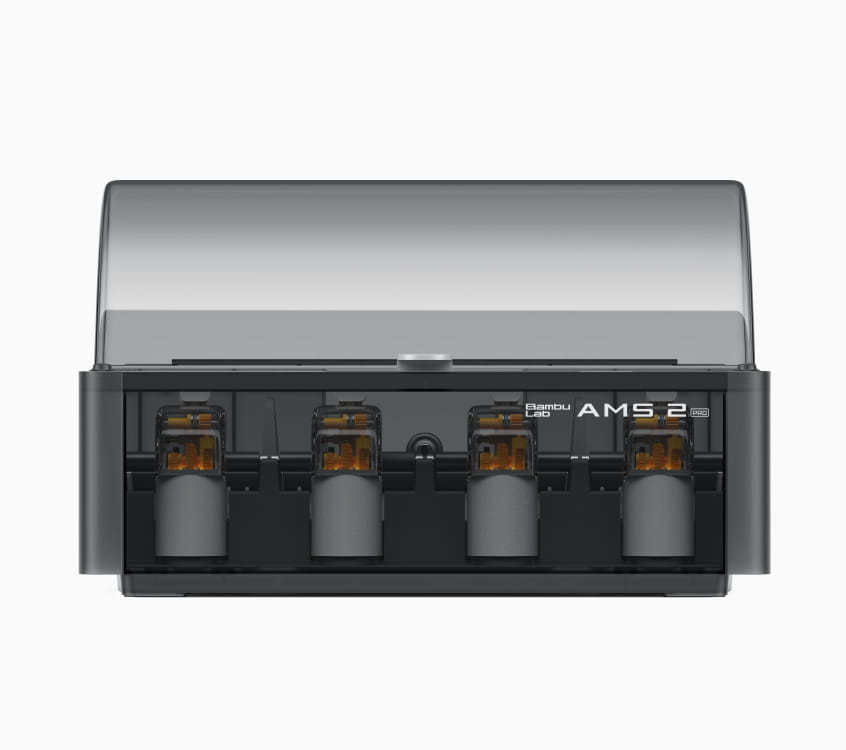

AMS 2 Pro
Dimensions	372×280×226 mm³
Net Weight	2.5 kg
Housing Material	ABS/PC
Filament Supported	PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, Bambu PLA‑CF / PAHT‑CF / PETG‑CF / Support for PLA/PETG, and TPU for AMS
Filament Not Supported	TPE, generic TPU, PVA (damp), BVOH (damp), Bambu PET‑CF / TPU 95A, other CF/GF filaments
Filament Diameter	1.75 mm
Spool Dimension	Width: 50–68 mm; Diameter: 197–202 mm
RFID Identification	Supported
Highest Temperature	65 ℃
Filament Supported2	PLA, PETG, Support for PLA/PETG, ABS*, ASA*, PET*, PA*, PC*, PVA*, BVOH*, PP, POM*, HIPS*, Bambu PLA‑CF* / PAHT‑CF* / PETG‑CF*, and TPU for AMS*
Active Moisture Discharge	Supported
Sealed Storage	Supported
Temperature & Humidity Detection/Maintenance	Supported. Real‑time temperature and humidity on screen3, Bambu Studio, and Bambu Handy.
Input	24 V 4 A

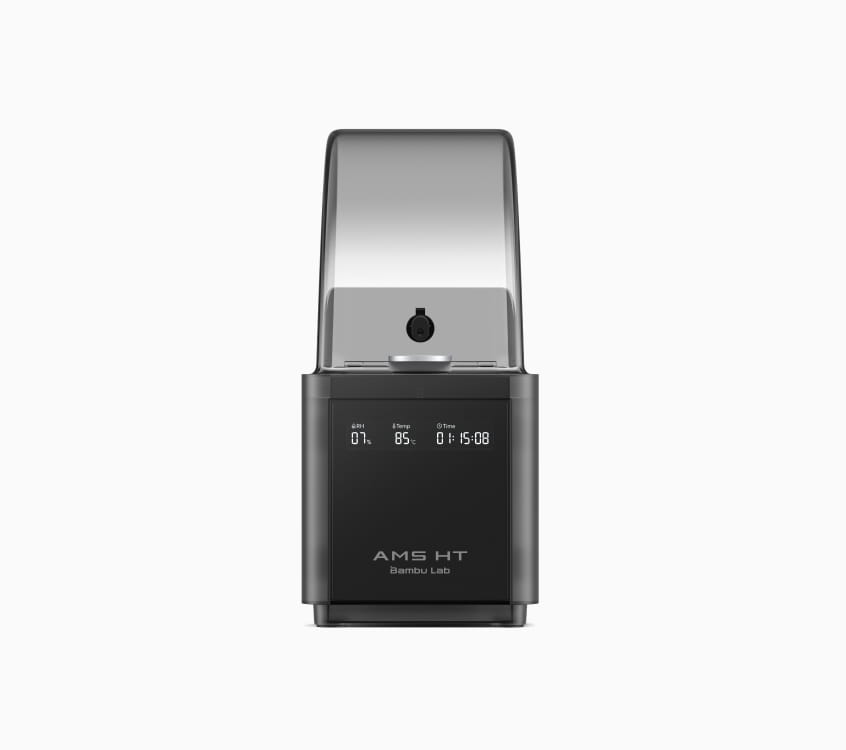

AMS HT
Dimensions	114×280×245 mm³
Net Weight	1.21 kg
Housing Material	PC/PA
Flame Retardant Grade	UL 94 V‑0
Screen	Displays real‑time temperature, humidity, and remaining drying duration.
Filament Supported (Feeder Inlet)	PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, Bambu PLA‑CF / PAHT‑CF / PETG‑CF / Support for PLA/PETG, and TPU for AMS
Filament Supported (Bypass Outlet)	TPE, generic TPU, Bambu PET‑CF / TPU 95A, and other CF/GF filaments
Filament Not Supported	PVA (damp), BVOH (damp)
Filament Diameter	1.75 mm
Spool Dimension	Width: 50–68 mm; Diameter: 197–202 mm
RFID Identification	Supported
Filament Odometry	Supported
Maximum Temperature	85 ℃
General Filament Supported	PLA, PETG, Support for PLA/PETG, ABS, ASA, PET, PA, PC, PVA, BVOH, PP, POM, HIPS, Bambu PLA‑CF / PAHT‑CF / PETG‑CF, and TPU for AMS
Active Moisture Discharge	Supported
Rotating Drying Mode	Supported
Sealed Storage	Supported
Top Lid Open Detection	Supported
Temperature & Humidity Detection/Maintenance	Supported. Shown on printer screen3, AMS HT screen, Bambu Studio, and Bambu Handy.
Voltage	DC: 24 V; AC: 100–240 V~, 50/60 Hz
Average Power	150 W

¹ To ensure the heatbed quickly reaches the needed temperature, the printer will maintain maximum power for about 3 minutes.
² Filaments marked with * require higher drying temperature. The AMS 2 Pro cannot dry them completely; for better performance, use AMS HT.
³ The screens of P1 series printers do not support this function.
