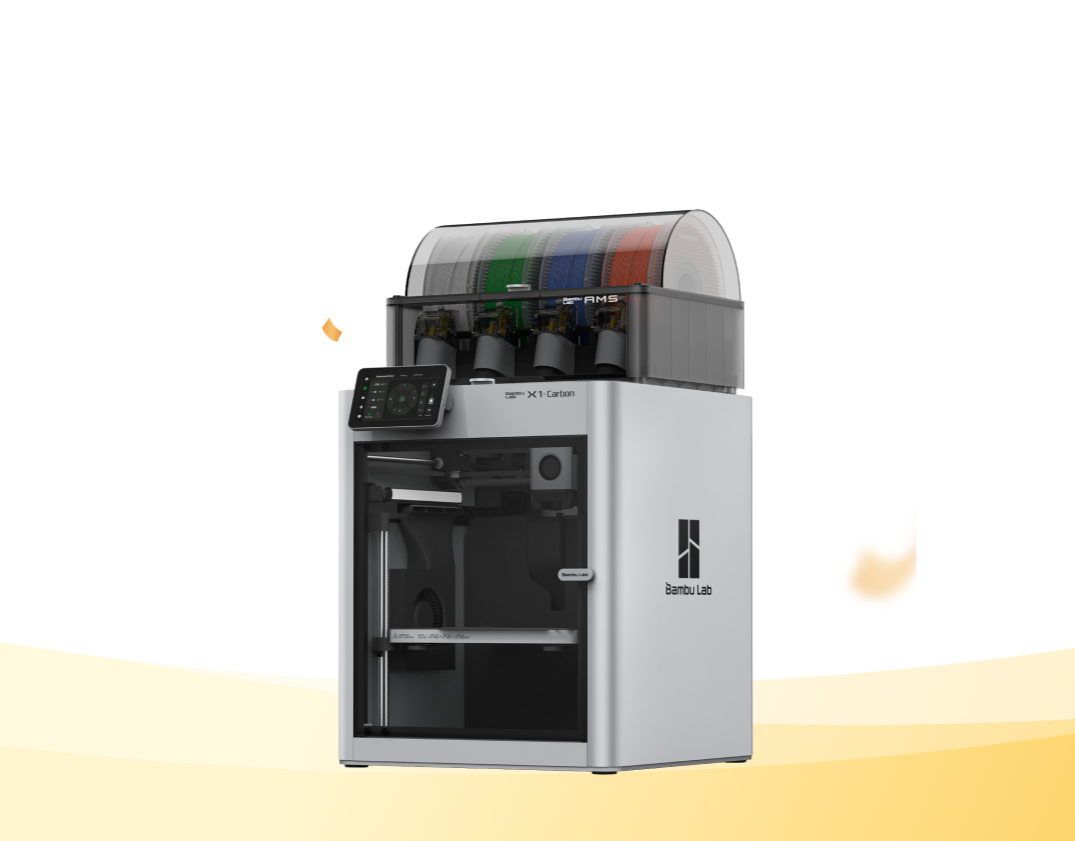

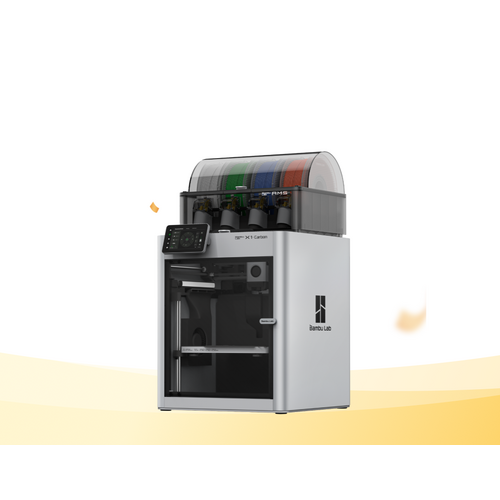

BAMBU LAB CARBON X1 + AMS 2 PRO



Bambu Lab X1 Carbon Product Specifications



Includes Automatic Material System 2.0 PRO



Key Features:

  • Multi-Filament Management: Equipped with four independent filament slots, each featuring dedicated feeders with ceramic-reinforced inlets for durability.
  • Advanced Drying System: Incorporates dual drying modules with heaters and fans, achieving temperatures up to 65°C. An internal circulation system ensures uniform drying, while automated venting expels moisture effectively.
  • RFID Integration: Automatically recognizes Bambu Lab filaments via RFID, adjusting drying settings and tracking filament usage without manual input.
  • Humidity Control: Built-in humidity sensor and color-changing desiccant maintain optimal filament conditions.
  • Expandable Configuration: Supports up to four AMS 2 Pro units in parallel, enabling management of up to 16 filaments for complex, multi-color prints.





UNBOXING:

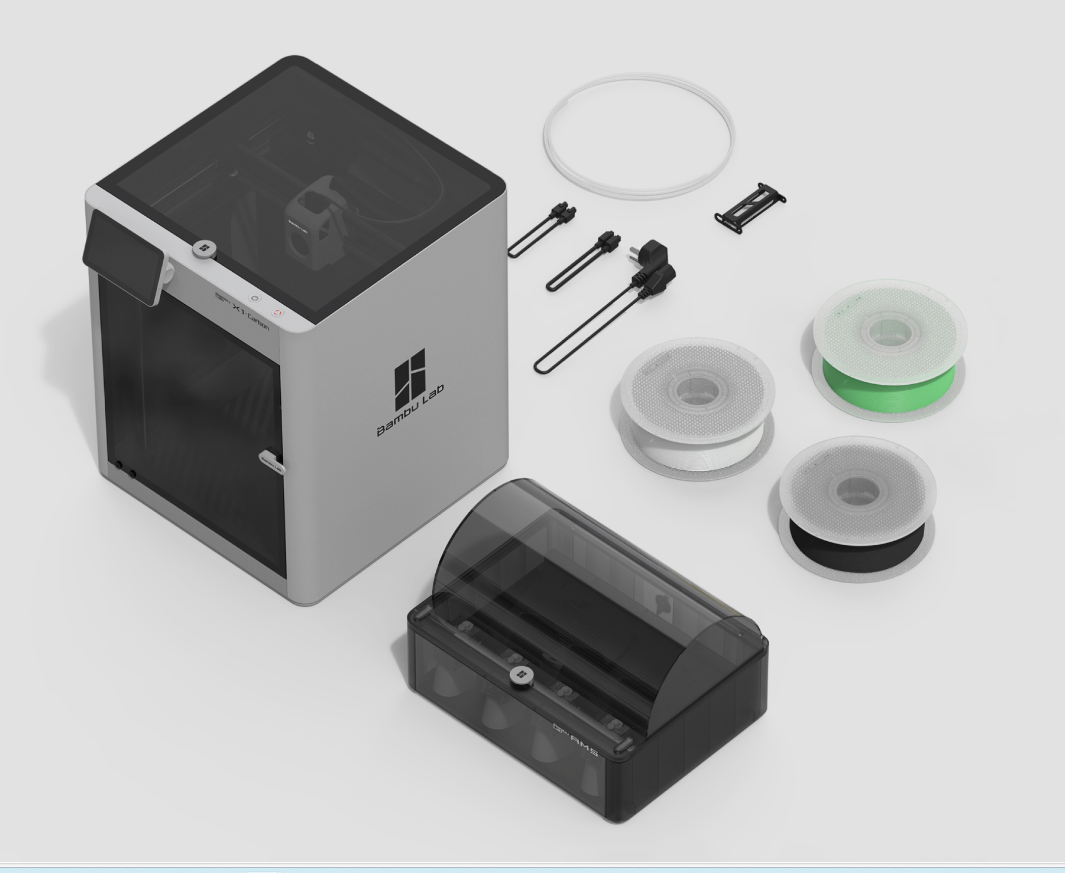

CONTENTS:

Bambu Lab Carbon X1 Box Contents

Bambu Lab Carbon X1

Bambu Lab X1 Carbon

Bambu Lab AMS

Bambu Lab AMS 2.0 Pro

Hotend with Hardened Steel Nozzle 0.4mm

Hotend with Hardened Steel Nozzle 0.4mm

Build Plate (random) boxed with either a textured PEI or smooth PEI

Spare Filament Cutter

Spare Filament Cutter

Nozzle Wiping Pad

Nozzle Wiping Pad

Glue Stick for Build Plate

Glue Stick for Build Plate

Bambu Scraper

Bambu Scraper

Unclogging Pin Tool

Unclogging Pin Tool

Bambu Filament

Bambu Filament

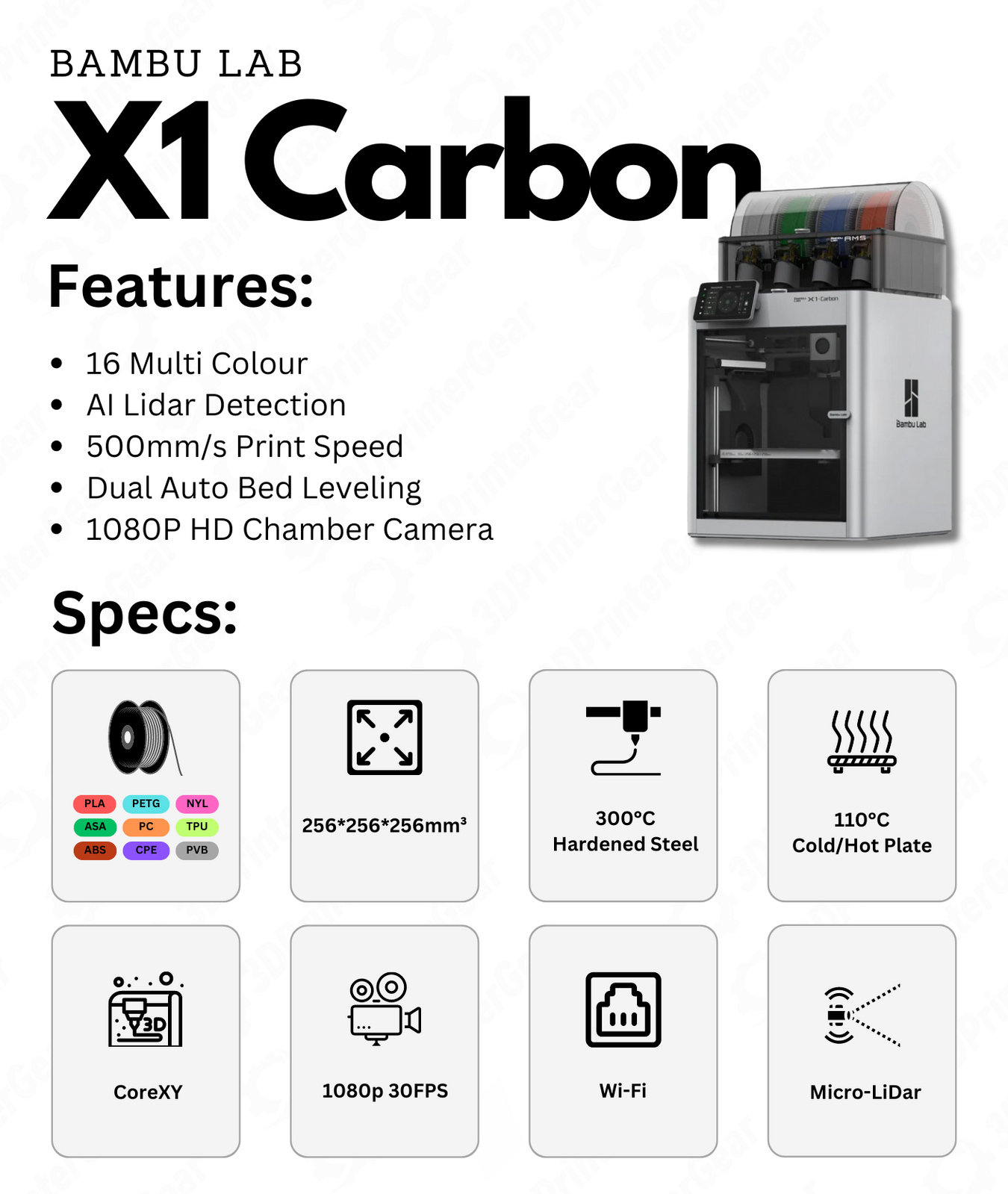

TECHNICAL SPECIFICATIONS

Build Volume 256 x 256 x 256mm
Nozzle All metal extruder with hardened steel nozzle
Filament Sensor Yes
Automatic Bed Levelling Yes, 7x7 mesh
Crash Detection: Yes
Filament diameter 1.75 mm
Supported materials Wide range of thermoplastics, including PLA, PETG, ASA, ABS, PC (Polycarbonate), CPE, PVA/BVOH, PVB, HIPS, PP (Polypropylene), Flex, nGen, Nylon, Carbon filled, Woodfill and other filled materials.
Max travel speed 500+ mm/s
Max nozzle temperature 300 °C
Max heatbed temperature 120 °C
Extruder Direct Drive
Print surface Double-sided - textured PEI or smooth PEI (random) - both compatible with lidar
Printer dimensions (without spool) 14 kg, 389mm x 389mm x 457mm
Power consumption P1000W @ 220V



Frequently Asked Questions



Q: What is the difference between the X1 Carbon and the P1P?

A: Both printers have the same chassis, carbon rods, and CoreXY design, making them very fast and stable. The X1 Carbon is a fully enclosed printer with a hardened steel nozzle that can print exotic materials like carbon fibre filament. It also includes a Lidar sensor for bed levelling and error detection. On the other hand, the P1P is a barebones printer with no covers and a stainless steel nozzle. It has a textured PEI sheet for the print bed, a touchpoint auto bed levelling system, and no filtration system. While both printers have similar print quality and speed, the X1 Carbon is better suited for high-temperature and abrasive materials, while the P1P is more suitable for printing with PLA, PETG or TPU



Q: Can I add an AMS unit to the Bambu Lab Carbon X1?

A: Yes, you can add an Automatic Material System (AMS) unit to your Bambu Lab Carbon X1 printer at a later stage (with a maximum of up to 4 units with the capability to print in 16 colours). The AMS is a small unit that sits on top of the X1 and feeds four rolls of filament into it. It allows you to print a single model with four different colours or to use different materials in the same build.



Q: Why is it cheaper on the Bambu Lab website?

A: At 3D Printer Gear, we provide local support and assistance, including in-house warranty and repair services. This means that if you encounter any issues with your printer or require printing assistance or advice, we can provide immediate support via phone, email, video chat or you are always welcome to bring your printer into our showroom. At 3D Printer Gear, we provide the added value of local support and assistance to ensure a hassle-free experience for our customers. You do not need to spend hours scouring the internet for help - we're here to provide you with design guidelines, help with slicing setup/optimisation, and offer general 3D printing advice for whatever your needs may be. We're not just a supplier, we're your partner in this 3D printing journey.



Why buy printers from "3D PRINTER GEAR"?

Since 2012, 3D Printer Gear is Australia's leading supplier of 3D printers, filaments, resins, and 3D scanners to Australian businesses, schools and hobbyists.

We are passionate about 3D printing Australia and the limitless opportunities additive manufacturing can provide to everybody. All our products go through rigorous testing in our in-house 3D printing farm before they are listed on our website so you also gain expert advice on 3D printing setup calibration and techniques.

From the home user working on their latest invention, mining and military applications or supplying the many schools and universities around Australia, our focus is to provide quality 3D printing material and expert 3D printing advice at a competitive price.



Shipping

  • Fast shipping to all Australian capital cities.
  • Pickup Avaliable from our Melbourne Showroom

(47676_AMS2PRO)

SKU 47676_AMS2PRO
Barcode # 6975337031000
Brand Bambu Lab
Shipping Weight 22.0000kg
Shipping Width 0.480m
Shipping Height 0.480m
Shipping Length 0.590m
Shipping Cubic 0.135936000m3
Unit Of Measure ea
