Product Parameters

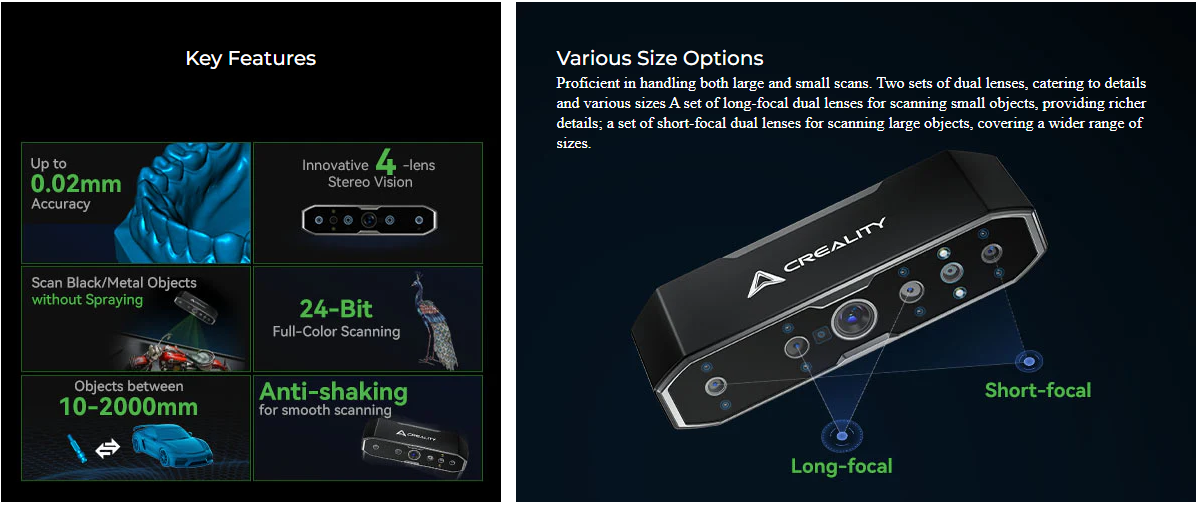

• Accuracy: Up to 0.02 mm @ 60 mm

• 3D Resolution: 0.05 – 2 mm

• Scanning Speed: Up to 20 fps

• Minimum Scan Volume: 10 mm × 10 mm × 10 mm

• Single Capture Range: Max. 1350 × 840 mm @ 1000 mm

• Technology: Infrared structured light

• Working Distance: 110 mm – 1000 mm

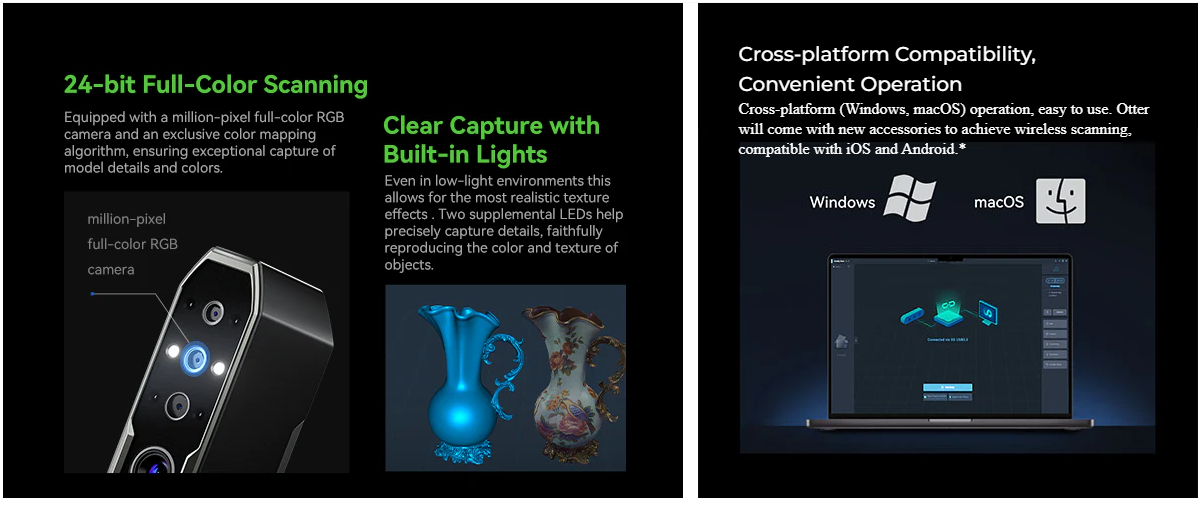

• Color Mapping: Yes

• Alignment Modes: Geometry / Marker / Texture

• Output Formats: OBJ / STL / PLY

• IMU (Inertial Measurement Unit): Yes

• Color Supplemental Light: 2 white LEDs

• Marker Recognition Enhancement: 8 infrared LEDs

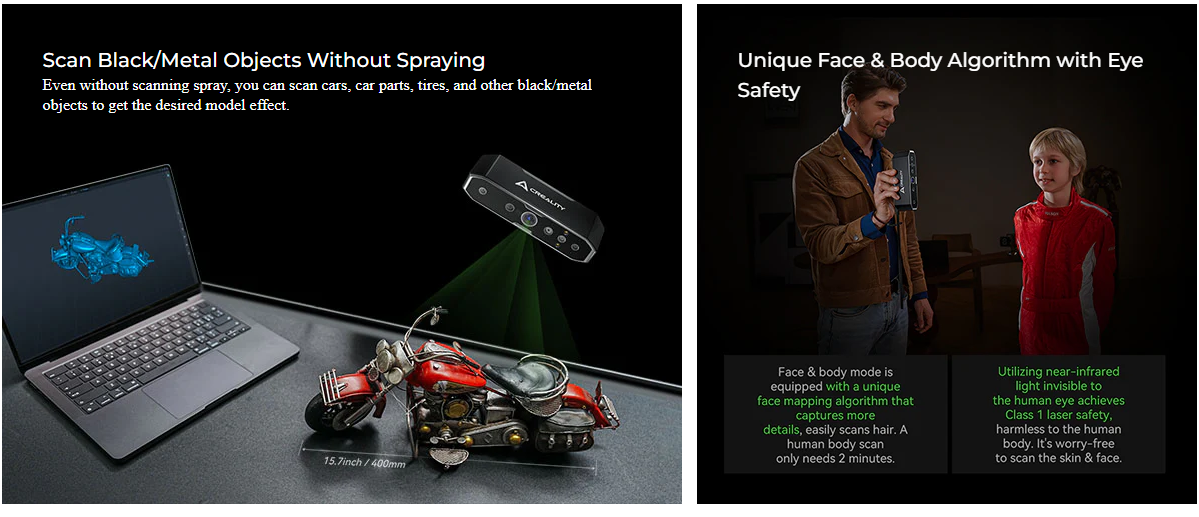

• Laser Safety: Class I (eye safe)

• System Support: Windows / macOS (Wireless scanning accessories required for iPhone iOS / Android)

• Wireless Scanning: Supported with future wireless scanning accessories

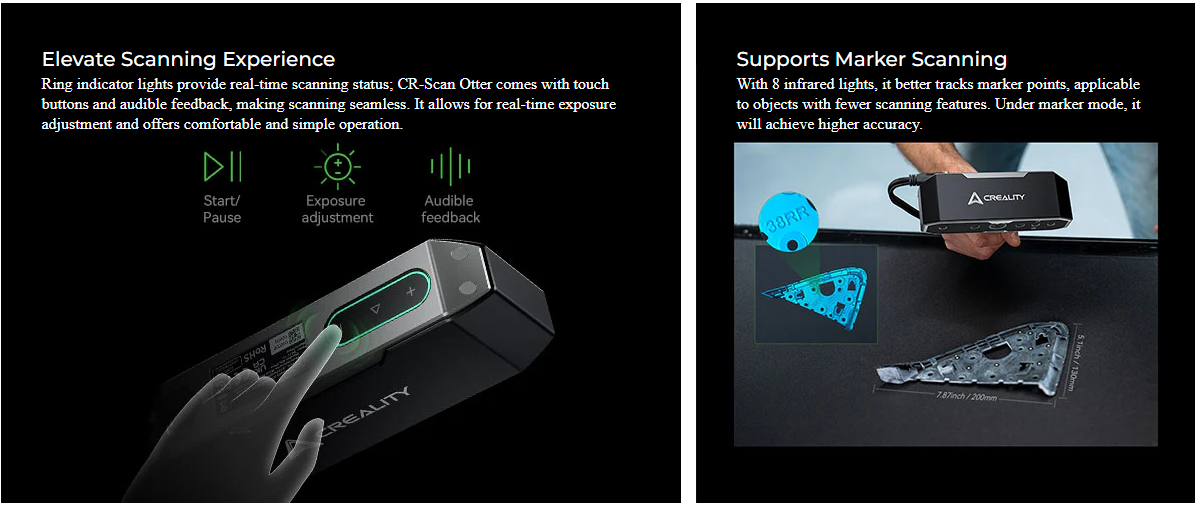

• Buttons: Touch

• Audible Prompt: Yes

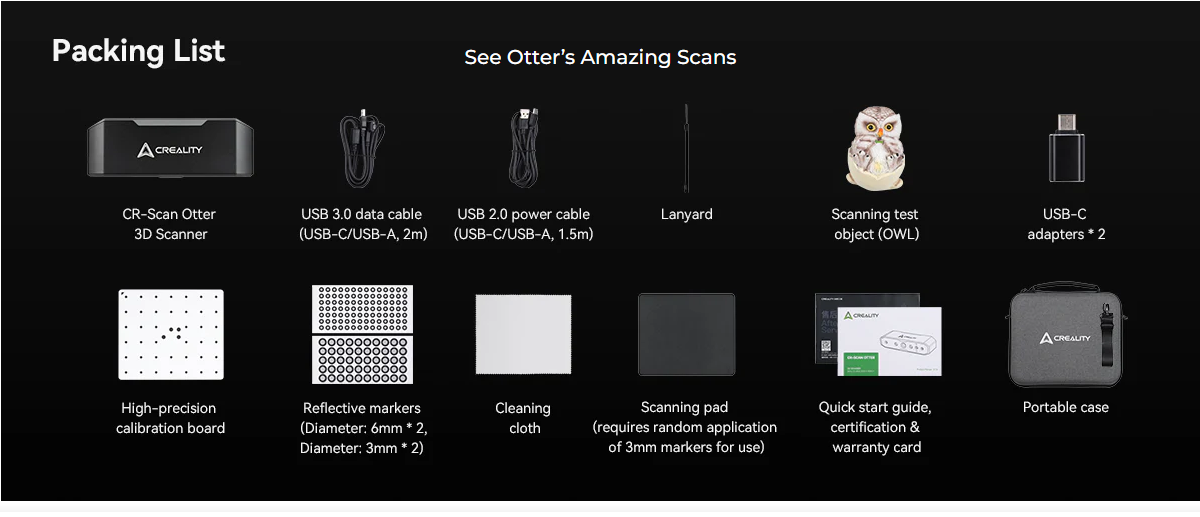

• Calibration Board: Yes

• Operating Temperature: -10°C to 40°C

• Operating Humidity: 0 – 90% RH

• Input Power: 5V / 3A

• Data Interface: Type-C / USB 3.0 / USB 2.0

• Device Dimensions: 165 mm × 37 mm × 59 mm

• Device Weight: 390 g
