Formlabs Custom Tray Resin

A fast-printing, biocompatible resin for producing highly accurate custom impression trays — delivering consistent definitive impressions with a clean, repeatable digital workflow.

Formlabs Custom Tray Resin cartridge
Application: Custom Impression Trays
Technology: SLA
Biocompatible: Class I
Validated layers: 100 µm (Form 4B/4BL) • 200 µm (Form 2/3B/3BL)

Important: For biocompatible use, follow the validated wash + post-cure workflow in the manufacturer documentation and use dedicated post-processing equipment as specified.

Production-ready custom trays — fast, accurate, and consistently repeatable

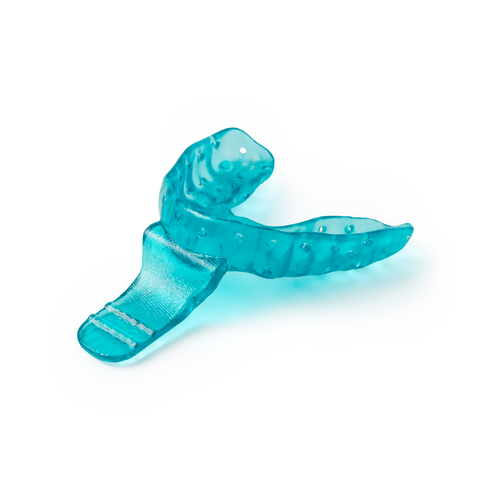

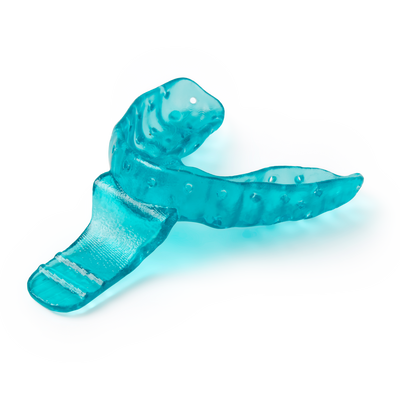

Custom Tray Resin is a fast-printing biocompatible material used to directly print custom impression trays for implants, dentures, crowns and bridges, and other comprehensive cases. Digitally manufactured trays provide consistent definitive impressions with a streamlined workflow.

Print full impression trays quickly to reduce labour time and increase throughput — while maintaining the accuracy needed for high-quality dentistry.

Authorised Formlabs Reseller
Validated workflow: Print + Wash + Post-cure

Why Choose Custom Tray Resin?

High Throughput

Print full trays quickly to reduce labour time and increase production capacity.

Accurate, Repeatable Impressions

Digitally manufactured trays support consistent definitive impressions for high-quality results across cases.

Made-to-Measure Fit

Patient-matched trays help you deliver an efficient workflow for complex crown/bridge, implant, and denture cases.

Validated Biocompatible Workflow

A fully documented print + wash + cure process with dedicated equipment requirements for compliance.

Applications

Custom Tray Resin is designed to directly print custom impression trays for comprehensive restorative cases — including implants, dentures, crowns and bridges.

Consider Custom Tray Resin for:

  • Custom impression trays for crown & bridge workflows
  • Implant impressions and complex restorative cases
  • Denture and comprehensive cases where tray fit and repeatability matter

Tip: For best results, design to dental tray guidelines (wall thickness, handle thickness, and retention features) and keep the intaglio surface facing away from the build platform.

Material Properties

Property Value
Ultimate Tensile Strength > 70 MPa
Young’s Modulus > 2500 MPa
Elongation at Break > 3%
Flexural Strength ≥ 100 MPa
Flexural Modulus ≥ 2600 MPa
Hardness Shore D > 80D

*Note: Properties depend on validated post-processing. Follow manufacturer documentation for washing, drying, curing, and disinfection compatibility.

Workflow Overview

Custom Tray Resin uses a validated Print + Wash + Post-cure workflow. For biocompatibility compliance, use dedicated equipment (build platform and wash setup) that is not mixed with other resins.

  • Print using the recommended preset for your printer and validated layer thickness.
  • Wash in ≥99% IPA (e.g., 10 minutes in a validated wash unit) until clean.
  • Air dry completely (at least 30 minutes).
  • Post-cure using a validated cycle (e.g., 30 minutes at 60°C in Form Cure).
  • Finish supports carefully and inspect for cracks before clinical use.

Compliance note: Do not exceed wash durations, and follow IFU/manufacturing guide instructions to maintain dimensional accuracy, biocompatibility, and long-term performance.

FAQ

1) What is Custom Tray Resin used for?

Direct 3D printing of custom impression trays for implants, dentures, crowns and bridges, and other comprehensive cases.

2) Do I need dedicated post-processing equipment?

Yes — for biocompatibility compliance, use a dedicated build platform and dedicated wash setup (and follow the validated curing process) as specified in the manufacturer documentation.

3) Which layer heights are validated?

Validated guidance includes 100 µm on Form 4B/4BL and 200 µm on Form 2/3B/3BL (see the Manufacturing Guide for full details).
