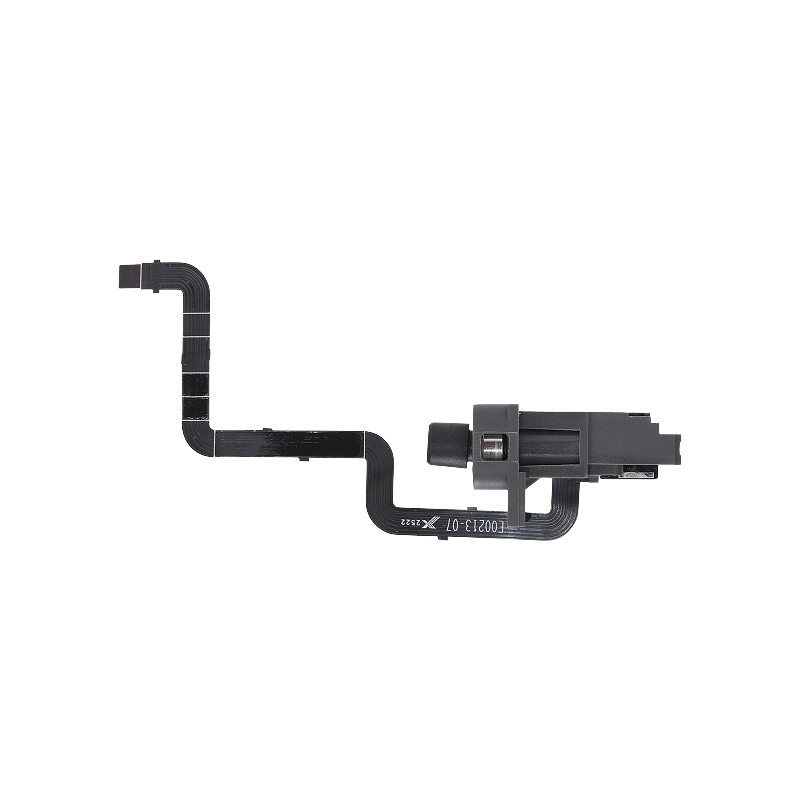

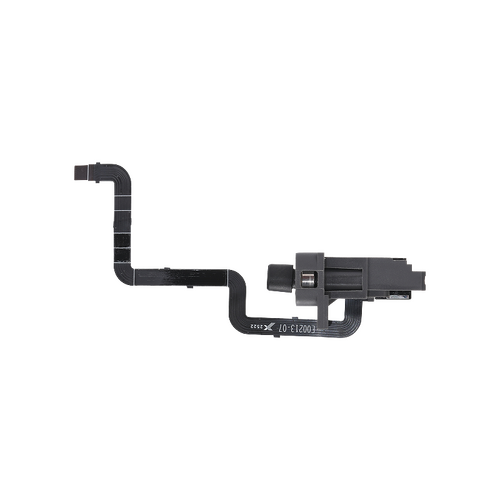

Bambu Lab Extruder Filament Sensor H2S [FAC142]

The Bambu Lab Extruder Filament Sensor is a Hall-effect detection module installed in the extruder assembly of your H2S printer. It accurately detects both the presence of filament and the position of the filament cutter lever, ensuring reliable filament handling and automatic error detection.

Compatible With:

• H2S

SKU Number:

• FAC142

Included in the Box:

• Hall Effect Board Assembly × 1
• BT2.6-6 Screws × 2

Product Specifications:

• Materials: Plastic and Metal
• Color: Black
• Packaging Size: 60 × 60 × 30 mm
• Packaging Weight: 0.02 kg

Installation & Maintenance Tips:

1. Always power off and unplug your H2S printer before starting any maintenance. :contentReference[oaicite:2]{index=2}
2. Press the pneumatic connector to remove the PTFE tube.
3. Use an H2.0 Allen key to remove the two sensor mounting screws, and carefully lift out the sensor—handle the flat FPC cable gently to avoid damage. :contentReference[oaicite:3]{index=3}
4. To install, screw in the Hall Effect board assembly using the included screws, connect the cable, ensuring the FPC cable is secured but not pinched. :contentReference[oaicite:4]{index=4}

Why Choose This Genuine Bambu Lab Part?

• Designed specifically for reliable compatibility with H2S toolheads.
• Includes all necessary hardware for installation.
• Helps ensure accurate filament sensing and clean cutter lever detection—vital for seamless printing and AMS operations.

Available at 3D Printer Gear, your trusted supplier of authentic Bambu Lab parts in Australia. Visit us at 781 High Street, Reservoir, Victoria.
