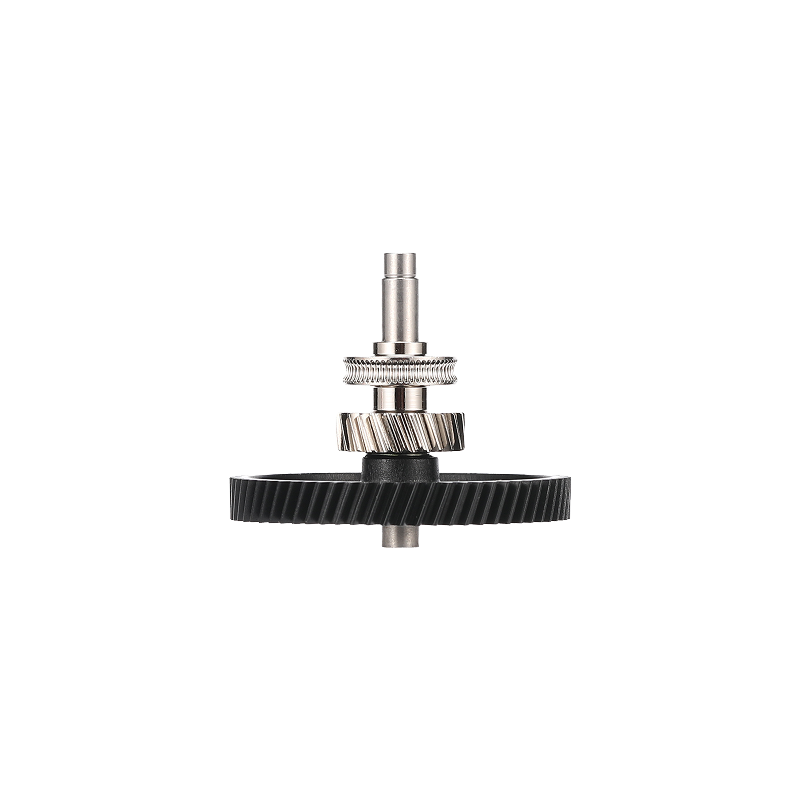

Bambu Lab Extruder Gear Assembly for H2S [FAE033]

The Bambu Lab Extruder Gear Assembly is a precision component designed to advance and control filament movement within the H2S extruder. Built to ensure smooth, reliable printing and facilitate filament changes with ease.

Compatible With:

• H2S

SKU Number:

• FAE033

Key Features:

• Precisely advances filament to ensure smooth extrusion.
• Enables reliable filament retraction and swapping.
• Designed for quick replacement if worn or clogged.

Installation & Maintenance Tips:

• Always turn off and unplug your H2S printer before performing maintenance.

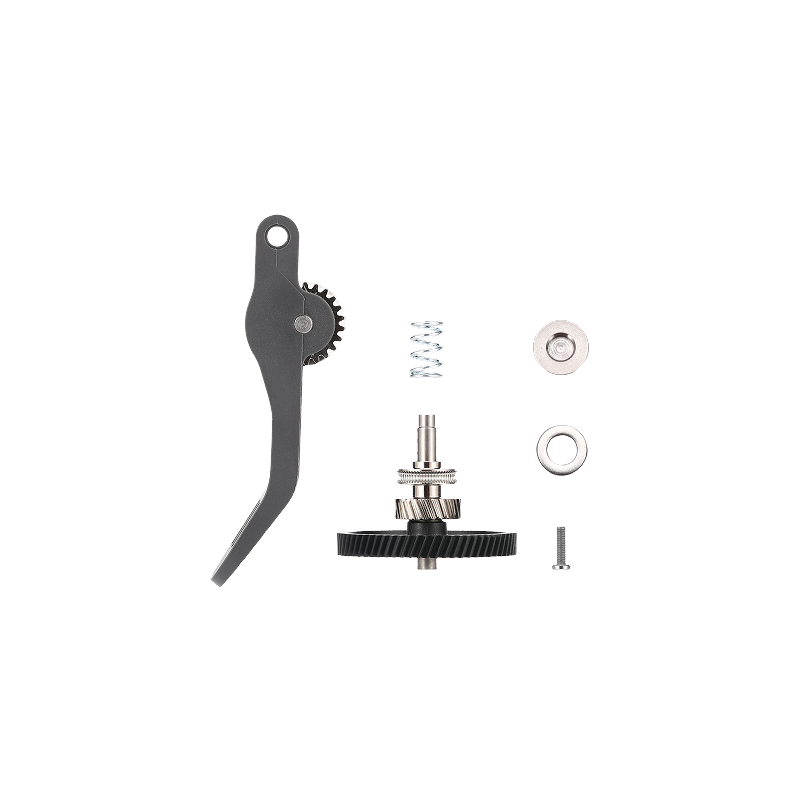

• Remove the front cover, then use an H2.0 hex key to remove the side screw securing the driven-wheel bracket—take care to retain the internal spring and end cap during disassembly.
• Gently pull out the extruder gear assembly for replacement.
• To reinstall: place the spring and end cap correctly, pre-lock the side screw lightly (2–3 turns), reattach the front cover, tighten all screws, and reconnect the filament sensor—ensuring the FPC cable is routed smoothly and not pinched.

Why Choose This Genuine Bambu Lab Part?

• Built for perfect compatibility with H2S toolhead mechanics.
• Easy to service, reducing downtime from clogs or wear.
• Helps maintain accurate filament feed for consistent print quality.
• Compact and lightweight—ideal as a spare or for quick installation.

Available from 3D Printer Gear, your trusted source for genuine Bambu Lab spares in Australia. Visit us at 781 High Street, Reservoir, Victoria.
