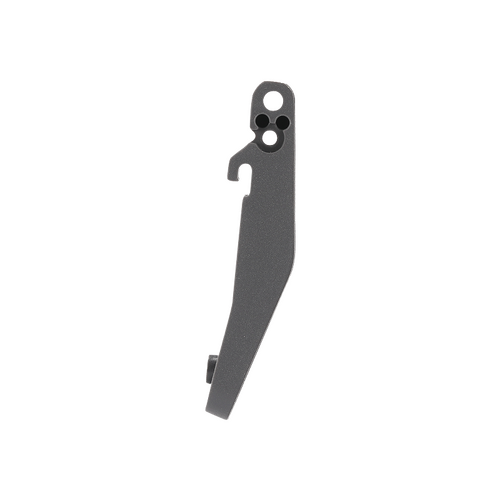

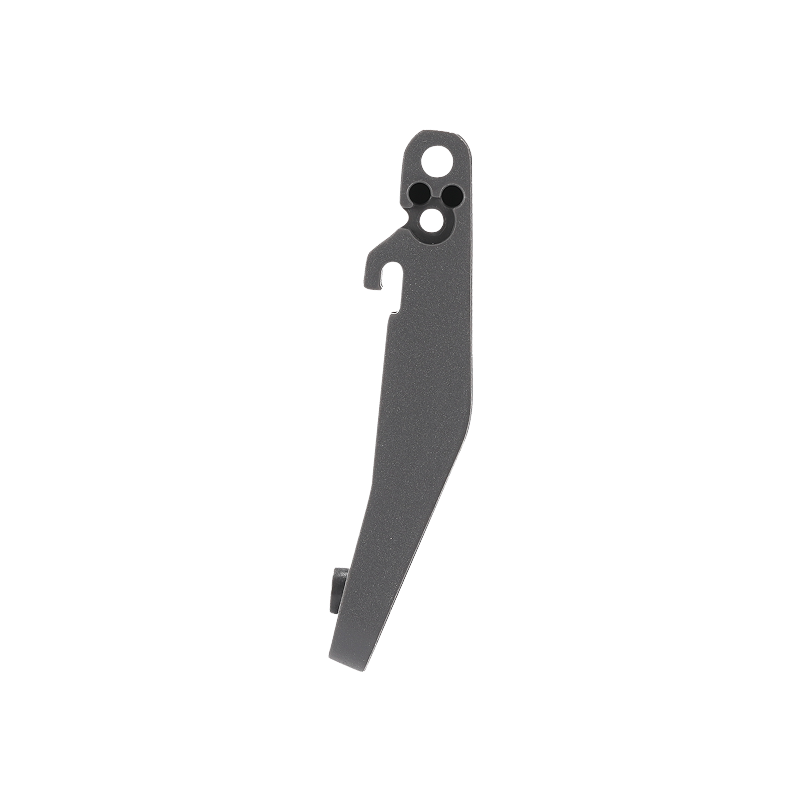

Bambu Lab Filament Cutter Lever for H2S [FAC143]

The Bambu Lab Filament Cutter Lever is a critical component that holds and actuates the cutter blade to cleanly slice filament during unloading or filament changes. It ensures precise filament handling and supports trouble-free operation of prints.

Compatible With:

• H2S

SKU Number:

• FAC143

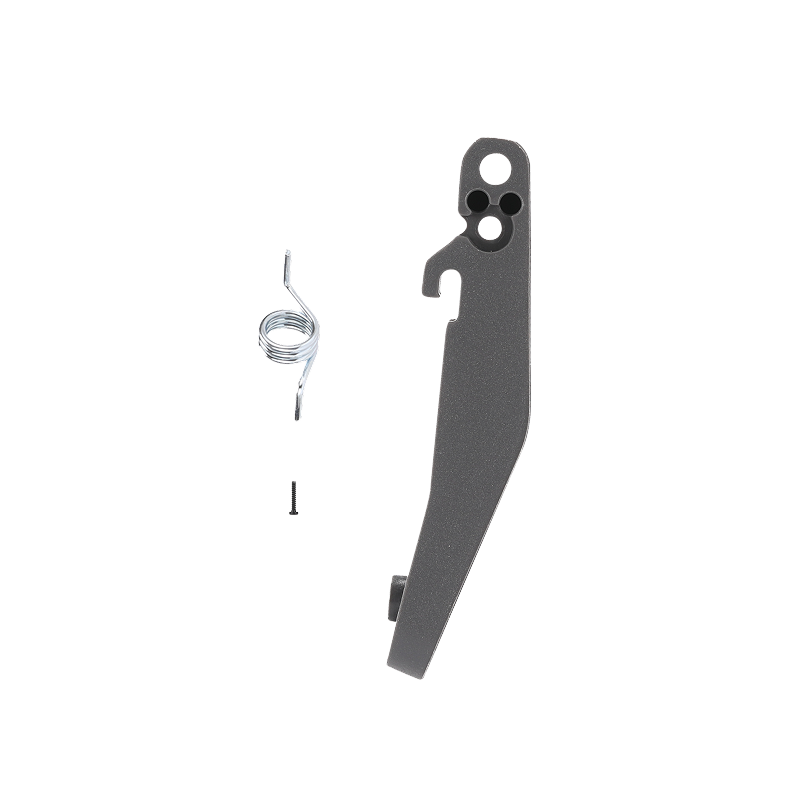

Includes in the Box:

• Filament Cutter Lever × 1
• Torsion Spring × 1
• BT2.6 Screw × 1
• Washer × 1
• Retaining Clip (Snap Ring) × 1

Product Specifications:

• Materials: Plastic and Metal
• Color: Grey and Black
• Packaging Size: ~60 × 60 × 30 mm
• Packaging Weight: ~0.017 kg

Installation & Maintenance Tips:

Ensure the printer is powered off and unplugged before servicing. To replace the filament cutter lever:

1. Remove the toolhead front cover and the extruder filament sensor carefully to avoid damaging the ribbon cable.
2. Loosen the side idler tension screw slightly and remove the four screws securing the extruder unit front cover. Then remove the front cover.
3. Press the snap ring to remove it, and then remove the washer and lever.
4. Install the new lever in the sequence: lever → washer → snap ring, then secure it with the BT2.6 screw.
5. Reattach the front cover, fix the filament sensor base and PTFE tube, reinstall the nozzle and front cover, then test to ensure the lever rebounds smoothly without sticking.

Why Choose This Genuine Bambu Lab Part?

• Precisely engineered for seamless compatibility with the H2S extruder assembly.
• Includes all necessary components for direct, straightforward installation.
• Critical for maintaining precise filament cuts—key for automatic loading and AMS functionality.
• Compact design makes it easy to keep as a spare or quickly replace when needed.

Available through reputable retailers like 3D Printer Gear in Australia—your go-to source for authentic Bambu Lab parts and accessories.
