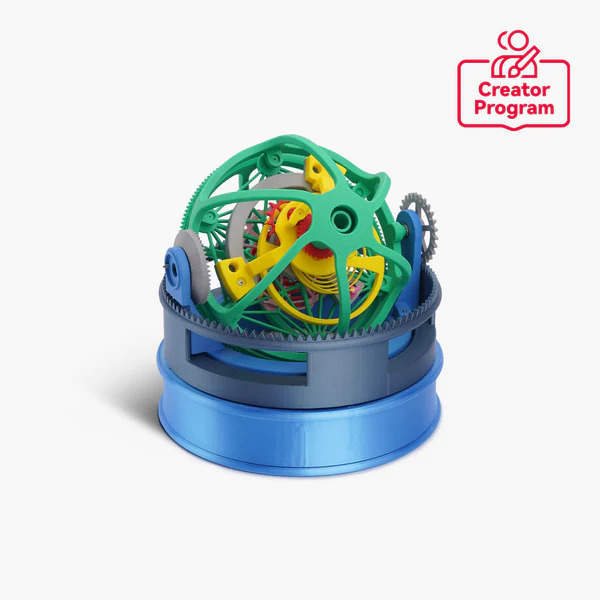

3D Printable Triple-axis Tourbillon Model Kit



The Triple-axis Tourbillon Model Components Kit contains all the necessary hardware components for assembling a Triple-axis Tourbillon Model. To complete the assembly for an entirely functional piece, users also need to download the model files and 3D print the remaining parts.



Model	Creator	Model Link
Triple-axis Tourbillon Model	mcmaven	TT Furious Tourbillon



To download the model files of Triple-axis Tourbillon Model and obtain detailed information, please visit the Triple-axis Tourbillon Model on MakerWorld.





Installation

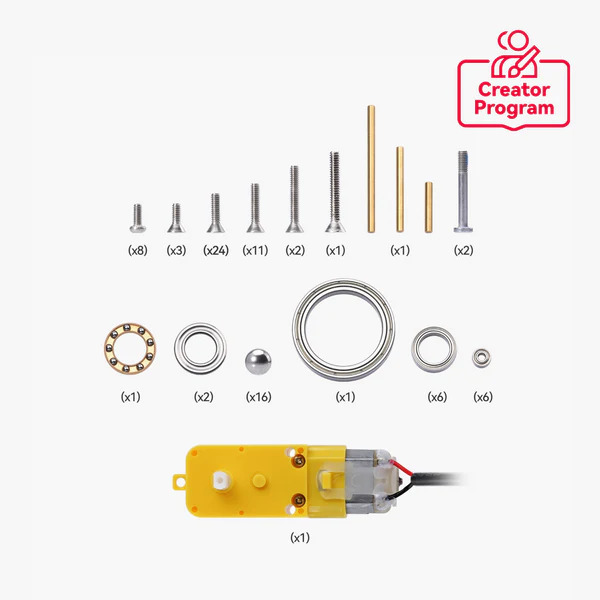

In the Box

Item	Qty
M2x6 FHCS (Machine Screw)	3 PCS
M2x8 FHCS (Machine Screw)	24 PCS
M2x10 FHCS (Machine Screw)	11 PCS
M2x12 FHCS (Machine Screw)	2 PCS
M2x14 FHCS (Machine Screw)	1 PCS
M2.5x6 BHCS (Machine Screw)	8 PCS
M3x23 SHCS (Machine Screw)	2 PCS
MR52 Steel Deep Groove Ball Bearing	6 PCS
6704 Steel Deep Groove Ball Bearing	1 PCS
F8-14M Miniature Plane Thrust Ball Bearing	1 PCS
MR128 Steel Deep Groove Ball Bearings	6 PCS
6mm Stainless Steel Ball	16 PCS
2*13 mm Brass Dowel Pin	1 PCS
2*22 mm Brass Dowel Pin	1 PCS
2*32 mm Brass Dowel Pin	1 PCS
TT Motor (DC5V 59RPM CCW Single Axis)	1 PCS



Notes

1. Please power the device using a USB power supply with the specified voltage.

2. Please test the operation of the mechanism by rotating the control handle before powering. After powering, verify the operational status of the motor and be cautious to prevent motor blockage.

3. It is recommended to use indoors at room temperature.



Product Specifications

Packaging Size	100*69*35 mm	Product Weight	79 g
Voltage	DC 5V	Gross Weight	93 g
