• 4-zone heated bed for more efficient warmup and power usage on big plates
• One-click auto-leveling using a non-contact sensor for consistent first layers
• Optional multi-nozzle upgrades for printing multiple parts at once
• Wi-Fi / USB / LAN file transfer and common model formats (STL, OBJ)
• Detachable 10.1" touchscreen for convenient operation

Large-format printing for oversized parts and assemblies.

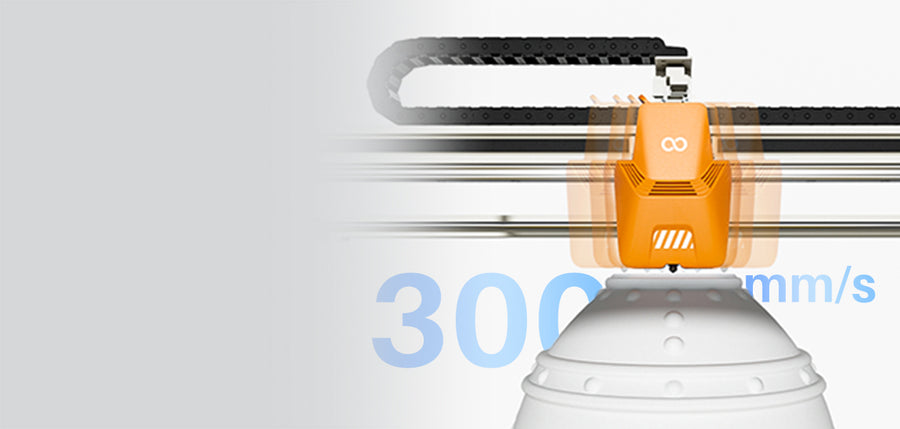

Fast Motion System

Built to keep large prints moving — with a max toolhead speed up to 300 mm/s (150 mm/s recommended) and a controller designed to handle the demands of big-format kinematics.

Efficient 4-Zone Heated Bed

The bed is split into four independent 410 × 410 mm PEI magnetic plates (up to 100°C). Heat the entire surface when you need it — or heat only the zone you’re printing on for better efficiency.

High-Temp, Consistent Extrusion

A 300°C capable hotend (0.6 mm nozzle included; 0.4/0.8/1.0 mm optional) plus PID auto-calibration and an acceleration sensor to help maintain temperature control and reduce vibration artifacts.

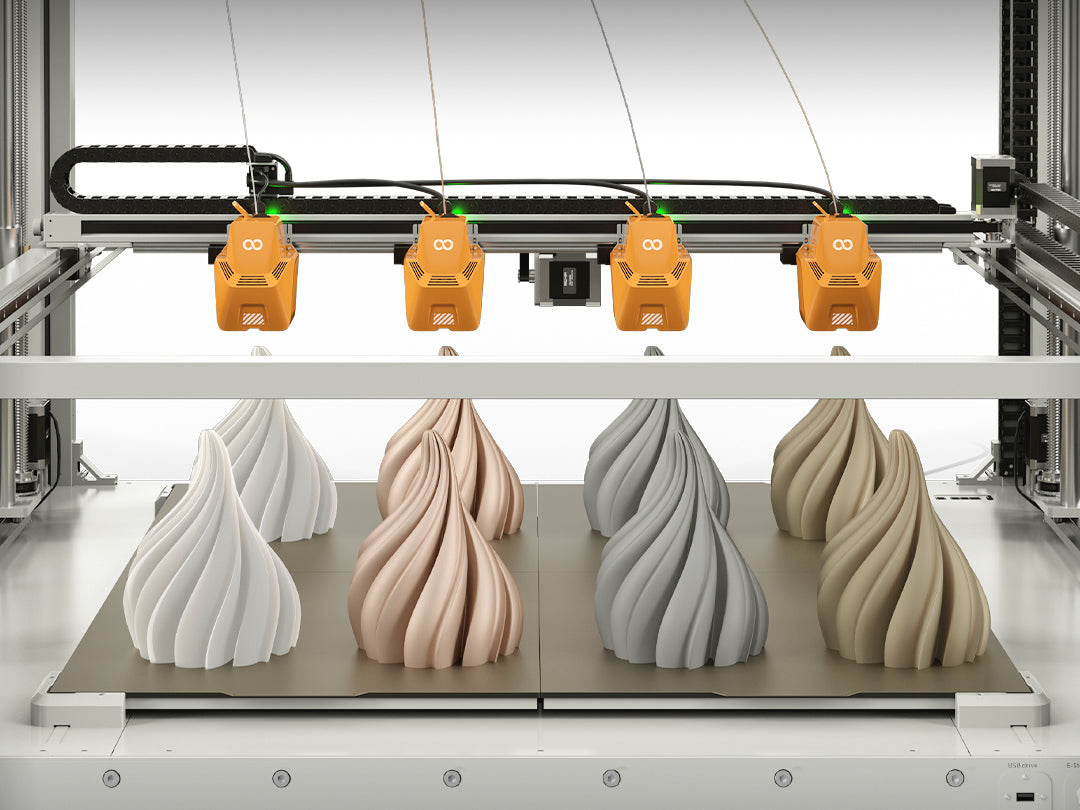

Modular Multi-Nozzle Throughput

Scale output by adding up to three additional printheads on the X-axis (up to four nozzles total) — ideal for printing multiple parts at once or producing the same part in parallel.

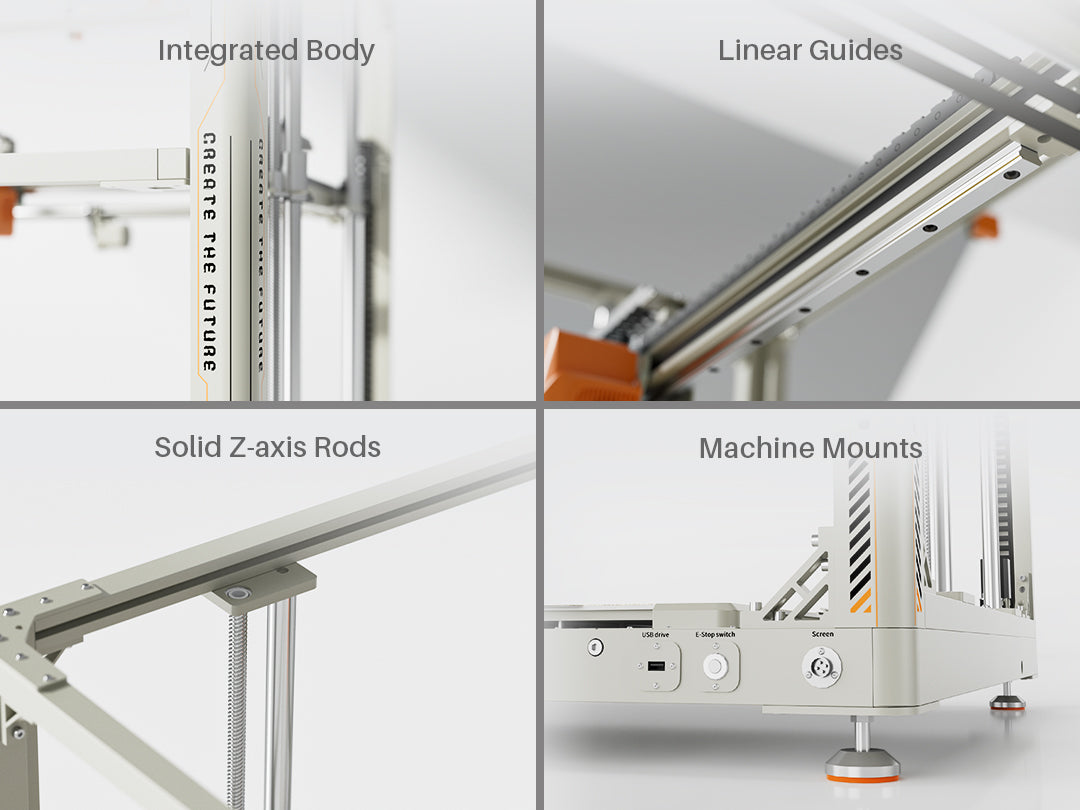

Rigid Frame + Linear Guides

Built with an integrated body design and linear guide motion system to improve stability and lifespan — important when printing tall parts and long toolpaths.

From model to oversized part

• Prepare: Slice in your preferred workflow (supports STL/OBJ inputs), choose nozzle size, and set large-format supports/brims as needed.
• Level: Run one-click auto-leveling to dial in first-layer consistency across a big platform.
• Print: Heat only the required bed zones and start the job (resume print + filament detection supported).
• Scale output: Add printheads later if you want parallel printing throughput.

Filament compatibility

Official compatibility is listed for PLA / PETG / TPU. With a 300°C hotend, additional materials may be possible depending on profile support and environment (enclosure, drying, etc.).

Operator-friendly controls

A detachable 10.1" HD capacitive touchscreen helps with day-to-day operation, with model preview support and multi-language UI.

Props + Cosplay + Set Builds

• Print oversized shapes in fewer parts
• Reduce seams, joins, and alignment headaches

Ideal when you want big, visual-impact parts that don’t need to be split into a dozen pieces.

Prototyping at Full Scale

• Validate ergonomics, fit, and assembly at 1:1
• Rapidly iterate large housings and fixtures

Best for product teams that need full-size evaluation without machining lead times.

Education + Makerspaces

• Big platform for class projects and demonstrations
• Simple workflow with auto-leveling + resume printing

A standout for STEM labs that want “wow factor” prints without complex day-to-day operation.

Why teams choose OrangeStorm Giga

• Massive capacity: 800 × 800 × 1000 mm build volume for oversized parts.
• Smarter heating: 4-zone PEI bed up to 100°C, with automatic zone recognition and independent control.
• Throughput options: upgrade to multi-nozzle printing (up to 4 heads) for parallel output.
• Stability-first build: linear guides and rigid frame design for large-format repeatability.

What our team likes

• Heating only the zone you’re printing on — helpful when you’re not using the full platform
• Optional nozzle sizes (0.4 / 0.6 / 0.8 / 1.0) to balance detail vs. speed
• Modular upgrades that let you scale output over time

Note: Large-format printers require adequate floor space and power planning. Ask us about freight delivery, installation considerations, and recommended accessories for your workflow.

In the box (typical)

• OrangeStorm Giga printer + printhead
• 10.1" touchscreen
• Spool holder components
• Filament detection hardware
• Tools / fasteners / power cable

Contents can vary by bundle (printer-only vs. upgrade packages). If you’re planning multi-nozzle operation or specific nozzle sizes, let us know and we’ll quote the right kit.

Popular options

• Dual / quad printhead upgrade kits (for parallel printing)
• Alternate nozzle sizes: 0.4 / 0.8 / 1.0 mm
• Large spools (the printer design supports spools up to 5 kg)

1) How big is the OrangeStorm Giga?

It offers an 800 × 800 × 1000 mm build volume and a large PEI platform area split into four independent heated zones.

2) What’s the benefit of the 4-zone heated bed?

You can heat the entire platform for full-bed prints, or heat only the zone you’re using for better efficiency and faster readiness.

3) Can it print multiple parts at once?

Yes — it supports optional multi-nozzle upgrades, allowing up to four printheads for parallel printing.

4) What nozzle sizes are available?

0.6 mm is included. Optional nozzles include 0.4 / 0.8 / 1.0 mm for finer detail or higher throughput.

5) What file transfer options does it support?

Wi-Fi, USB, and LAN are supported. Common model formats include STL and OBJ.

6) What’s the easiest way to choose the right configuration?

Tell us your target part sizes, materials, and throughput goals. We’ll recommend a practical setup (printer-only, nozzle options, and whether multi-nozzle upgrades make sense).
