Formlabs Color Kit (Form 4)

An integrated colour mixing solution for resin 3D printing—mix pigments into Color Base and print matte, opaque parts in a wide range of colours without the manual work of painting, dyeing, or finishing.

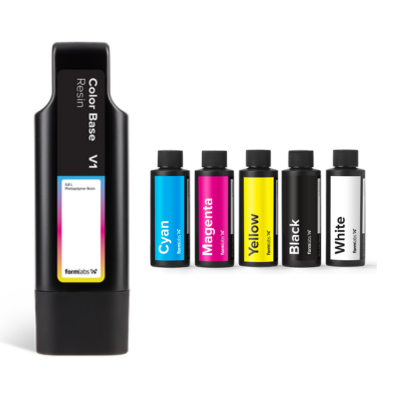

Formlabs Color Kit (Form 4) - Color Base cartridge
Application: Colour models / prototyping
Technology: SLA
Finish: Matte / opaque
Includes: Color Base + 5 pigments

Important: For best results, follow the Color Resin Recipe Book and Formlabs handling guidance (SDS/TDS). Mix thoroughly before printing and keep resin handling PPE consistent with your workplace requirements.

Print in colour—no painting, dyeing, or finishing

Color Kit is Formlabs’ integrated colour mixing system for the Form 4 ecosystem. Combine Color Base with the included pigments to produce clean, matte, opaque parts in a wide range of colours—ideal for concept models, presentation prototypes, props, and “looks-like” parts.

With consistent colour throughout the part (not just on the surface), you can iterate faster and deliver models that look closer to the final product—straight off the printer.

Authorised Formlabs Reseller
Form X Material: Colour workflow

Why Choose Formlabs Color Kit (Form 4)?

Integrated Colour—Less Finishing

Create colour parts without the manual work of painting, dyeing, or post-finishing—ideal for fast iteration and presentation-ready prototypes.

Consistent Colour Through the Part

Mix pigments into Color Base so colour is uniform throughout the print—helpful for handling, light sanding, and everyday prototyping wear-and-tear.

Wide Colour Range (Recipes + Custom)

Use the included Color Resin Recipe Book for repeatable results, and dial in custom shades by adjusting pigment ratios for your brand, model, or product line.

General Purpose Strength

Colour models that still behave like a solid general-purpose resin—stiff, strong, and capable of capturing fine features with a clean matte finish.

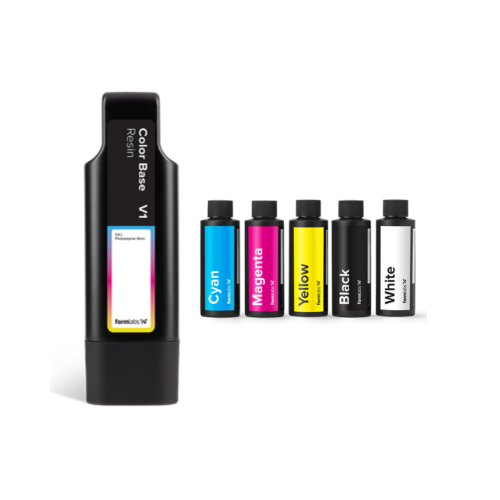

What’s Included

  • Color Base (Form 4 cartridge)
  • Cyan Pigment
  • Magenta Pigment
  • Yellow Pigment
  • Black Pigment
  • White Pigment
  • Color Resin Recipe Book

Tip: For consistent colour, mix thoroughly and follow the same method each time (measure, shake/stir, and allow bubbles to settle before printing).

Applications

Color Kit is ideal when colour matters for communication, review, or buy-in—without adding a finishing step to your workflow.

Consider Color Kit for:

  • Concept models and “looks-like” prototypes
  • Presentation parts for stakeholders and customers
  • Props, figurines, and display models
  • Colour-coded assemblies for testing and demos

Material Properties (Color Base Resin)

Property Value
Ultimate Tensile Strength 65 MPa
Tensile Modulus 2.6 GPa
Elongation 6%
Flexural Modulus 2.2 GPa
Notched Izod 25 J/m
Heat Deflection Temp @ 0.45 MPa 73 °C

*Note: Properties can vary with geometry, orientation, settings, and temperature. Always refer to Formlabs documentation for the latest validated data and handling guidance.

Workflow Overview

Color Kit is a mix + print + wash workflow (with optional post-cure typical of general purpose resins). For repeatable colour, measure accurately, mix thoroughly, and follow the Recipe Book guidance.

  • Mix pigments into Color Base using the Recipe Book (or your proven internal recipes).
  • Print using the recommended preset for your Form 4 ecosystem printer.
  • Wash to remove uncured resin from the surface.
  • Optional post-cure to reduce surface tack and improve mechanical properties (recommended for more demanding handling).
  • Light finish as needed (de-support, light sand) while maintaining the matte aesthetic.

FAQ

1) What finish does Color Kit produce?

Matte, opaque parts in a range of colours—without painting or dyeing.

2) What’s included in the kit?

Color Base cartridge, five pigments (CMYKW), and a Color Resin Recipe Book.

3) Do I need to post-cure?

Post-curing is often optional for general purpose resins, but recommended if you want reduced surface tack and improved mechanical performance.
