Formlabs White Resin V5 (Form 4)

An exceptionally bright, matte white General Purpose Resin for fast, accurate, presentation-ready prototypes — stiff & strong parts with crisp fine features and a reliable Form 4 workflow.

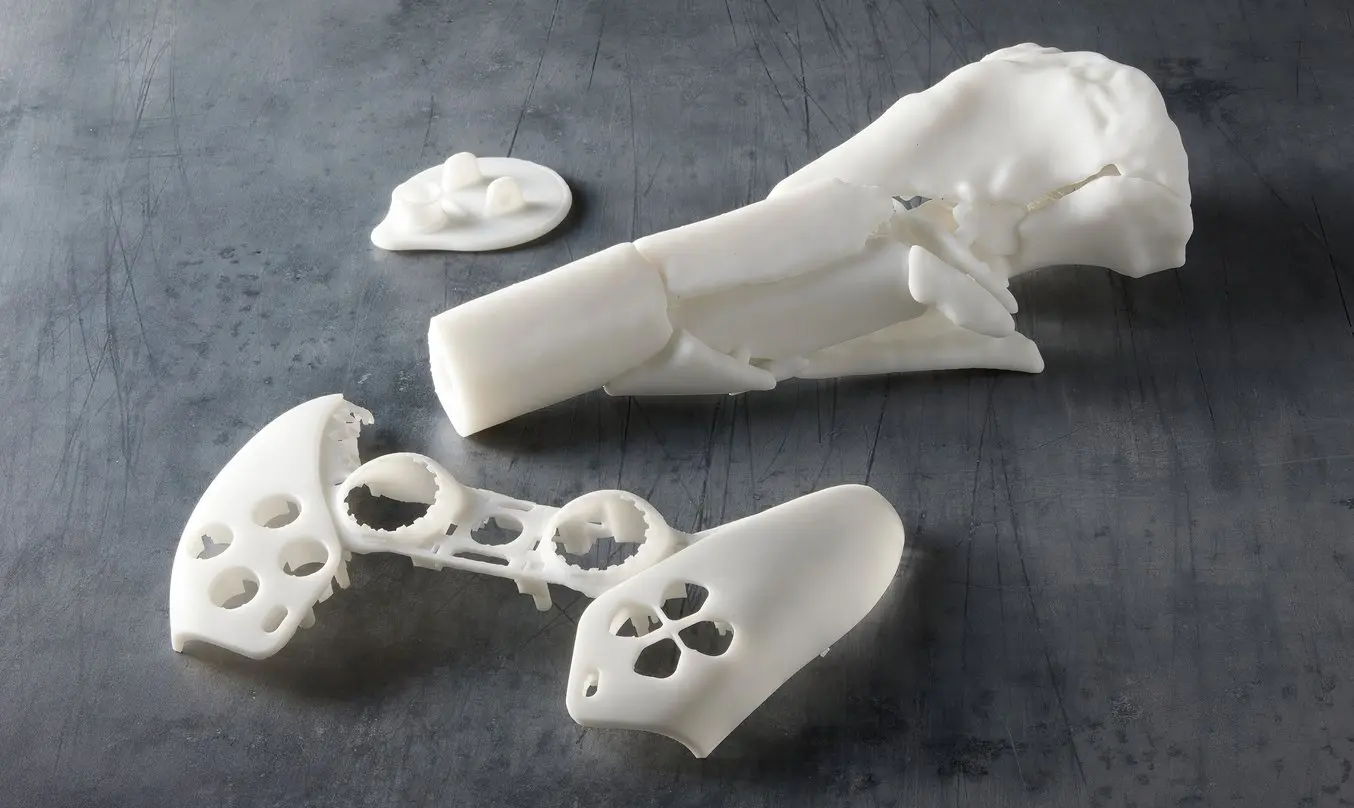

Formlabs White Resin V5 cartridge (Form 4 Series)
Application: Prototyping / Models
Technology: SLA
Finish: Bright matte white
Version: V5 (Form 4 Series)
Speed: 3× faster*
Low-odor

Workflow note: Post-curing is optional for General Purpose resins, but a short cure is recommended to reduce surface tack and improve mechanical properties.

Crisp, matte white prototypes — fast prints, accurate detail, and a clean “finished” look

White Resin V5 is an exceptionally bright white General Purpose Resin, balancing fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an give-it-to-anyone reliable workflow — optimised for the Form 4 Series.

Create stiff, strong parts with a surface finish that rivals injection molding. The bright matte shade captures fine features accurately and makes details easy to inspect, photograph, and present.

Genuine Formlabs Material
Optimised for: Form 4 Series

Why Choose Formlabs White Resin V5?

Highest Dimensional Accuracy

Achieve precise tolerances and resolve fine features — ideal for form & fit parts, assemblies, and detailed models.

Superior Aesthetics

A clean, matte white finish with crisp fine-feature performance — made for presentation-ready prototypes straight off the printer.

What’s New in V5

Designed for the Form 4 ecosystem to print 3× faster than the previous version, while delivering tougher parts and a brighter, crisper white.

Extremely Low-Odor Printing

Low VOC printing for a more comfortable workspace — ideal for studios, classrooms, labs, and offices.

Applications

White Resin V5 is built for day-to-day prototyping when you need dependable accuracy, clean detail, and a matte white finish that photographs well and shows features clearly.

Consider White Resin V5 for:

  • Form & fit prototyping (enclosures, assemblies, brackets)
  • Presentation-ready models with fine features and intricate details
  • Anatomical models where detail visibility matters
  • Jigs & fixtures for the workshop and production floor

Pro tip: If the part will see load, heat, or handling, a short post-cure improves stiffness and reduces tack.

Material Properties

Property Green Post-cured 5 min (ambient) Post-cured 15 min @ 60 °C
Ultimate Tensile Strength 46 MPa 54 MPa 62 MPa
Tensile Modulus 2200 MPa 2500 MPa 2675 MPa
Elongation at Break 22% 15% 13%
Flexural Strength 82 MPa 91 MPa 103 MPa
Flexural Modulus 2000 MPa 2450 MPa 2750 MPa
Notched Izod 36 J/m 34 J/m 32 J/m
HDT @ 1.8 MPa 47 °C 54 °C 59 °C
HDT @ 0.45 MPa 55 °C 62 °C 71 °C

*Note: Material properties may vary based on part geometry, orientation, settings, temperature, and post-processing. Refer to the Technical Data Sheet for validated conditions.

Workflow Overview

White Resin V5 follows a simple print + wash + (optional) post-cure SLA workflow. For best results, use compatible equipment and the validated wash + cure guidance.

  • Print using the recommended White Resin V5 preset on your Form 4 Series printer.
  • Wash to remove surface resin (validated example: 5 minutes in a Form Wash using ≥99% IPA).
  • Post-cure (recommended) to reduce surface tack and improve properties:
    • Fast turnaround: 5 minutes at room temperature
    • Enhanced properties: 15 minutes at 60 °C
  • Finish supports and surfaces as needed for presentation or functional use.

FAQ

1) What is White Resin V5 best for?

Fast, accurate prototypes and models with a clean matte finish — plus practical jigs & fixtures where you want stiff, strong parts.

2) Do I need to post-cure parts?

Post-curing is optional, but recommended to reduce tack and improve mechanical properties. Use a short ambient cure for speed, or a heated cure for maximum performance.

3) What changed from White Resin V4?

V5 is formulated for the Form 4 ecosystem to print faster and deliver tougher parts, with a brighter and crisper white appearance.
