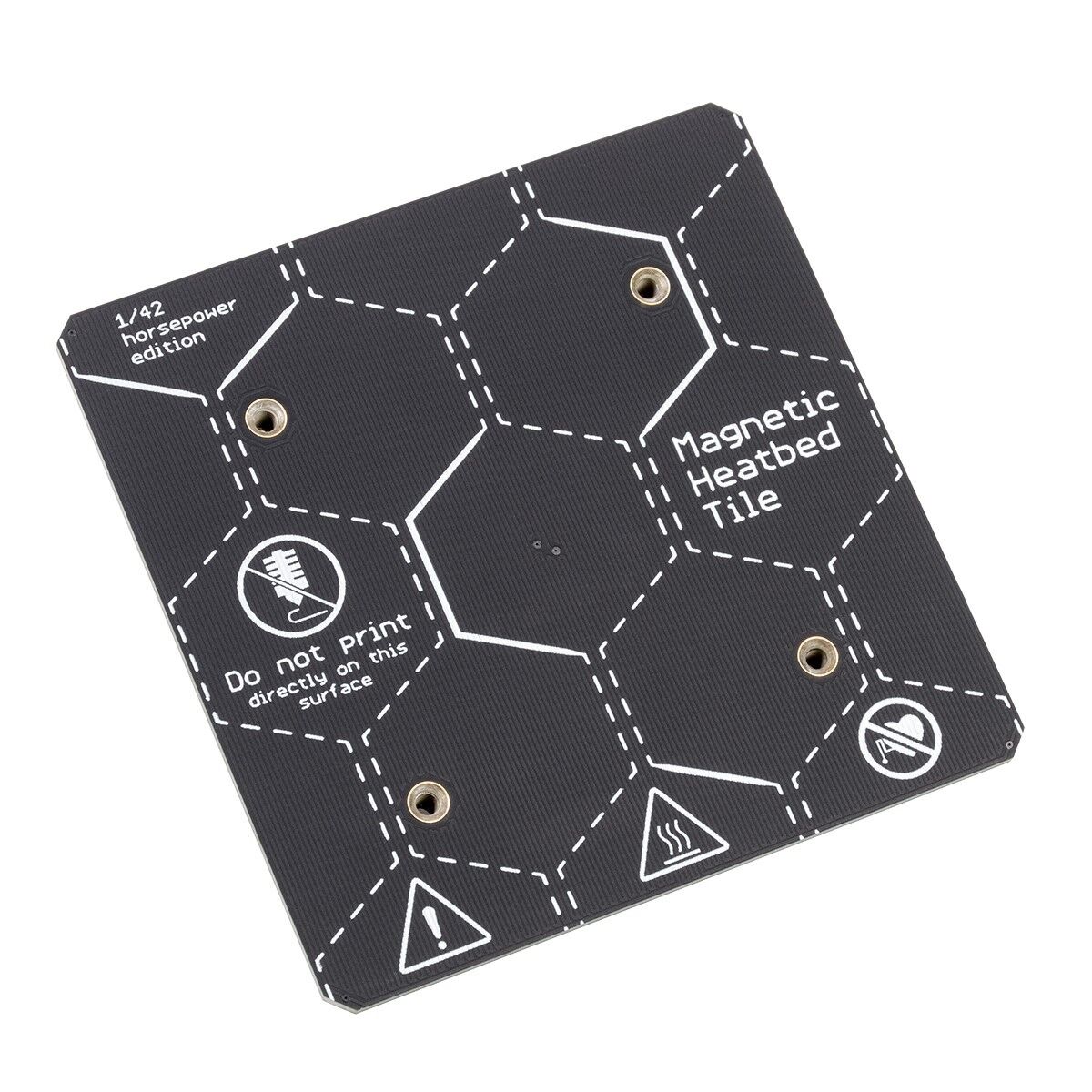

Prusa Heatbed tile

Replacement heatbed tile for the Original Prusa XL 3D printer, used to replace damaged tiles on the printer's heatbed.

Compatibility

  • Original Prusa XL

Not compatible

  • CORE One
  • CW1
  • CW1S
  • HT90
  • MINI
  • MINI Enclosure
  • MINI+
  • MK2
  • MK2.5
  • MK2.5S
  • MK2S
  • MK3
  • MK3.5
  • MK3.5S
  • MK3.9
  • MK3.9S
  • MK3S
  • MK3S+
  • MK4
  • MK4S
  • MKx Enclosure
  • MMU1
  • MMU2
  • MMU2S
  • MMU3
  • SL1
  • SL1S
  • XL Enclosure

What's included

  • Heatbed tile (1 pc)

Notes

  • The XL heatbed consists of 16 individual tiles.
  • Dimensions: 90 x 90 mm
  • Thickness: 2 mm ± 0.2 mm
  • Nominal voltage: 24 V
  • Nominal current: 1.44 A
  • Nominal resistance: 16 ? ± 15% at 25?°C
  • Thermistor: NTC, 100 k?
  • Maximum operating temperature: 125?°C

Installation

To install this part, visit the Prusa Knowledge Base at help.prusa3d.com and refer to the repair manual for your printer model.

(50221)

SKU 50221
Brand Prusa Research
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
