Prusa Magnetic heatbed MK52 24V (assembly)

Replacement magnetic heatbed assembly for selected Prusa 3D printers, operating at 24V.

Compatibility

  • MK3
  • MK3S
  • MK3S+

Not compatible

  • CORE One
  • CW1
  • CW1S
  • HT90
  • MINI
  • MINI Enclosure
  • MINI+
  • MK2
  • MK2.5
  • MK2.5S
  • MK2S
  • MK3.5
  • MK3.5S
  • MK3.9
  • MK3.9S
  • MK4
  • MK4S
  • MKx Enclosure
  • MMU1
  • MMU2
  • MMU2S
  • MMU3
  • SL1
  • SL1S
  • XL
  • XL Enclosure

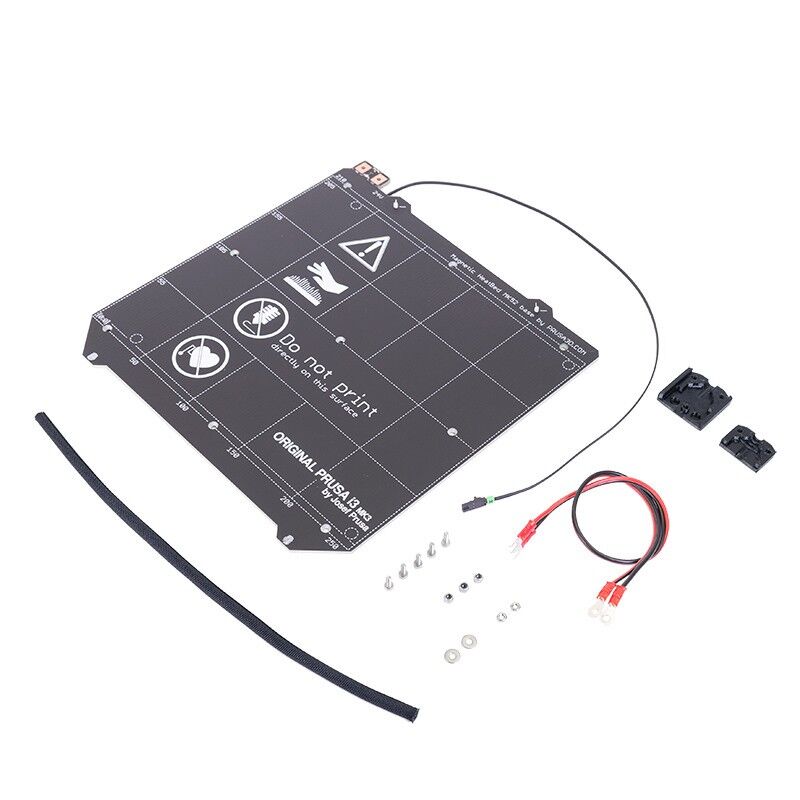

What's included

  • Magnetic heatbed MK52 24V (1 pcs)
  • Heatbed-Einsy power cable (screw-attached) (1 pcs)
  • Heatbed thermistor (already mounted and fixed in place by the aluminium and kapton tapes) (1 pcs)
  • Textile sleeve (Length: 300 mm, Width: 5 mm) (1 pcs)
  • Heatbed cable cover (1 pcs)
  • Heatbed cable cover clip (1 pcs)
  • Nuts: M3nN (3 pcs), M3n (2 pcs)
  • Screws: M3x10 (5 pcs)
  • Washers: M3/3.2/9/0.8 (2 pcs)

Notes

  • Height: 264.4 mm
  • Width: 254 mm
  • Thickness: ~3.175 mm
  • Maximum working temperature: 120°C
  • Maximum recommended temperature: 110°C
  • Voltage: 24V
  • Current: 6.25A
  • Magnets: 45SH neodymium block magnet (28 pcs), attached by Loctite HY 4090

Installation

For installation instructions, visit help.prusa3d.com and select your specific printer model for the repair manual.

(50263)

SKU 50263
Brand Prusa Research
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
