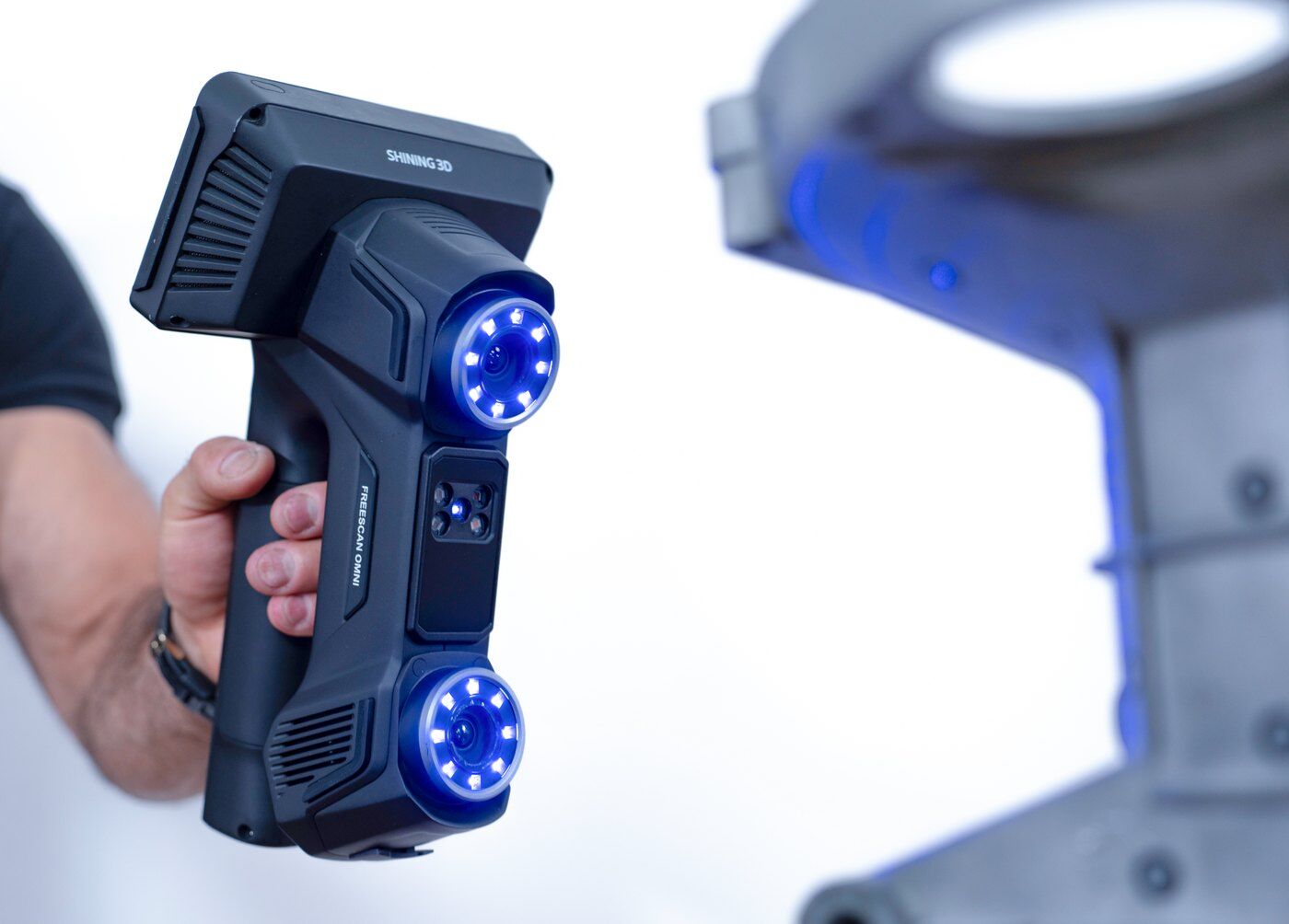

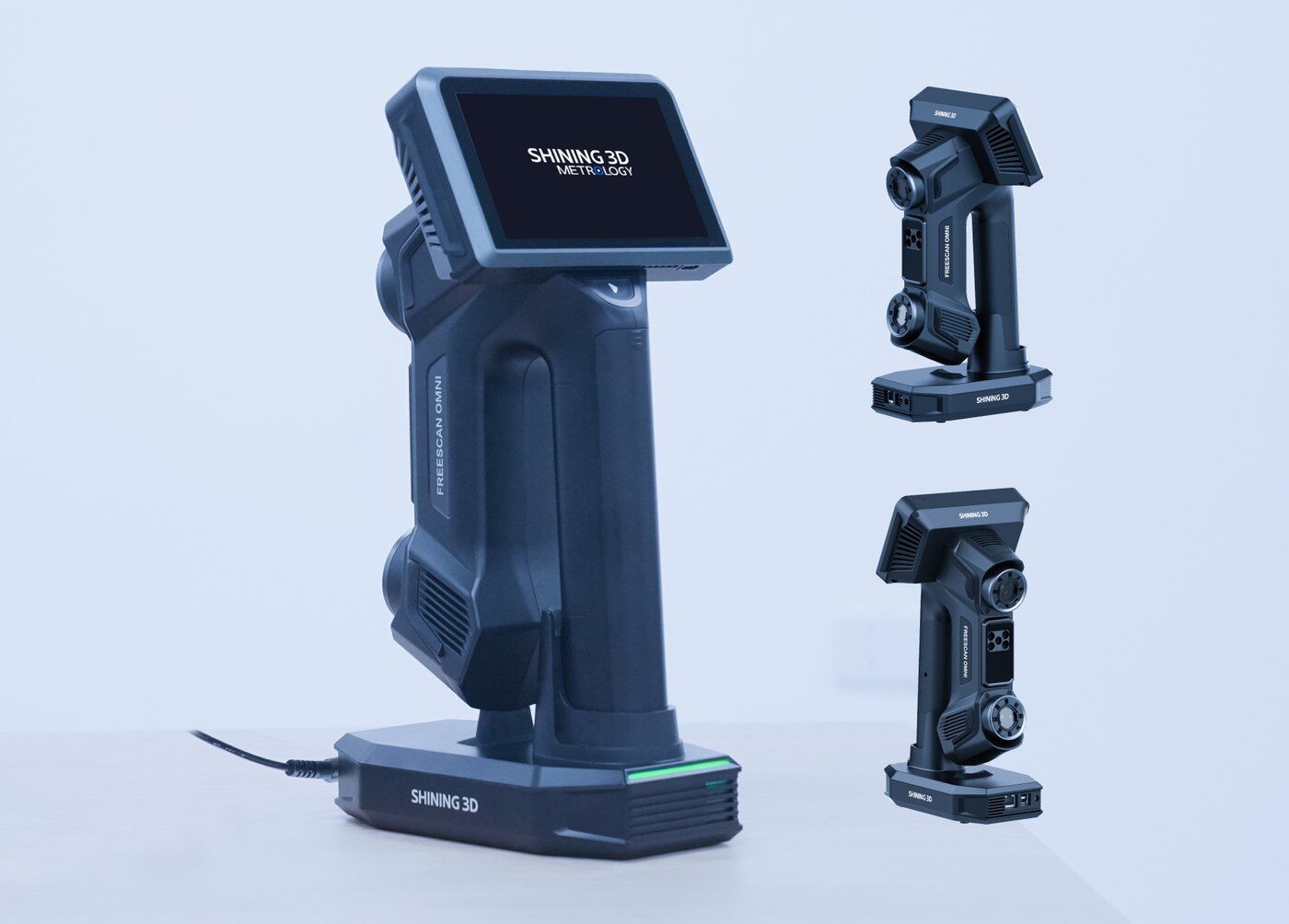

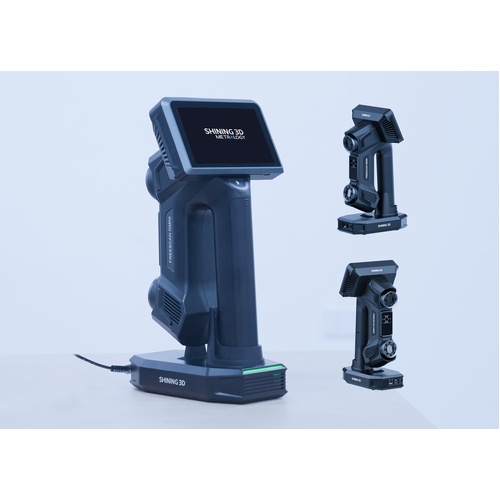

FreeScan Omni Lite
Part of the FreeScan Omni Series — the industry's first wireless, standalone, certified metrology 3D scanning platform. Omni Lite delivers the same certified 0.02 mm accuracy and onboard computing, and expands with dedicated modules as your needs grow.
Metrology-grade scanning on a platform you can grow into
FreeScan Omni Lite shares its hardware foundation with the flagship FreeScan Omni: the same certified accuracy, the same edge computing module, the same fully wireless standalone operation. What changes is where you start. Omni Lite puts the certified scanning platform in your hands now and lets you add dedicated modules later, as the work demands them.
There is no laptop, no cable loom and no network dependency. Scanning and processing run entirely on the device, and detachable battery packs swap out mid-job so a long shift on the factory floor never stops for a recharge. Acceptance tested to VDI/VDE 2634 Part 3 and aligned with ISO 10360, it produces traceable results in the environment where the parts actually live.
Key features
Certified Metrology Accuracy
Up to 0.02 mm accuracy, verified to VDI/VDE 2634 Part 3 and aligned with ISO 10360 for consistent, traceable measurement in any on-site environment.
Truly Wireless & Standalone
No power cords, no data cables, no PC. Scanning, processing and review all happen on the scanner, with detachable battery packs for hot swaps without downtime.

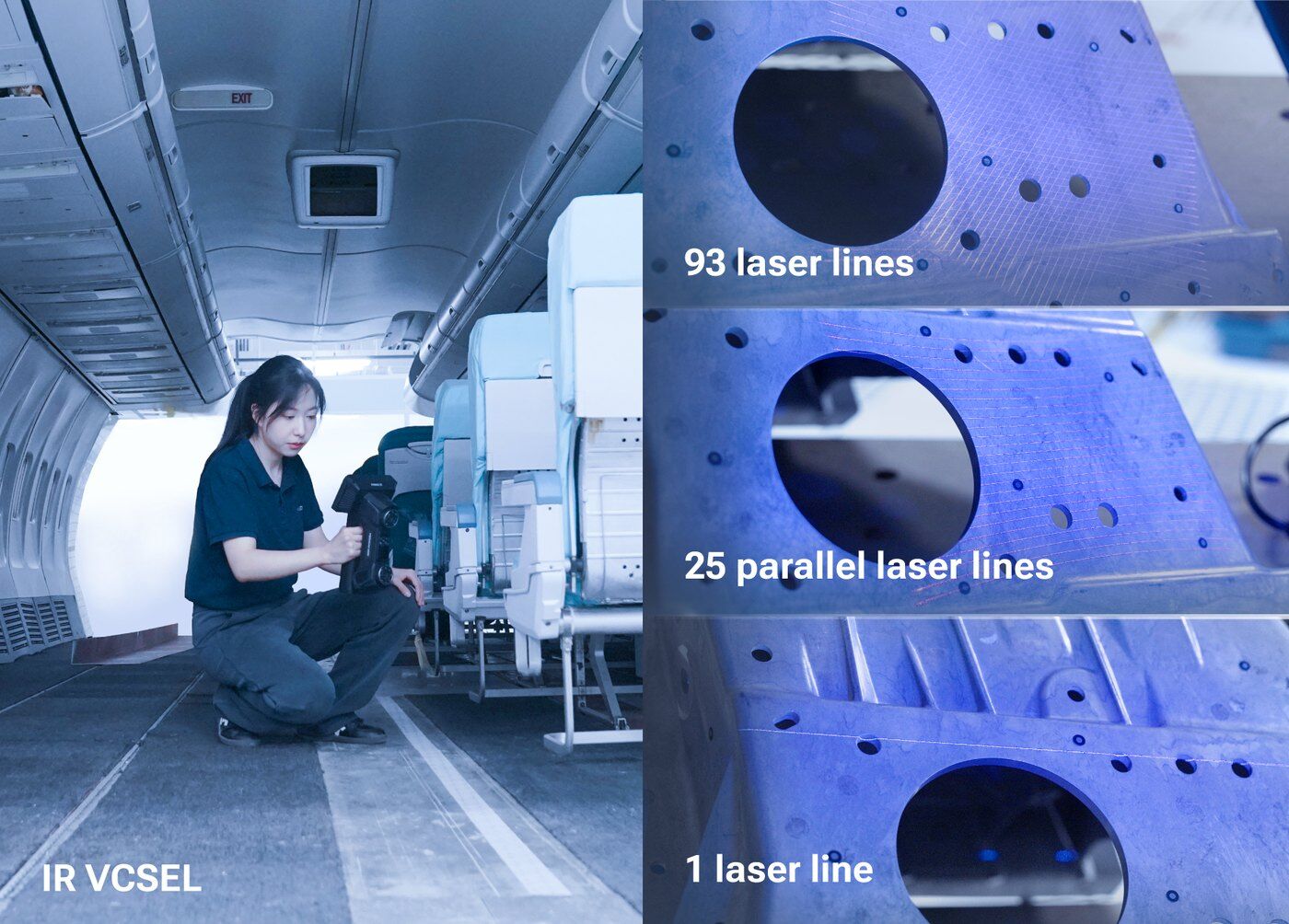

Four Scanning Modes
93 laser lines for fast overall scans, 25 parallel lines for fine detail, a single line for deep pockets, and marker-free IR rapid scanning.
Edge Computing Module
32 GB RAM, FPGA acceleration and a 1 TB SSD onboard, capturing up to 7,619,000 points per second and processing as you scan.
Scalable, Modular Platform
Start with certified scanning, then add on-device inspection, video photogrammetry or AI feature recognition when the application calls for it.
Red Dot Award Winner 2026
Recognised for packing a complete metrology workflow into a handheld unit of 1.1 kg built for the shop floor.
Scanning capabilities
- Blue laser and infrared VCSEL light sources
- High-speed mode: 93 laser lines for full-part coverage
- Detailed mode: 25 parallel laser lines for fine features
- Deep pocket mode: a single laser line for recesses and bores
- IR rapid mode: quick capture without markers
- 0.01 to 10 mm resolution, up to 580 x 650 mm laser field of view
Ideal for
- Shop-floor quality control and first-article inspection
- On-site measurement where a PC is impractical
- Aerospace, automotive and EV battery component checks
- Large castings, tooling and fabrications
- Reverse engineering of legacy parts
- Field service and in-situ dimensional verification

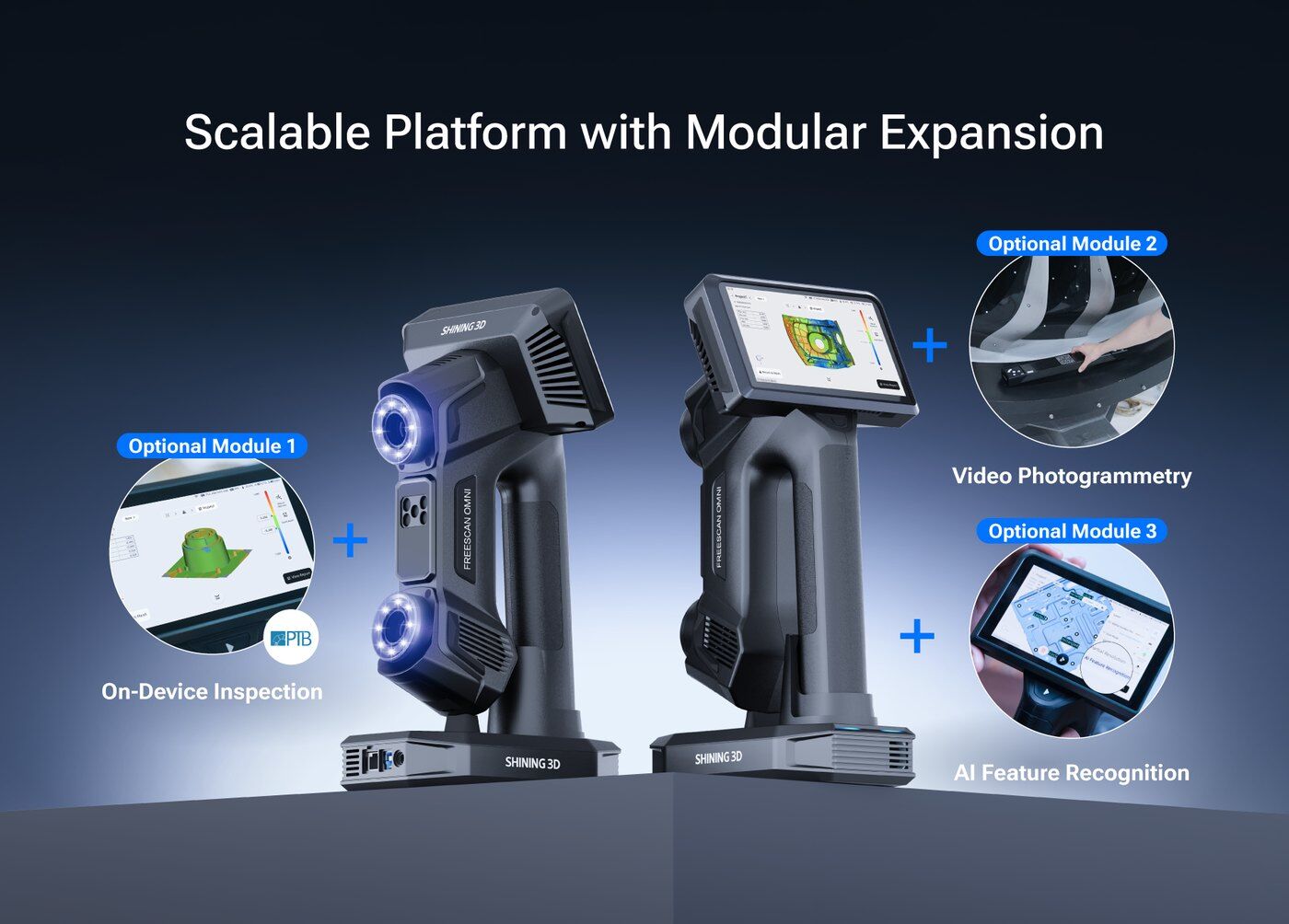

Expand it when you need to
Omni Lite is built on the same scalable architecture as the full FreeScan Omni. Three dedicated modules can be added later, so the scanner grows with the work instead of being replaced by it.
On-Device Inspection
Built-in PTB-certified inspection software. Scan, mesh, inspect and report entirely on the scanner, with preset templates so frontline staff get consistent results every time.
Video Photogrammetry (VPG)
SHINING 3D's patented marker-free photogrammetry. Paired with a calibration rod it verifies markers in real time and tightens volumetric accuracy to 0.02 + 0.015 mm/m on large objects.

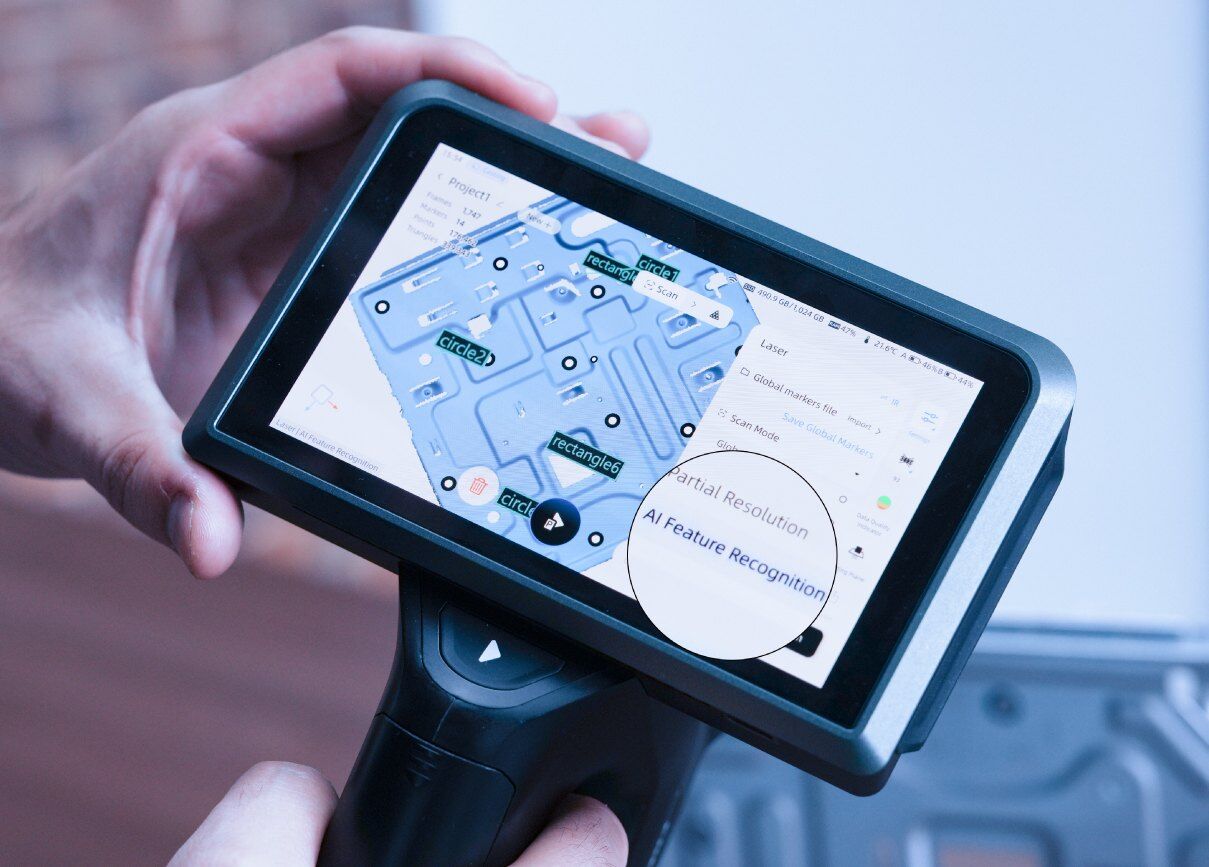

AI Feature Recognition
Intelligent boundary detection for fast, precise measurement of round holes, rectangular holes and slots, for higher quality data with less operator effort.
Modules are sold separately. If you need certified on-device inspection from day one, the FreeScan Omni ships as a complete scan-to-inspect configuration.
Applications

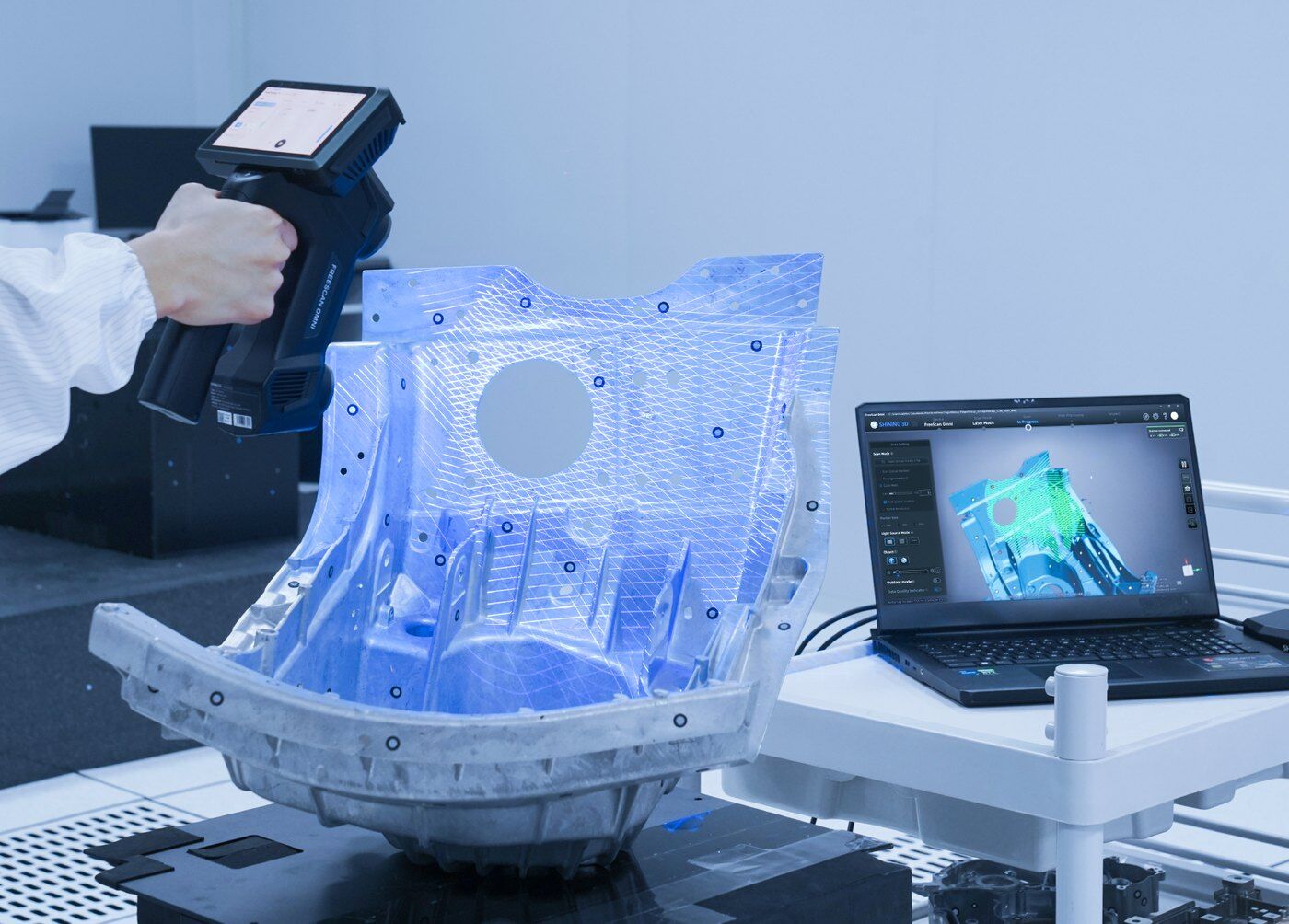

On-Site Quality Control
Take certified metrology to the part instead of moving the part to a lab. Battery power, wireless operation and onboard processing mean the scanner works anywhere in the plant.

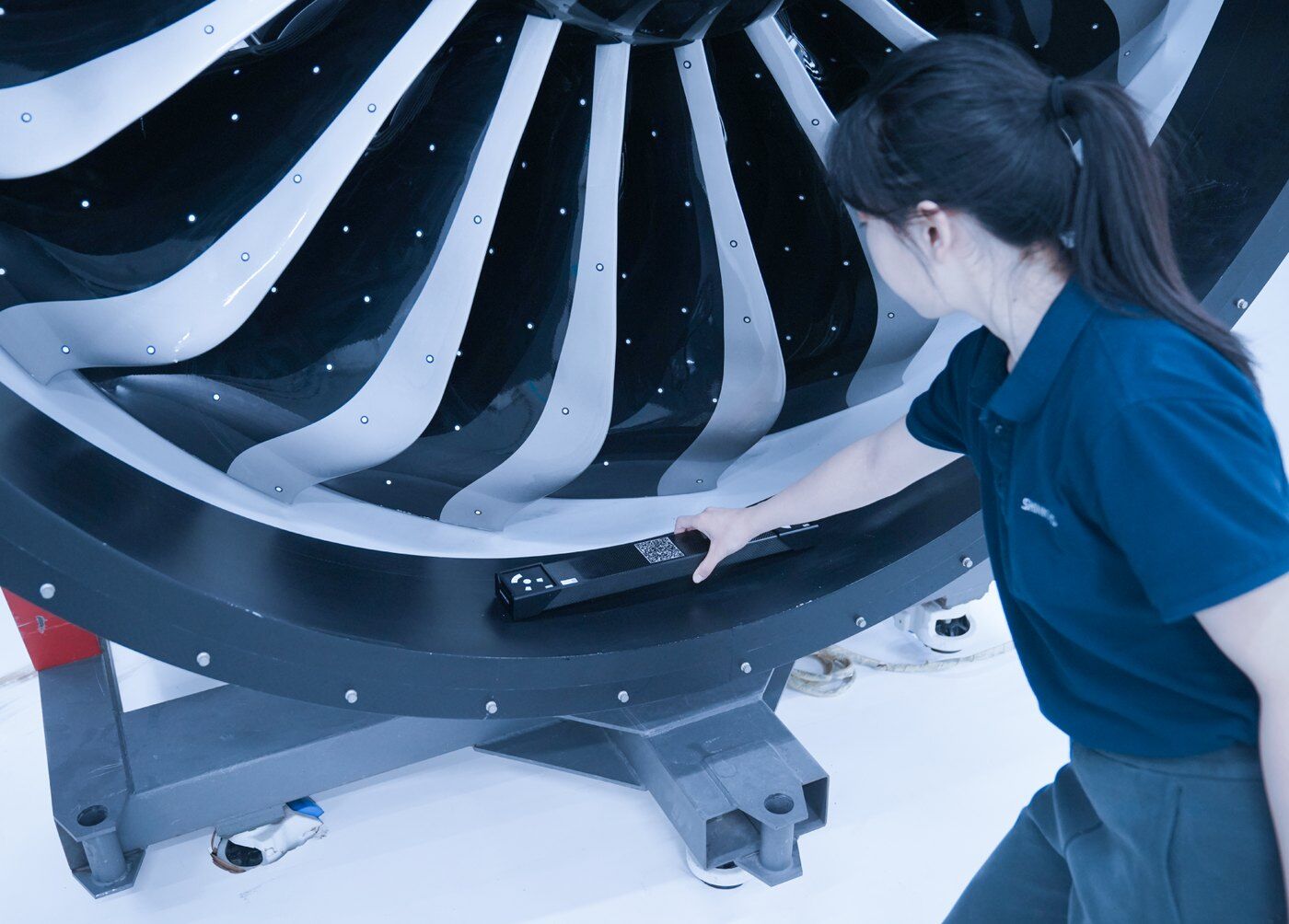

Large-Object Scanning
An IR field of view up to 1205 x 1104 mm and 830 mm depth of field make short work of castings, body panels, tooling and fabricated assemblies.
EV Battery & Precision Components
Dimensional verification of battery packs, connectors, housings and machined parts to certified metrology accuracy.
Reverse Engineering
Capture legacy or hand-finished parts as accurate mesh data ready for CAD, with output in STL, ASC, 3MF and P3.
Technical specifications
| Specification | Details |
|---|---|
| Accuracy | Up to 0.02 mm |
| Volumetric Accuracy | 0.02 + 0.03 mm/m (0.02 + 0.015 mm/m with the optional VPG module) |
| Certification | Acceptance tested to VDI/VDE 2634 Part 3, aligned with ISO 10360 |
| Scan Speed | Up to 7,619,000 points/s |
| Resolution / Point Distance | 0.01 to 10 mm |
| Light Source | Blue laser (17+17 crossed lines, 7 parallel lines) and IR VCSEL |
| Scanning Modes | 93 laser lines, 25 parallel laser lines, 1 laser line, IR rapid scan |
| Maximum Field of View | Laser 580 x 650 mm; IR 1205 x 1104 mm |
| Working Distance | 200 to 680 mm |
| Depth of Field | 830 mm (170 to 1000 mm) |
| Computing Module | 32 GB RAM, FPGA, 1 TB SSD |
| Display | Integrated touchscreen for standalone operation |
| Power | Detachable, hot-swappable battery packs |
| Connection | Wireless and wired modes |
| Net Weight | Up to 1.1 kg |
| Dimensions | 331 x 120 x 76 mm |
| Output Formats | STL, ASC, 3MF, P3 |
| Operating Temperature | -10 to 40 °C |
| Operating Humidity | 10 to 90% RH |
| Optional Modules | On-device inspection, Video Photogrammetry (VPG), AI Feature Recognition |
Specifications are supplied by SHINING 3D and may change without notice.
