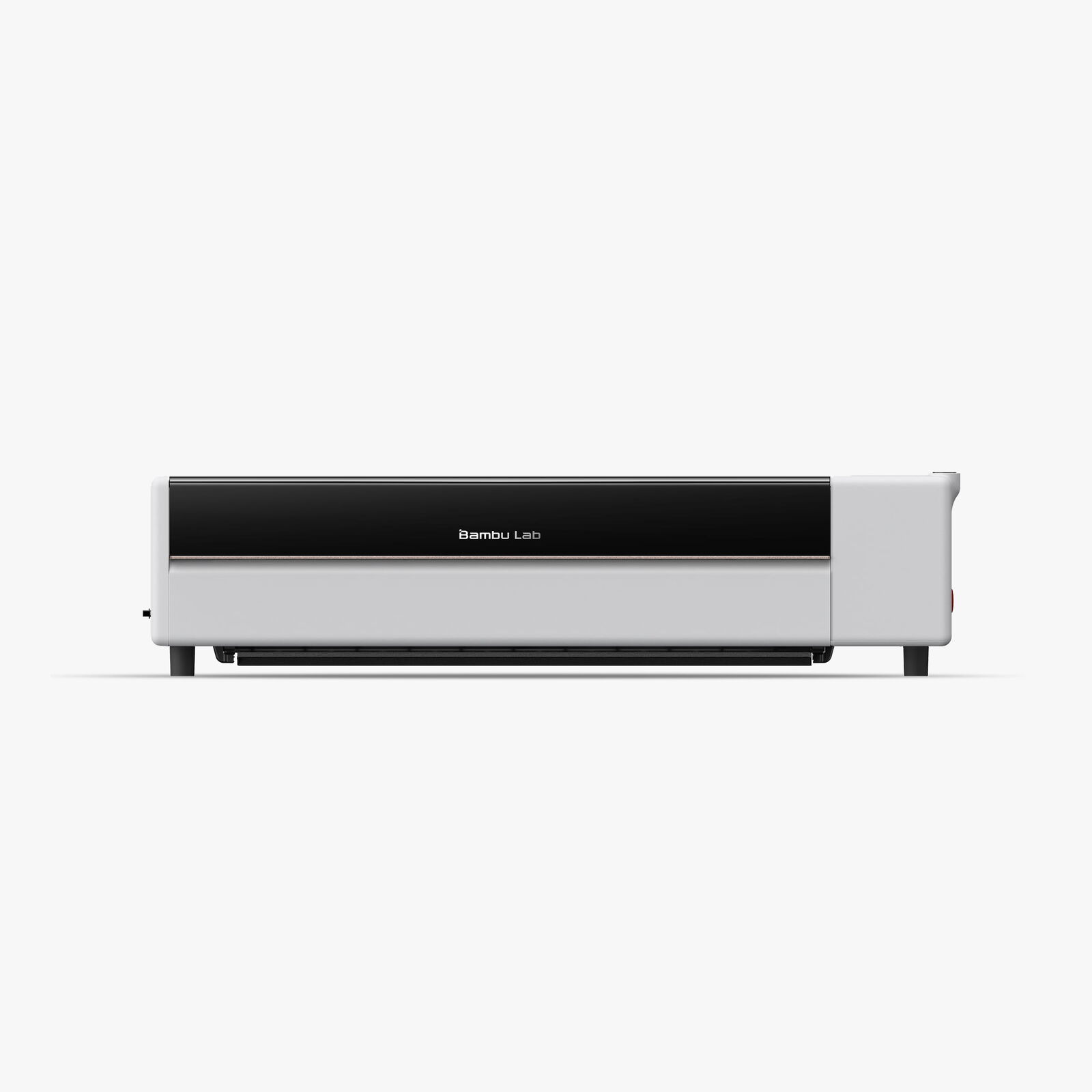

R1 55W CO2 Laser Cutter & Engraver

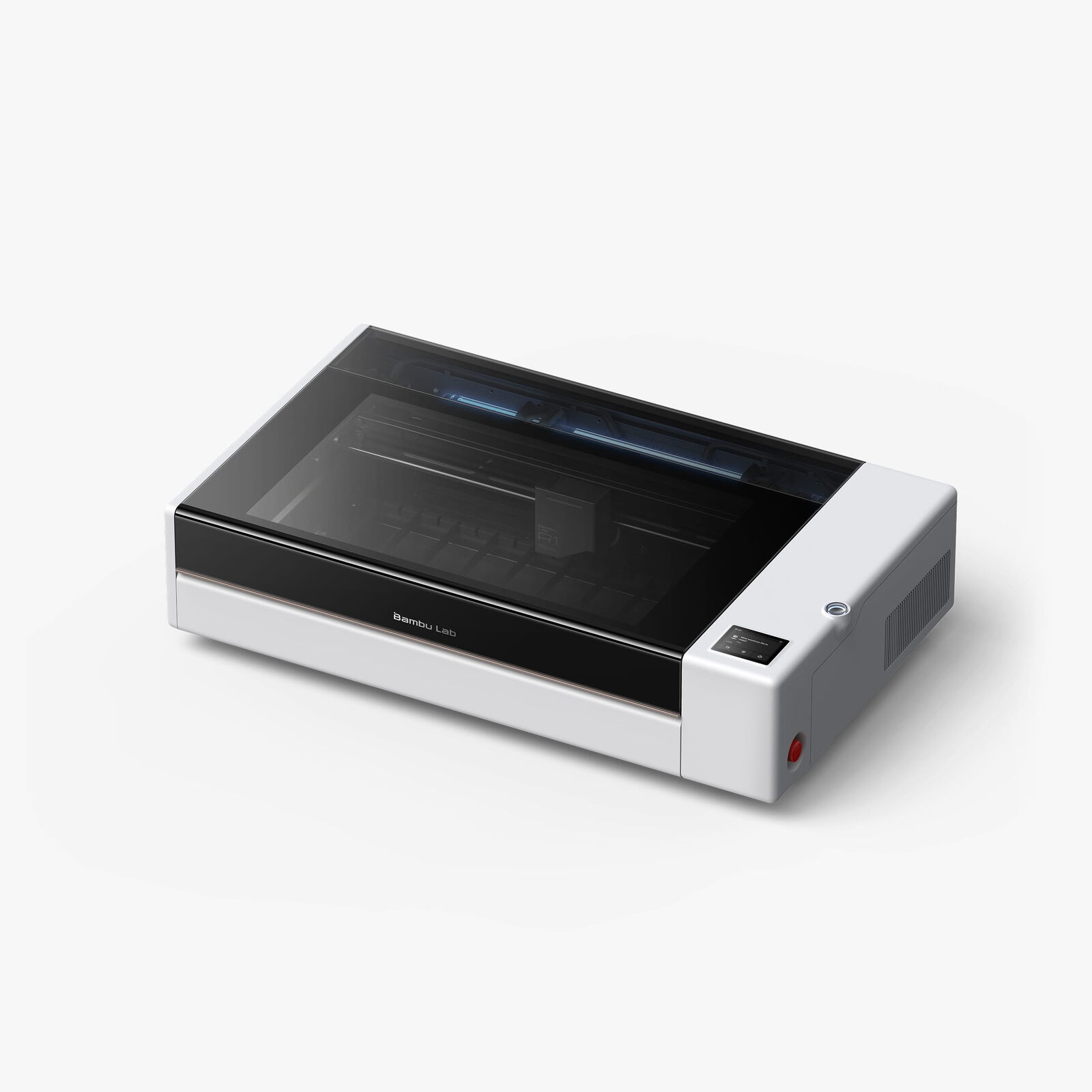

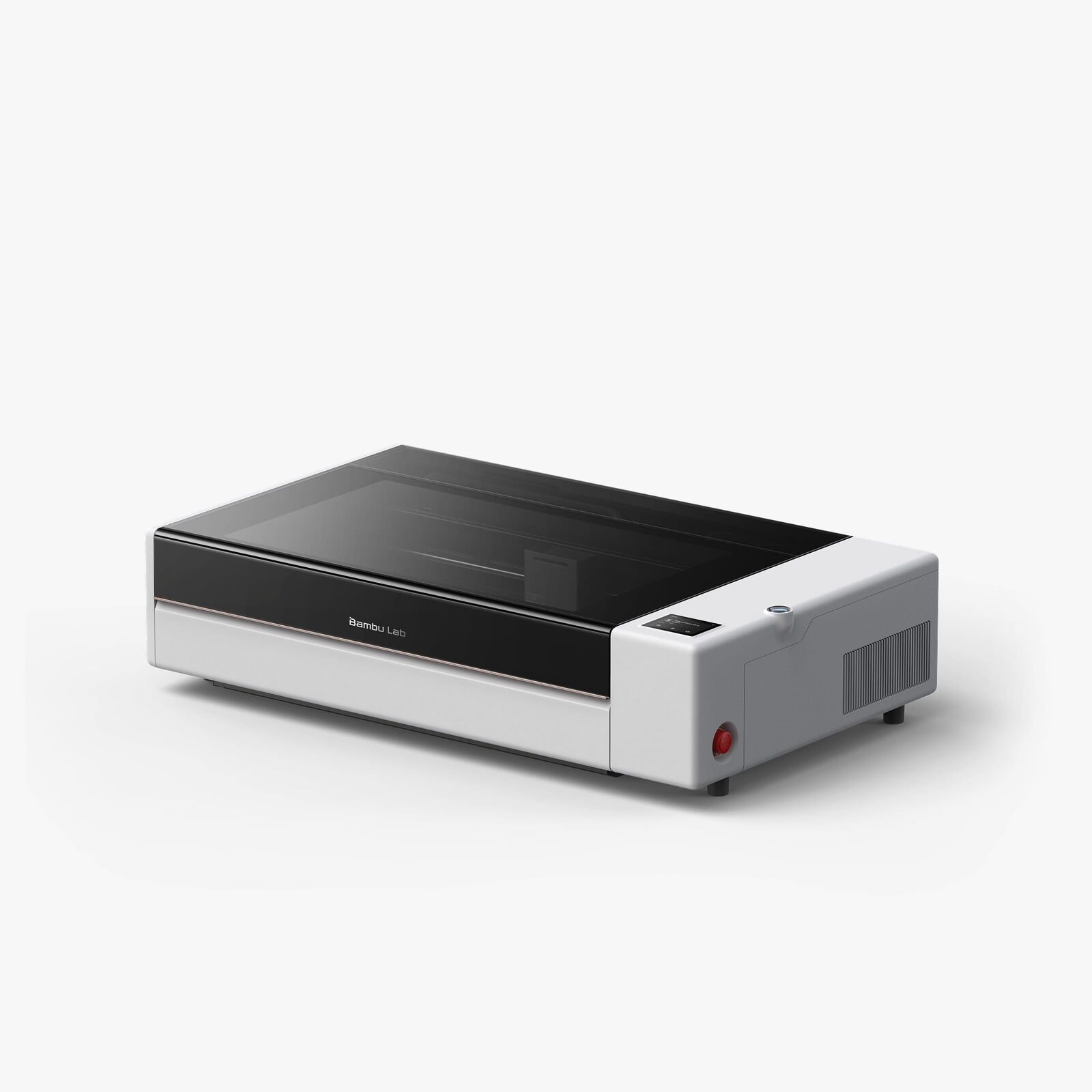

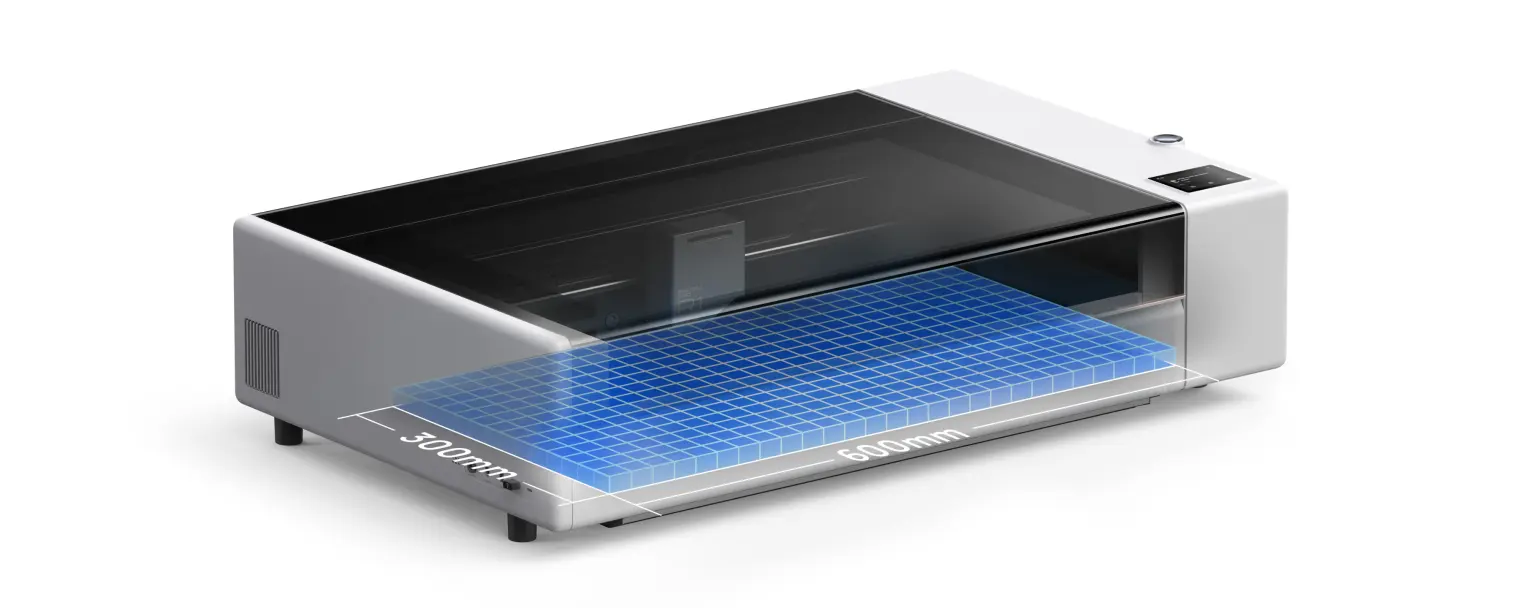

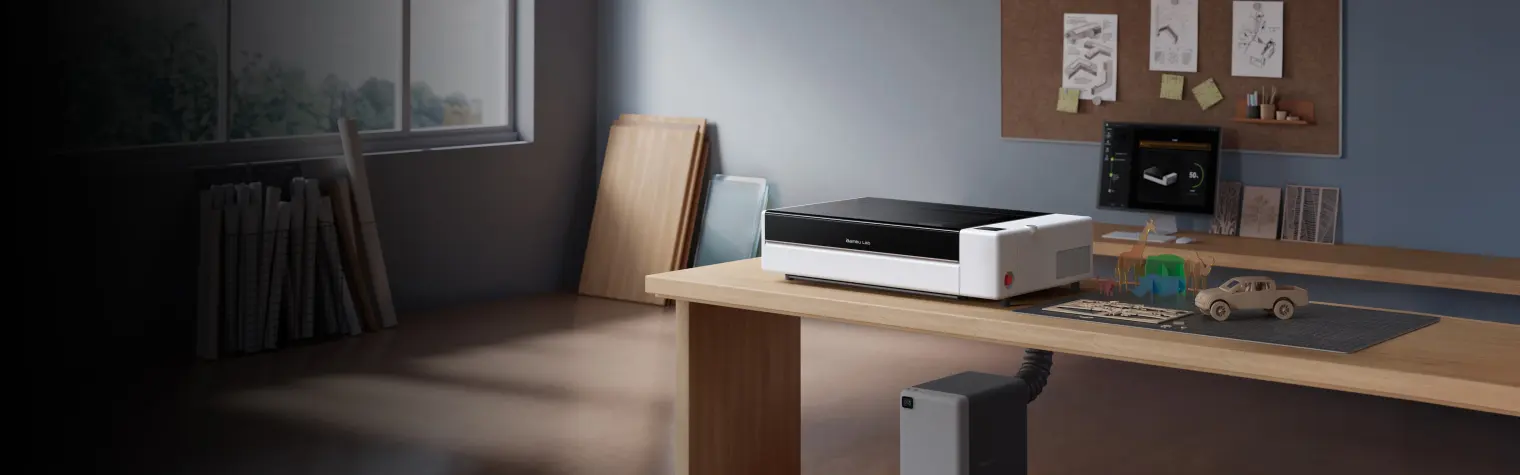

Bambu Lab's first dedicated laser. A 55W CO2 laser, a 600 × 300 mm work area and fully automatic optical alignment, in an enclosed Class 1 machine built for workshops, classrooms and studios.

Pricing, Lead Times and Bundles

Talk to our team for current pricing, availability and accessory bundles, including the Long Material Bundle and the Long Material and Rotary Bundle. Call us on 1300 334 327 or send us a message. Schools and government buyers are welcome to ask for a formal quote.

55W CO2. Thick Cuts in One Pass

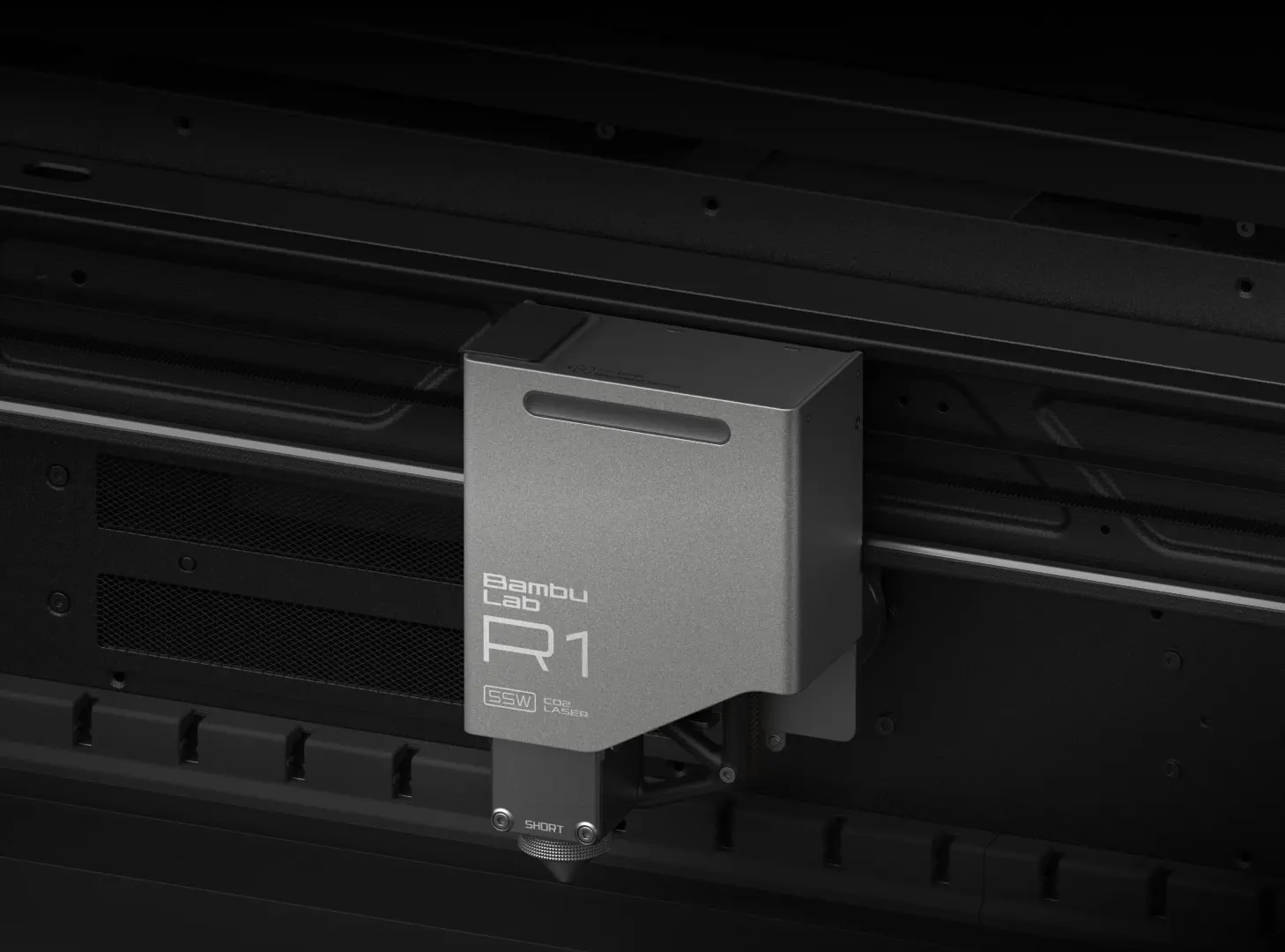

The R1's 55W CO2 laser cuts and engraves wood, clear and coloured acrylic, leather, fabric, paper, EVA foam and shell, and engraves glass, ceramic and coated metals. It cuts up to 20 mm acrylic in a single pass, and up to 18 mm black walnut plywood with the optional medium or long-focus lens. The standard short-focus lens has a fine 0.11 mm spot for detailed engraving.

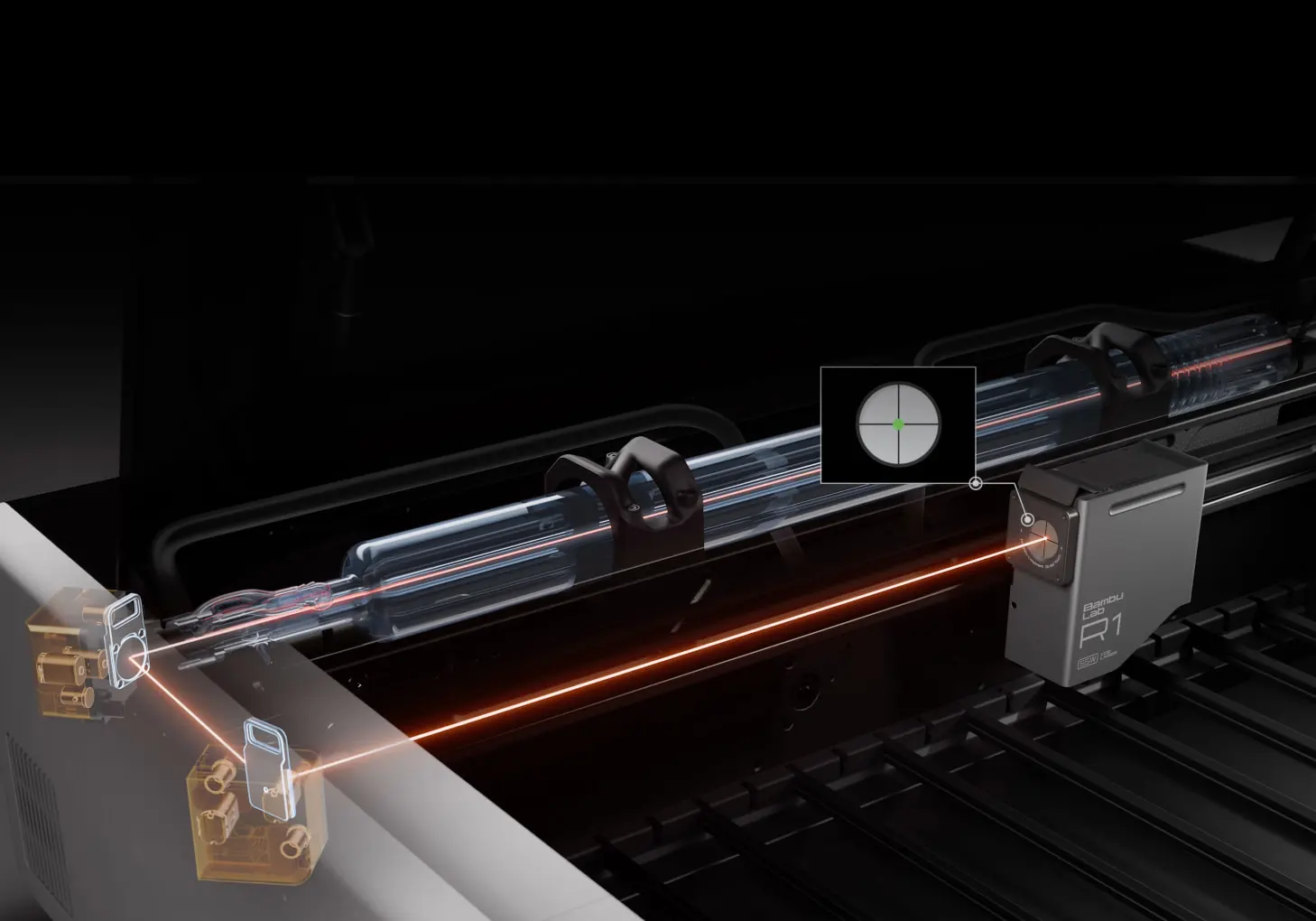

Automatic Laser Alignment

Aligning the optical path on a CO2 laser usually means thermal paper, test shots and trial and error. On the R1 you mount the supplied Laser Alignment Sensor on the toolhead and the machine measures the beam, detects any misalignment and corrects the mirrors itself, in about a minute. Bambu Lab recommends running it on first use, after moving the machine and monthly for best results.

Key Specifications

What You Mark Is What You Cut

The TriSense system combines a BirdsEye camera that captures the whole bed, a toolhead camera for fine detail, a pinpoint laser, a distance measurement laser and XY encoders. Drop in a crooked, curved or tiny workpiece and the R1 locates it, reads the surface height, focuses automatically and tracks every move, so each cut lands within 0.2 mm of where you placed it.

Core Features

• 55W CO2 laser that cuts and engraves clear acrylic as well as wood, leather and fabric
• Fully automatic optical path alignment in about a minute, no thermal paper or test shots
• TriSense positioning with dual cameras, dual lasers and XY encoders
• Autofocus with height sensing that follows curved and uneven surfaces
• Accurate surface measurement on clear materials such as glass and acrylic
• Toolhead camera traces printed or drawn outlines for precise cut-around jobs
• Engraving at up to 1000 mm/s with speed-synced power for an even tone
• Vibration compensation keeps lines crisp straight out of every turn
• Recognises Bambu Lab laser materials and applies the right power and speed automatically
• On-machine touchscreen for job progress, calibration and machine health
• Built-in air assist pump and crossflow ventilation
• Same Bambu account and MakerWorld workflow as your Bambu Lab 3D printers

Safety Built In

Crossflow Ventilation

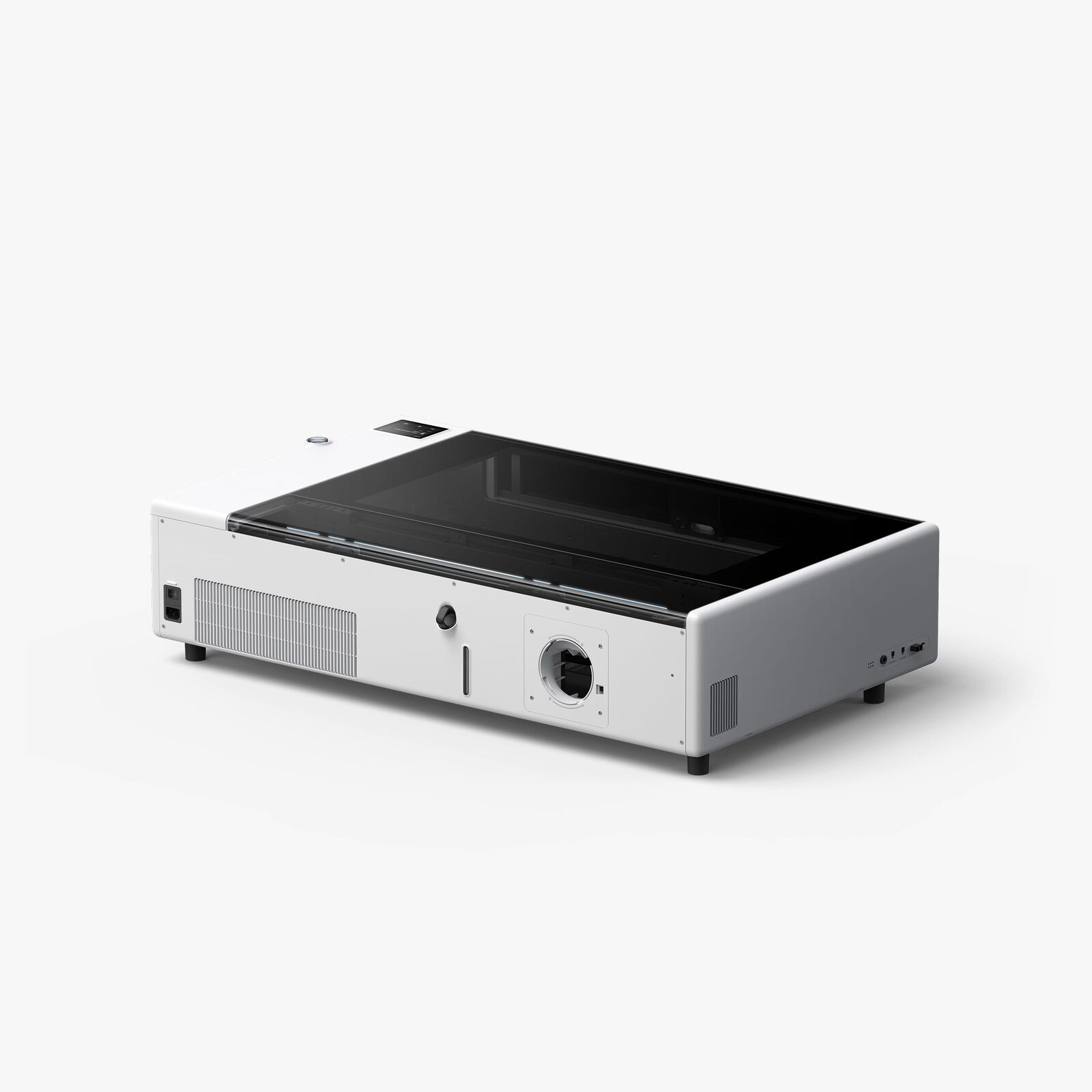

Most lasers rely on a single exhaust fan. The R1 brings fresh air in on one side and exhausts smoke from the other, sweeping the whole chamber to reduce the dead zones where smoke collects. A smoke ventilation fan and hose are included for venting outside, or connect the optional E1 Pro Air Purifier straight to the exhaust outlet for multi-layer filtration with activated carbon.

Go Taller, Rounder, Longer, Thicker

Optional accessories extend what the R1 can take on. Ask us about pricing and availability.

• Riser Base for taller objects, up to 248 mm processing height, and required for the Conveyor and Rotary

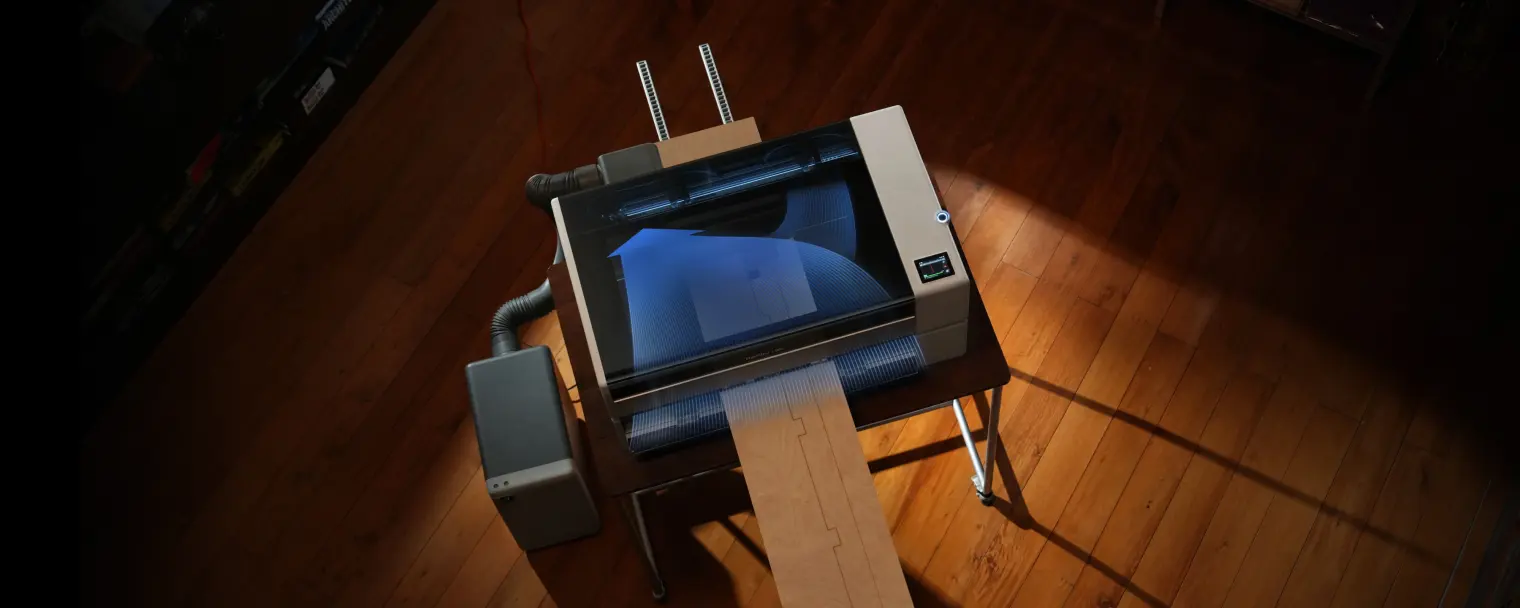

• Conveyor that automatically feeds stock up to 3 metres long for furniture-scale panels
• Rotary Attachment for 360° engraving on bottles, cups and bowls (cylinder processing at launch)
• Medium and long-focus lenses for cleaner cuts through thicker material
• Vision Encoder to hold absolute motion accuracy within 0.1 mm across the work area
• E1 Pro Air Purifier and Auto Fire Extinguishing System

What's in the Box

Bambu Lab R1, power cord, smoke ventilation hose, smoke ventilation fan, anti-freeze, funnel, Allen key, safety key (pre-installed), Laser Alignment Sensor, material pin, calibration board, lubricant grease (x2), lubricant oil, clear acrylic sample and basswood plywood sample.

Specifications are based on Bambu Lab's internal testing and may vary with materials, settings, region and firmware updates. All references to wood refer to plywood. Accessories are sold separately.
