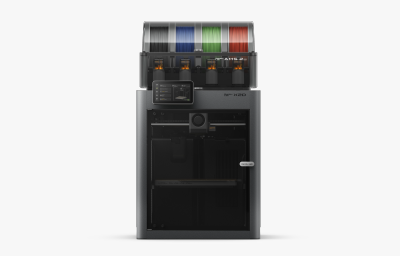

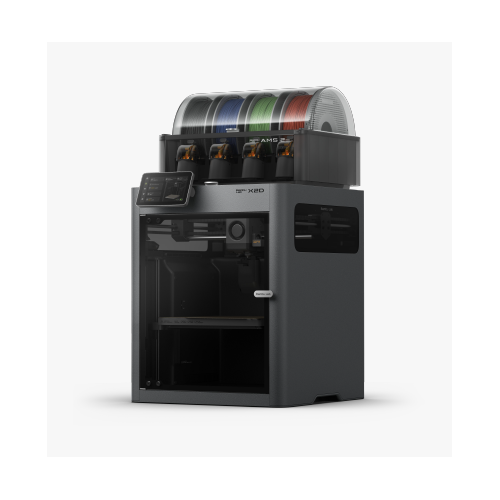

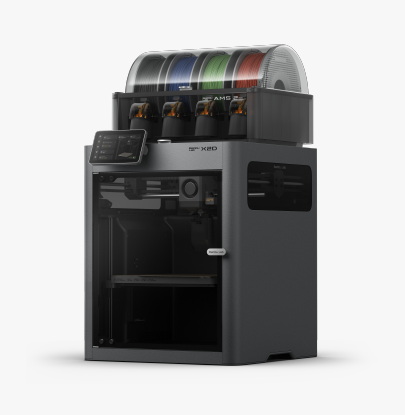

BAMBU LAB X2D Combo 3D PRINTER



DUAL-NOZZLE PRECISION WITH ACTIVE HEATED CHAMBER & AI MONITORING

The Bambu Lab X2D is the second generation of the premium X Series—engineered for pristine surface quality, crisp details, and minimal support scarring. Its dual-nozzle extrusion system (main + auxiliary) enables dedicated support printing with different materials and efficient multi-colour switching, while an actively heated 65 °C chamber and three-stage air filtration bring engineering-grade capability to your desktop. Pair it with AMS 2 Pro (included in the X2D Combo, optional for X2D) to unlock expanded multi-colour printing and active-venting filament drying.

Product Features

• Dual-nozzle system (main + auxiliary) with purely mechanical switching—verified for over 1,000,000 nozzle switches for long-term reliability.
• Dedicated support printing: main nozzle prints the model, auxiliary nozzle prints support with a different material for cleaner surfaces and easier removal.
• Actively heated chamber up to 65 °C for engineering-grade filaments such as ABS, ASA, PA, and PC with minimal warping.
• Dual-mode Smart Thermal Control: Cool Mode draws in fresh air for PLA overhangs; Heat Mode seals and heats the chamber for engineering filaments.
• Three-stage air filtration (G3 pre-filter, H12 HEPA, coconut-shell activated carbon) for VOC and particulate reduction—same solution as the H Series.
• AI Monitoring System with 28 sensors: pre-print debris scan, spaghetti detection, nozzle clumping alerts, and purge chute jam detection.
• Proprietary Dynamic Flow Calibration and PMSM servo extruder with 20 kHz torque sampling for consistently precise extrusion.
• Vibration Compensation with VFA cancellation algorithm and 1.5GT precision belt for sharp details and smooth vertical walls.
• 5-inch 1280 × 720 touchscreen with Gen-2 UI for smoother, clearer operation.
• Quick-swap nozzle with tool-free replacement—simple and intuitive.
• 1080p live-view camera + 1600 × 1200 toolhead camera with enhanced chamber lighting for crisp monitoring and timelapses.
• Active Motor Noise Cancellation—operates below 50 dB.
• Auto Hole and Contour Compensation for dimensionally accurate fit-critical parts.
• Compatible with AMS 2 Pro for multi-colour printing and active-venting filament drying (included with X2D Combo; optional on X2D).
• Optional Vision Encoder (sold separately) for 50-micron-class motion accuracy across the full build volume.

Key Specs

• Max toolhead speed: 1,000 mm/s; max acceleration: 20,000 mm/s²; standard-flow max rate 40 mm³/s (tested with Bambu ABS).
• Nozzle: 300 °C max; 0.4 mm installed; supports 0.2/0.4/0.6/0.8 mm. Hardened-steel nozzle and extruder gears.
• Heatbed: up to 120 °C; flexible steel plates (Textured PEI included). Supports Textured PEI, Smooth PEI, Cool Plate SuperTack, and Engineering Plate.
• Active chamber heating up to 65 °C for engineering filaments.
• Build volume: 256 × 256 × 260 mm³ (main nozzle); 235.5 × 256 × 256 mm³ (dual-nozzle mode).
• Supported materials (main): PLA, PETG, ABS/ASA, TPU, PA, PC, PET, PVA, and carbon/glass-fiber reinforced variants (PA6-CF, PET-CF, PAHT-CF, PPA-CF, etc.).

Notes: "X2D Combo" includes AMS 2 Pro and the 2-in-1 buffer; base "X2D" does not. Vision Encoder is sold separately.



Premium Surface Quality, Redefined

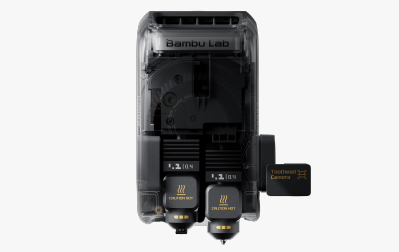

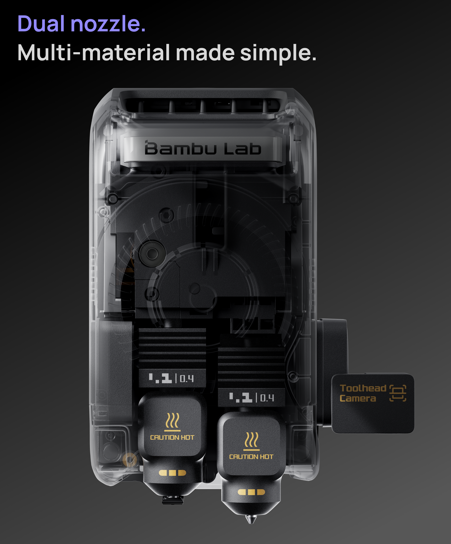

The Core Innovation: Dual-Nozzle System

Instant Mechanical Switching. Over 1,000,000 Verified Switches.

X2D's dual nozzles use a purely mechanical gear-and-trigger mechanism—no auxiliary motor on the toolhead. This keeps the head lightweight for lower inertia and vibration at high speeds, while delivering instant, reliable nozzle switching verified through life-cycle testing of over one million operations.





Dedicated Support Printing The main nozzle prints your model while the auxiliary nozzle prints support with a different material. This eliminates filament-change waste, produces cleaner contact surfaces, and dramatically reduces post-processing. PLA pairs with PETG or PVA support; engineering filaments like PA6-CF and PET-CF can use ABS or ASA as support.
	Efficient Multi-Colour & Multi-Material Instant nozzle switching means faster colour changes, cleaner transitions, and significantly less waste compared to single-nozzle colour swapping. X2D also supports TPU + PLA multi-material printing—produce finished parts that combine rigidity and flexibility in a single job.





User Experience As Good As A Smartphone

X2D features a high-resolution 5-inch 1280 × 720 touchscreen driven by a faster processor and Bambu's second-generation UI. Enjoy smoother gestures, sharper visuals, and clearer step-by-step guidance from setup to print finish.

5-inch HD Touch Screen ｜ 2nd-Gen UI

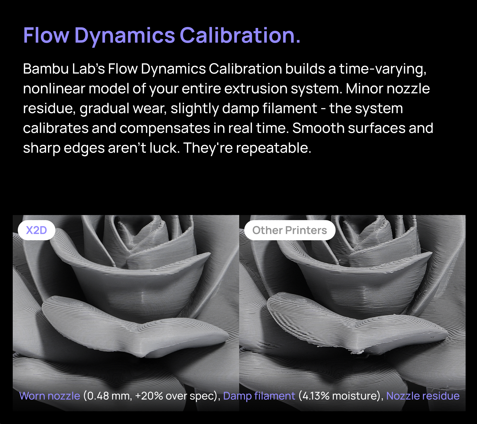

Precision That Lasts. Dynamic Flow Calibration.

Printing conditions change over time—nozzle wear, filament moisture—but X2D's proprietary Dynamic Flow Calibration goes beyond a single K value. It comprehensively considers the state of the extrusion motor, hotend, nozzle, and filament itself, compensating in real time so premium print quality is consistently reproduced.

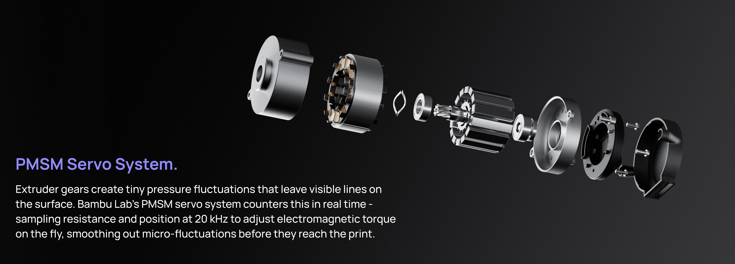

PMSM Servo Architecture ｜ 20 kHz Torque Sampling

Vibration Compensation & VFA Cancellation

Vibration Compensation suppresses ringing and ghosting to keep printed details sharp and precise. The VFA cancellation algorithm works with the 1.5GT precision belt to reduce periodic artefacts on vertical walls, delivering smoother surfaces.



Smart Thermal Control System

From PLA Overhangs to Engineering-Grade Nylon—One Machine Does It All.

X2D is equipped with a dual-mode smart thermal control system that accommodates everything from basic PLA to demanding engineering filaments.

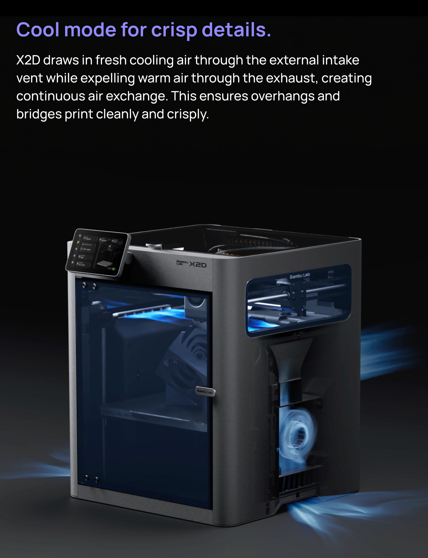

Cool Mode — Crisp Overhangs, Door Closed.

In Cool Mode, designed for low-temperature filaments like PLA, X2D draws in fresh cooling air through the external intake vent while expelling warm air through the exhaust. This continuous air exchange ensures overhangs and bridges print cleanly and crisply—even with the door closed.

Cold-Air Intake ｜ Cooling Mode

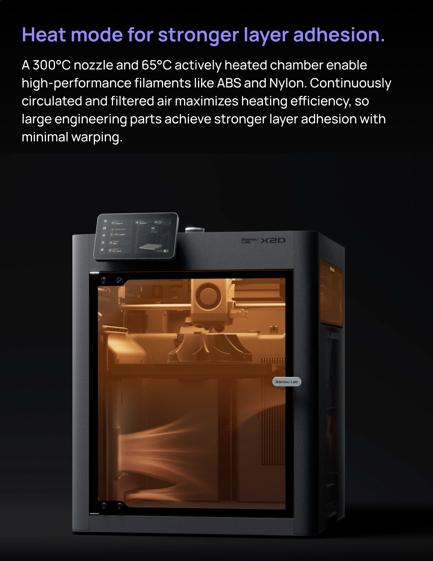

Heat Mode — 65 °C Actively Heated Chamber For Engineering Filaments.

In Heat Mode, the 300 °C nozzle paired with a 65 °C actively heated chamber enables printing of high-performance engineering filaments such as ABS, ASA, and Nylon. The chamber air is continuously circulated and filtered, maximising heating efficiency so that large engineering parts achieve stronger layer adhesion with minimal warping.

Active Chamber Heating ｜ 65 °C ｜ Carbon Filter



Peace of Mind, Every Time You Print.

X2D's AI Monitoring System, powered by an on-board NPU, scans the build plate before each print and monitors in real time throughout. With 28 sensors covering the feeding path, thermal environment, and safety status, you can hit print with confidence.

AI Monitoring ｜ 28 Sensors ｜ NPU

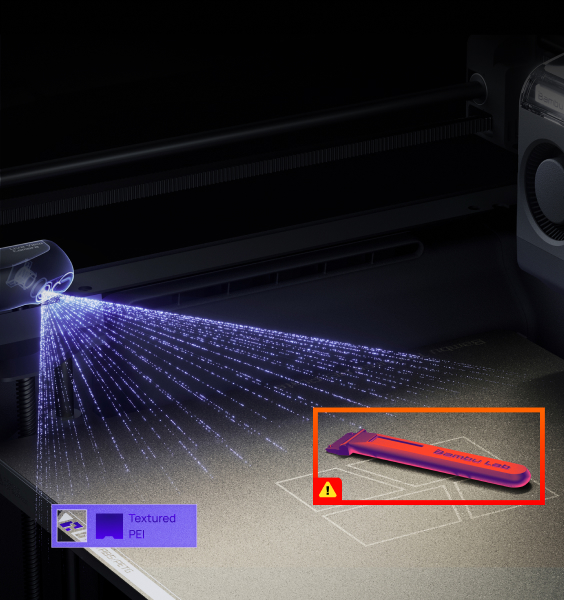

Pre-Print Debris Scan Before every job, the AI scans the build plate for residual debris, helping ensure a clean, accurate start for every print.
	Spaghetti Detection Computer vision watches the part in real time and flags loose strands, off-bed extrusion, or layer detachments early. When detected, the printer can pause and alert you, reducing wasted time and material.
Nozzle Clumping The AI monitors the nozzle area for blob formation and material build-up. If clumping is detected, X2D can pause the job to prevent collisions or surface defects, helping maintain clean walls and reliable finishes.
	Purge Chute Jam X2D checks the purge chute during filament changes and colour swaps. If a blockage or buildup is detected, it can pause and prompt clearing to prevent misfeeds, failed tool changes, or stringing from incomplete purges.





Tool-Free Nozzle Swap.

X2D features a quick-swap nozzle that supports tool-free replacement—simple, intuitive, and easy even for first-time users. Swap nozzle sizes in seconds without fumbling with wrenches or risking wiring mistakes.

Quick-Swap Nozzle ｜ Tool-Free Design





Enhanced Live View & High-Quality Timelapse.

Improved chamber lighting dramatically enhances the clarity of live view and timelapses. X2D includes both a 1080p live-view camera and a 1600 × 1200 toolhead camera. Combined with dual-band Wi-Fi, you can monitor remotely with confidence and capture share-worthy, well-lit footage.

Enhanced Lighting ｜ Dual Cameras ｜ 1080p + Toolhead Cam





Reliable for Fiber-Reinforced Materials.

The X2D extrusion path and nozzle use hardened steel for exceptional wear resistance, delivering stable, long-term performance with abrasive, fiber-reinforced filaments like PA6-CF, PET-CF, and PAHT-CF.

Hardened Steel Nozzle ｜ Hardened Steel Extruder Gear





Three-Stage Air Filtration.

Regardless of operating mode, X2D is equipped with a three-stage air filtration system—G3 pre-filter, H12 HEPA filter, and coconut-shell activated carbon—effectively reducing odours and airborne particles. This is the same filtration solution used in the flagship H Series.

G3 Pre-filter ｜ H12 HEPA ｜ Coconut-Shell Activated Carbon



Perfection, Detail by Detail.

X2D features numerous refinements that elevate the user experience. These incremental improvements may not be immediately obvious, but they reflect the relentless pursuit of perfection that defines Bambu Lab.

Auto Hole & Contour Compensation Accounts for material shrinkage, bringing printed hole diameters closer to specification. Fit-critical parts such as bearings and fasteners assemble properly on the first try.
	Active Motor Noise Cancellation Combined with an optimised air duct design, X2D operates below 50 dB—quiet enough for home and office environments.

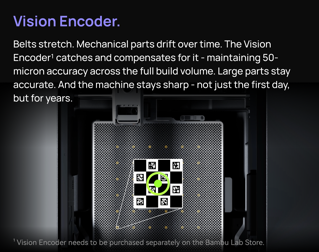

Vision Encoder (Sold Separately) Monitors and compensates for belt stretch and mechanical drift in real time, helping X2D maintain 50-micron-class motion accuracy across the entire build volume—factory-level performance even after extended use.





AMS 2 Pro — Multi-Colour Printing & Filament Drying, All in One Box.

Experience our most reliable multi-colour system yet. AMS 2 Pro adds long-awaited filament drying with a pioneering active-venting design that dries filament up to 30% faster than sealed heating, keeping humidity low for better storage and print quality.



Faster Multi-Colour Printing

A PMSM feeding motor speeds filament swaps by 60%, saving roughly 10 minutes for every 100 colour changes—less waiting, more making.

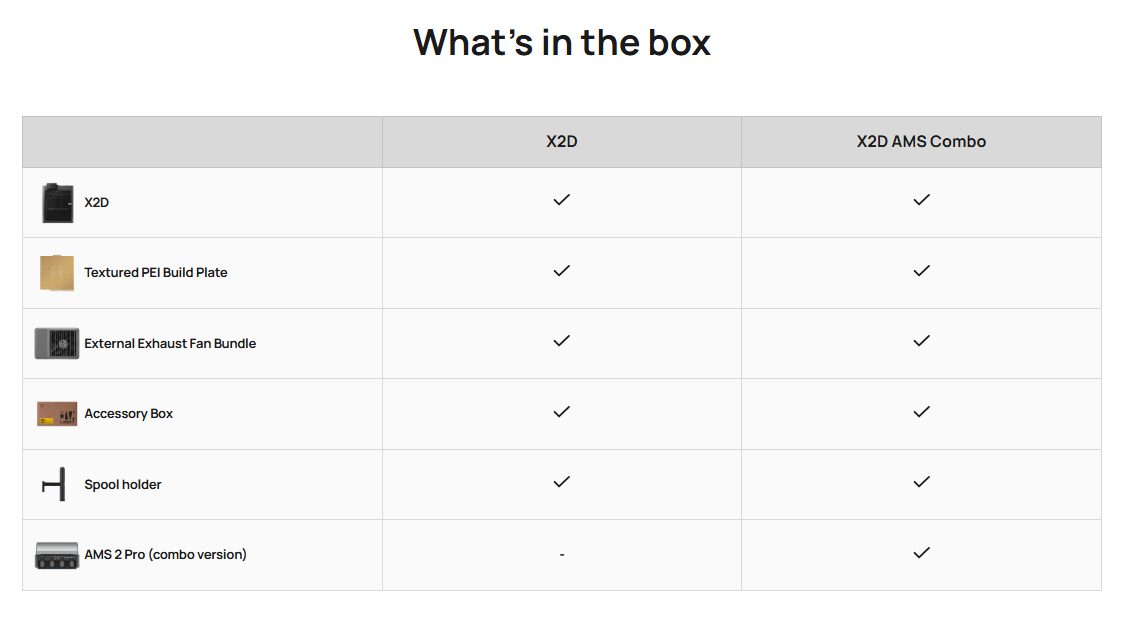

What's In The Box



Bambu Lab X2D Technical Specifications

Printing Technology
Technology	Fused Deposition Modeling
Body
Build Volume (W×D×H)	Main Nozzle: 256 × 256 × 260 mm³ Auxiliary Nozzle: 235.5 × 256 × 256 mm³ Dual Nozzle: 235.5 × 256 × 256 mm³ Total Volume (Two Nozzles): 256 × 256 × 260 mm³
Chassis	Plastic and Steel
Outer Frame	Plastic and Glass
Dimensions & Weight
Physical Dimensions	392 × 406 × 478 mm³
Net Weight	16.25 kg
Toolhead
Extruder Gear	Hardened Steel
Nozzle	Hardened Steel
Max Nozzle Temperature	300 ℃
Included Nozzle Diameter	0.4 mm
Supported Nozzle Diameters	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Cutter	Built-in
Filament Diameter	1.75 mm
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Auxiliary Extruder
Extruder Gear	Hardened Steel
Extruder Motor	Stepper Motor
Heatbed
Build Plate Material	Flexible Steel Plate
Included Build Plate Type	Textured PEI Plate
Supported Build Plate Types	Textured PEI Plate, Smooth PEI Plate, Cool Plate SuperTack, Engineering Plate
Max Heatbed Temperature	120 ℃
Speed
Max Speed of Toolhead	1,000 mm/s
Max Acceleration of Toolhead	20,000 mm/s²
Max Flow for Hotend (Standard Flow)	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)
Chamber Temperature Control
Active Chamber Heating	Supported
Max Chamber Temperature	65 ℃
Air Purification
Pre-filter Grade	G3
HEPA Filter Grade	H12
Activated Carbon Filter Type	Granulated Coconut Shell
VOC Filtration	Supported
Particulate Matter Filtration	Supported
Cooling
Part Cooling Fan	Closed Loop Control
Cooling Fan for Hotend	Closed Loop Control
Auxiliary Part Cooling Fan	Closed Loop Control
Main Control Board Fan	Closed Loop Control
Chamber Heat Circulation Fan	Closed Loop Control
External Exhaust Fan	Closed Loop Control
Supported Filament Types
Main Hotend	PLA, PETG, ABS, ASA, TPU, Support for PLA, Support for PLA/PETG, Support for ABS, PET, PA, PC, PVA; Carbon/Glass Fiber Reinforced PLA, PETG, ABS, ASA, PA6, PAHT, PPA, PET
Auxiliary Hotend	PLA (excl. PLA Aero), PETG, ABS, ASA, TPU for AMS, Support for PLA, Support for PLA/PETG, Support for ABS, Support for PA/PET, PET, PA, PC, PVA; Carbon/Glass Fiber Reinforced PLA, PETG, ABS, ASA, PA6, PAHT, PET
Print with Caution	PLA Silk, PETG-CF, ASA-CF, PA6-CF, TPU for AMS, Support for PA/PET
Sensors
Live View Camera	Built-in; 1920 × 1080
Toolhead Camera	Built-in; 1600 × 1200
Door Sensor	Supported
Filament Run-Out Sensor	Supported
Filament Tangle Sensor	Supported
Filament Odometry	Supported with AMS
Power Loss Recovery	Supported
Electrical Requirements
Voltage	High-voltage: 200–240 VAC, 50/60 Hz Low-voltage: 100–120 VAC, 50/60 Hz
Max Power*	1600 W @ 220 V / 1100 W @ 110 V
Steady-State Power	PLA (25 °C): 250 W @ 220 V / 250 W @ 110 V PC (25 °C): 550 W @ 220 V / 550 W @ 110 V
Environment Requirements
Operating Range	10 ℃ – 30 ℃
Electronics
Touchscreen	5-inch 1280 × 720 Touchscreen
Storage	Built-in 8 GB EMMC and USB Port
Control Interface	Touchscreen, Mobile App, PC App
Motion Controller	Dual-core Cortex-M4 and Single-core Cortex-M7
Application Processor	Quad-core ARM with dedicated NPU
Software
Slicer	Bambu Studio. Supports third-party slicers which export standard G-code (e.g., SuperSlicer, PrusaSlicer, Cura), but certain advanced features may not be supported.
Supported Operating System	MacOS, Windows, Linux
Network Control
Ethernet	Not Available
Wireless Network	Dual-Band Wi-Fi
Network Kill Switch	Not Available
Removable Network Module	Not Available
802.1X Network Access Control	Not Available
Wi-Fi
Operating Frequency	2412 – 2472 MHz, 5150 – 5850 MHz (FCC/CE) 2400 – 2483.5 MHz, 5150 – 5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol	IEEE 802.11 a/b/g/n
* To ensure the heatbed quickly reaches the needed temperature, the printer will maintain maximum power for about 3–5 minutes.
