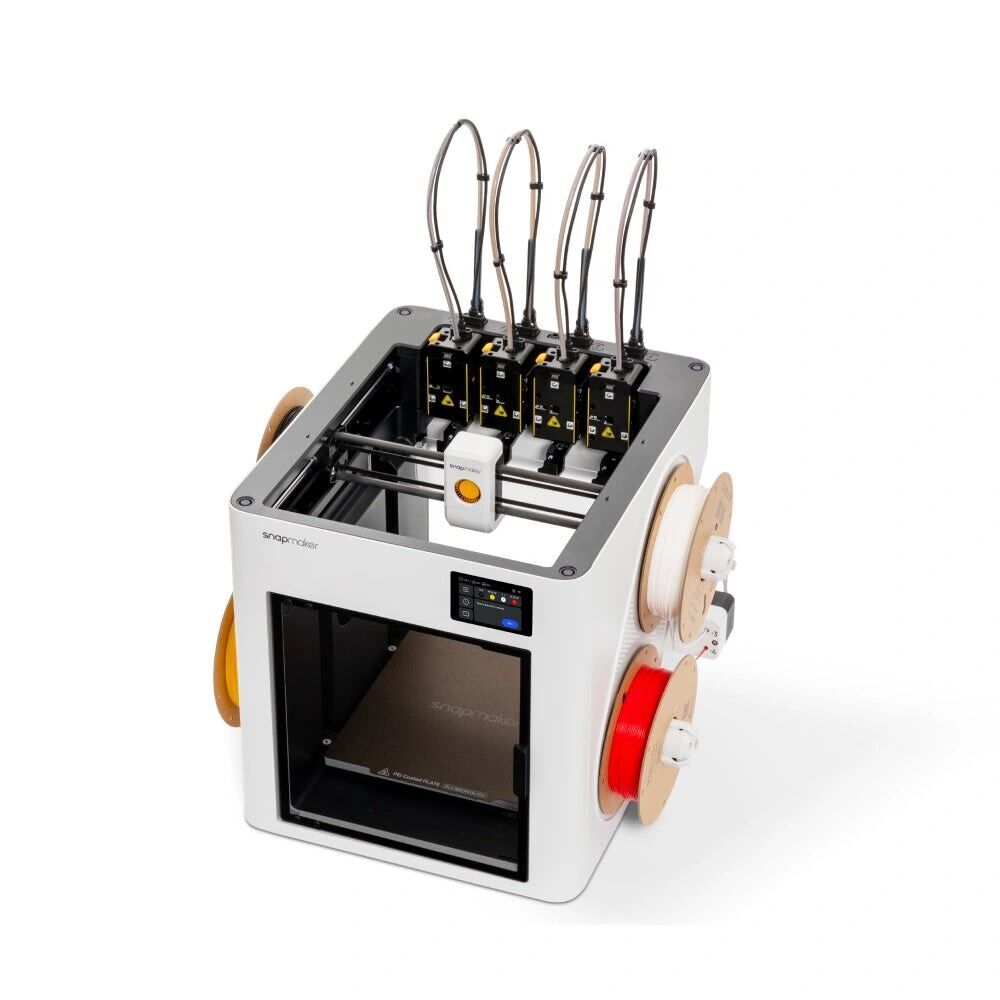

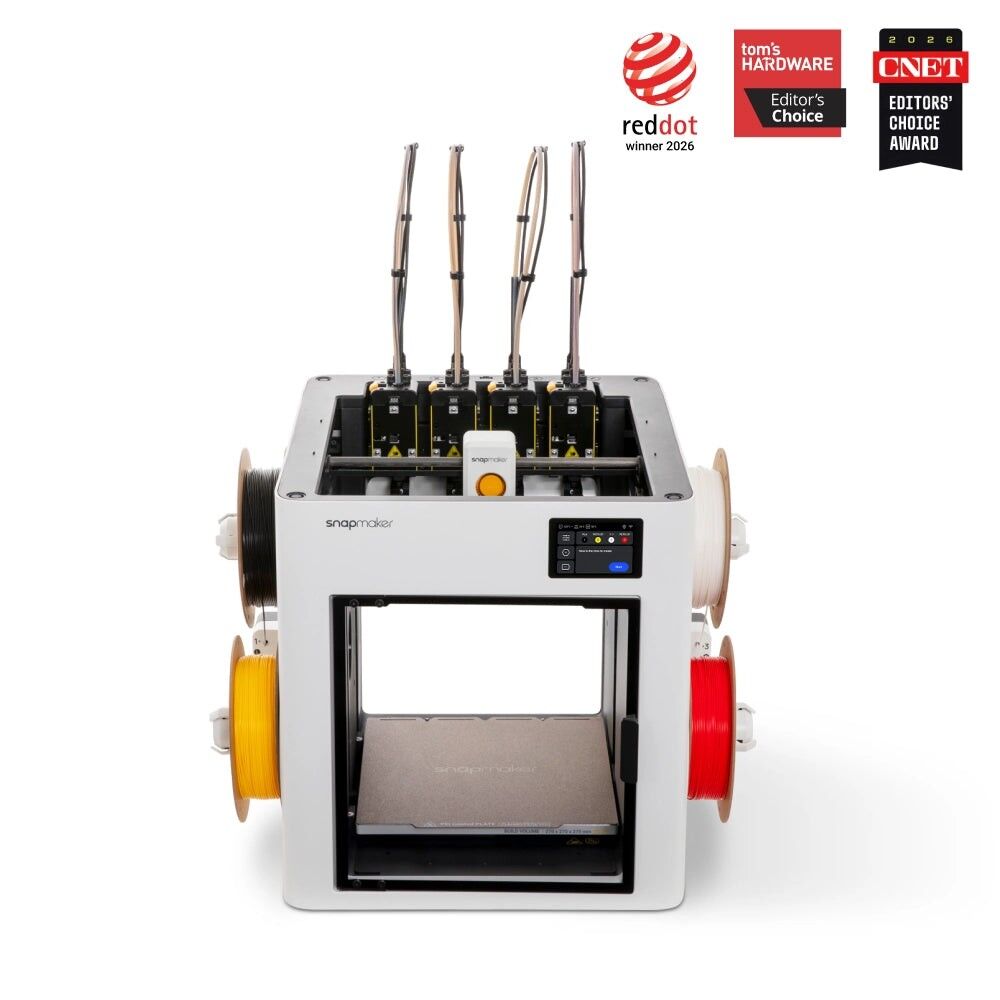

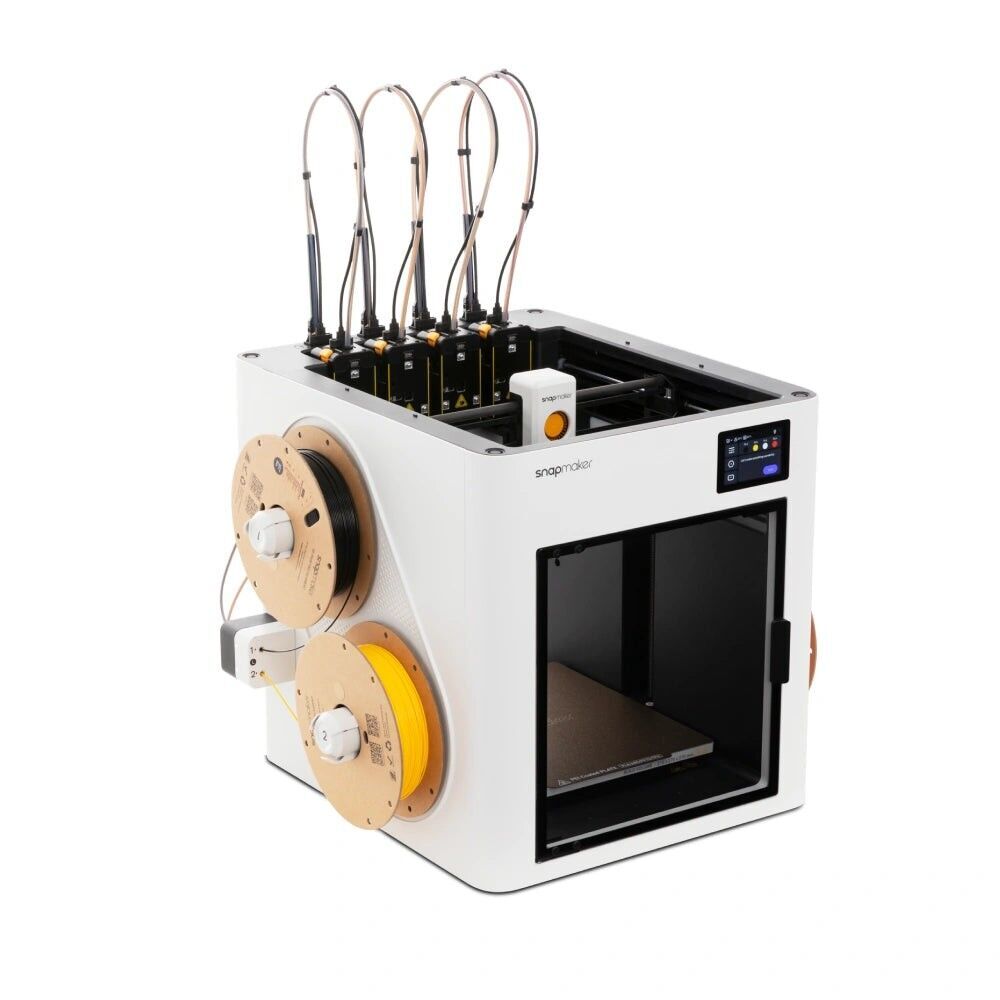

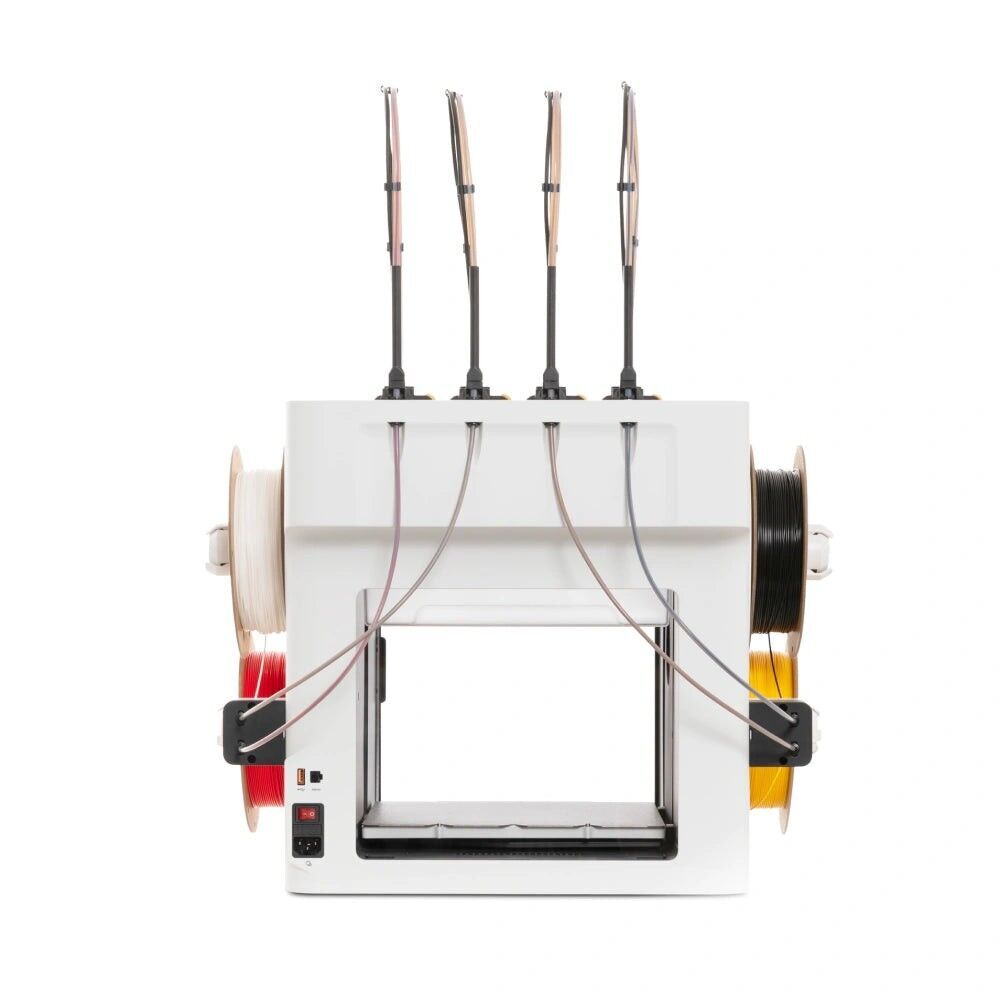

Snapmaker U1

U1 Colour 3D Printer

Four independent toolheads, five-second swaps. Multi-colour and multi-material printing without the purge waste, built on a fast CoreXY platform.

SnapSwap™ 4-Toolhead System



Instead of purging one filament to load the next, the U1 simply changes toolheads. Each of the four extruders keeps its own filament loaded and ready, so colour changes take around 5 seconds and generate a fraction of the waste of single-nozzle multi-colour systems — up to 5× faster with up to 80% less purge waste. Steel-ball kinematic couplings lock each toolhead in with repeatable precision, tested over 1,000,000 swaps.

Snapmaker U1 SnapSwap 4-toolhead system with 5 second swaps

Key Specifications

Build Volume: 270 × 270 × 270 mm
Toolheads: 4 independent extruders with ~5 s SnapSwap™ changes
Max Toolhead Speed: 500 mm/s (20,000 mm/s² acceleration)
Max Flow Rate: 32 mm³/s
Motion System: CoreXY with lightweight carbon-fibre X-axis rails
Nozzle: 0.4 mm, up to 300°C
Bed Temperature: Up to 100°C, flexible PEI steel sheet
Firmware & Slicing: Klipper-based firmware, Snapmaker Orca / OrcaSlicer
Interface: 3.5″ touchscreen, built-in chamber camera, Wi-Fi, USB, mobile app
Filament Support: PLA, PETG, TPU, PVA, PCTG (expanded range with optional Top Cover)

Core Features


  • Four independent toolheads for true multi-colour and multi-material printing
  • ~5 second toolhead swaps with minimal purge waste
  • High-speed CoreXY motion up to 500 mm/s with input shaping
  • Full auto calibration — mesh bed levelling, toolhead offsets (±0.04 mm), flow and vibration compensation

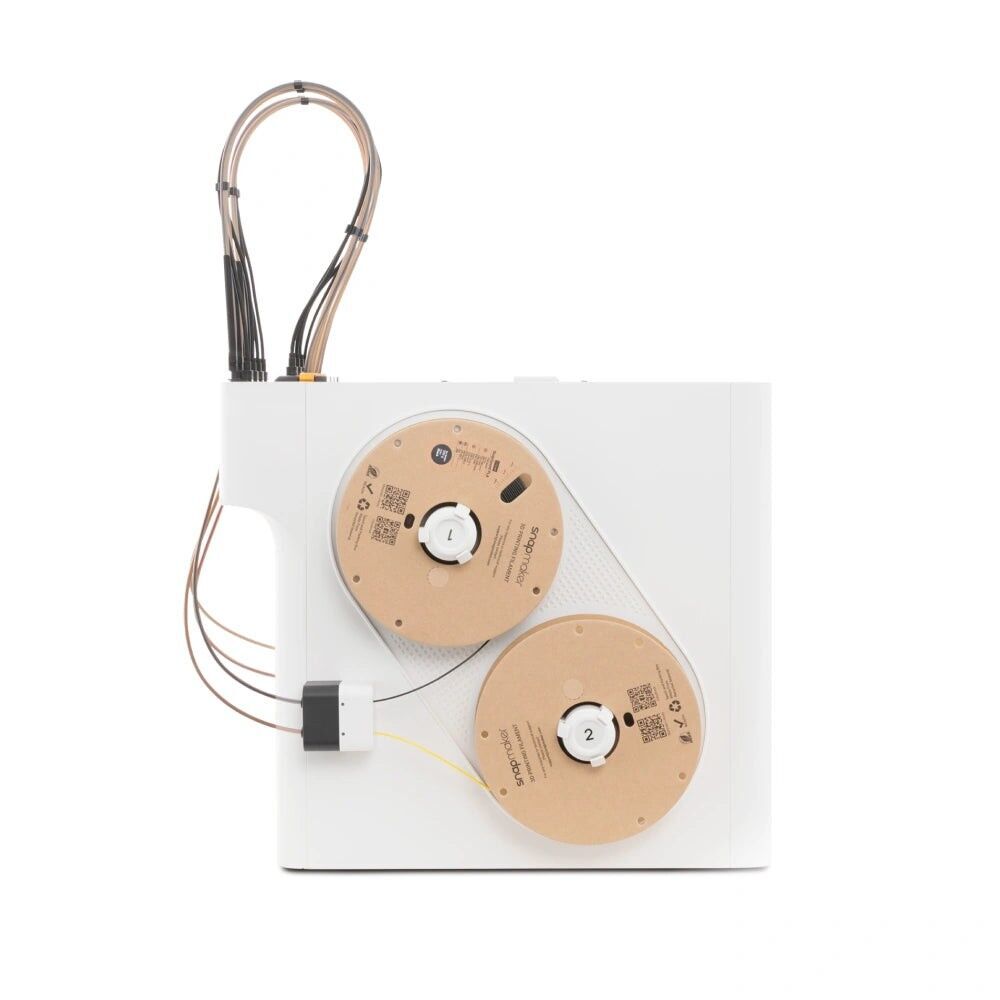

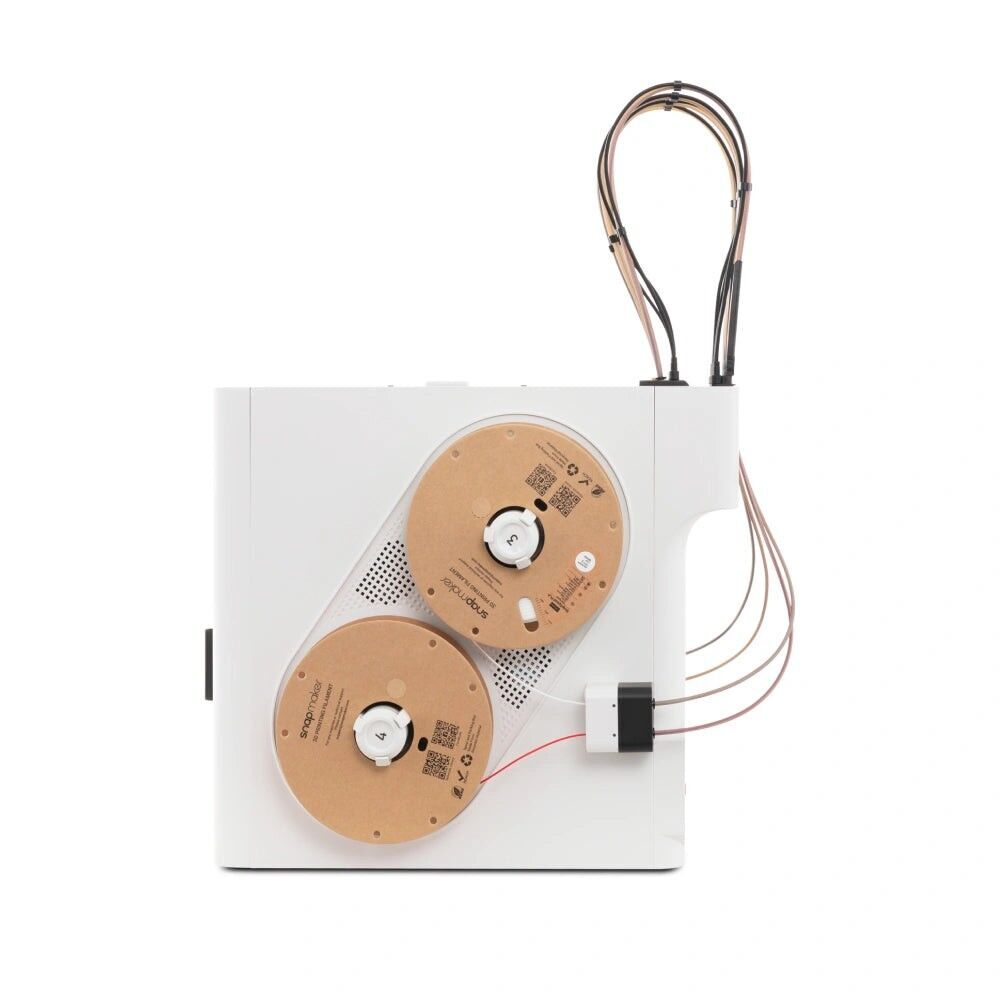

  • Compact filament management for 4 spools with auto-loading, no manual threading
  • Backup mode automatically switches to a matching spool when one runs out
  • RFID recognition for official Snapmaker filaments
  • Built-in chamber camera with AI failure detection and timelapse capture
  • Power loss recovery, Wi-Fi, USB, and remote monitoring via the Snapmaker App
  • 80+ curated multi-colour models with pre-tuned profiles in Snapmaker Orca

Smart Monitoring Features

AI Print Failure Detection
The chamber camera watches for spaghetti failures and print anomalies, and captures timelapses.
Air Printing Detection
Identifies when the printer is extruding nothing and stops wasted print time.
Filament Runout Detection & Backup Mode
Pauses on runout, or swaps automatically to a matching backup spool.
Toolhead Swap Error Detection
Verifies every SnapSwap™ change completes correctly before printing continues.
Build Plate Checks
Detects a missing build plate or obstructions before the print starts.

Fast, Precise CoreXY Motion



A rigid CoreXY platform with lightweight carbon-fibre X-axis rails keeps the U1 accurate at speed, while accelerometer-based input shaping and pressure advance keep surfaces clean through rapid direction changes.

Snapmaker U1 CoreXY motion system with 500 mm/s speed

Material Focus

Optimised out of the box for PLA, PETG, TPU, PVA and PCTG — ideal for multi-colour models, soluble supports and everyday functional parts. Adding the optional Top Cover extends support to ABS, ASA, PA, PC and PET, and with a hardened steel nozzle the U1 can also run carbon-fibre and glass-fibre reinforced polymers.

What’s in the Box



Snapmaker U1 printer with textured PEI steel sheet, 4 toolheads with hot ends, 4 spools of SnapSpeed PLA (pre-loaded), 4 filament holders, 2 filament feeders, waste collector, toolhead cables, tool and accessory box, quick start guide and AC power cable.

Snapmaker U1 what's in the box contents

Specifications may vary by region or firmware updates.

(71977)

SKU 71977
Barcode # 6971573442709
Brand Snapmaker
Shipping Weight 26.0000kg
Shipping Width 0.580m
Shipping Height 0.500m
Shipping Length 0.540m
Shipping Cubic 0.156600000m3
