Install Heat-Set Inserts with Better Control.

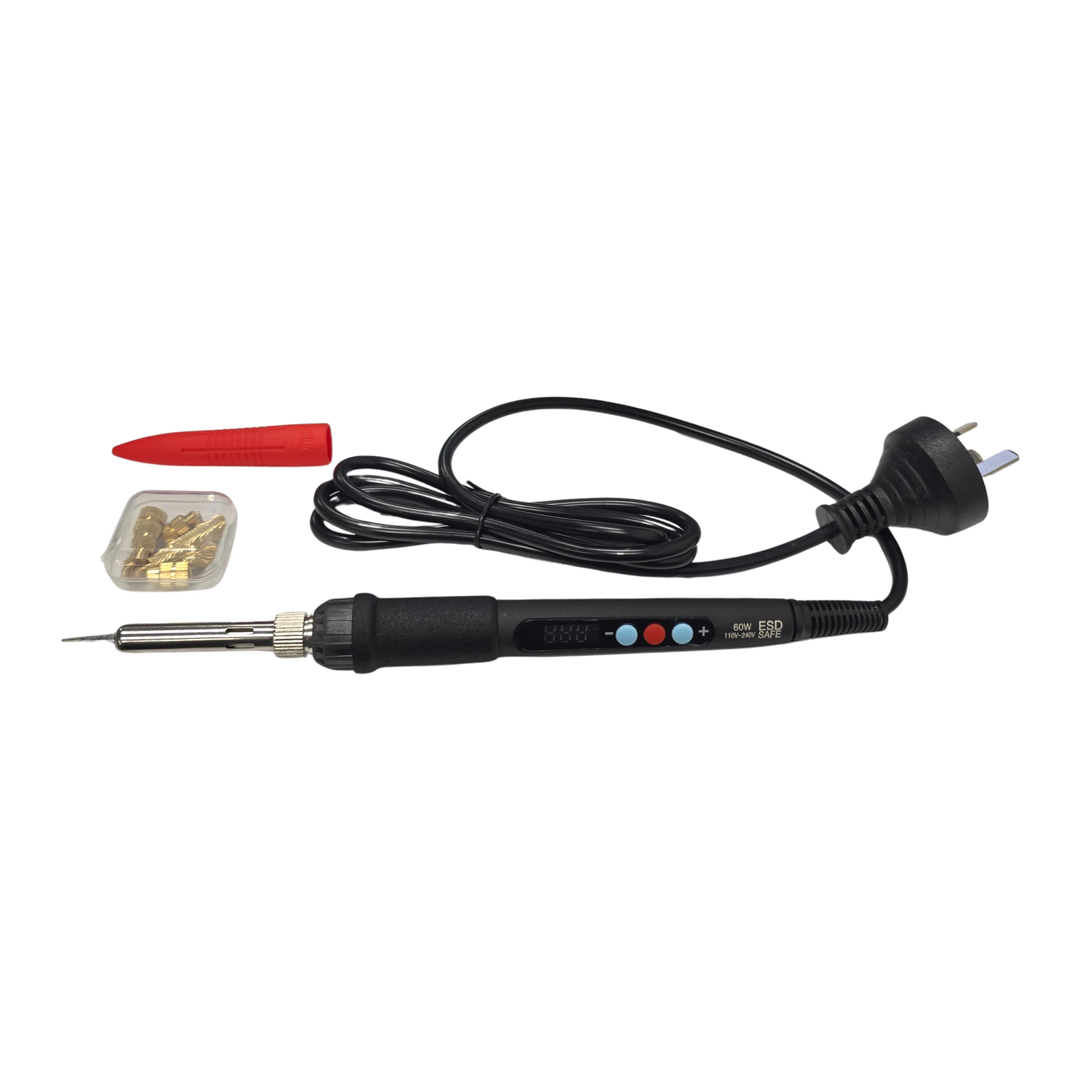

A 60W ESD-safe soldering iron with adjustable temperature control, a heat-set tip adaptor and six interchangeable insert tips.

Create strong, reusable threaded connections in compatible 3D-printed parts with this Heat-Set Insert Soldering Iron and Tip Set. The included 60W soldering iron features adjustable digital temperature control from 180–500°C, allowing the heat output to be matched to the insert size and printed material being used.

The set includes a heat-set tip adaptor and six interchangeable tips covering M2, M2.5, M3, M4, M5 and M6 threaded inserts. The correctly sized tip provides direct and even contact with the insert, helping it heat consistently and press smoothly into the printed part.

Its ESD-safe design helps reduce the risk of electrostatic discharge when working around sensitive electronic components, making it a practical addition to 3D-printing, electronics and prototyping workbenches.

• 60W ESD-safe soldering iron
• Adjustable digital temperature control
• Temperature range from 180–500°C
• Ceramic heating element for fast, consistent heating
• Includes one heat-set insert tip adaptor
• Includes six heat-set insert tips
• Tip sizes: M2, M2.5, M3, M4, M5 and M6
• Supplied with an Australian plug

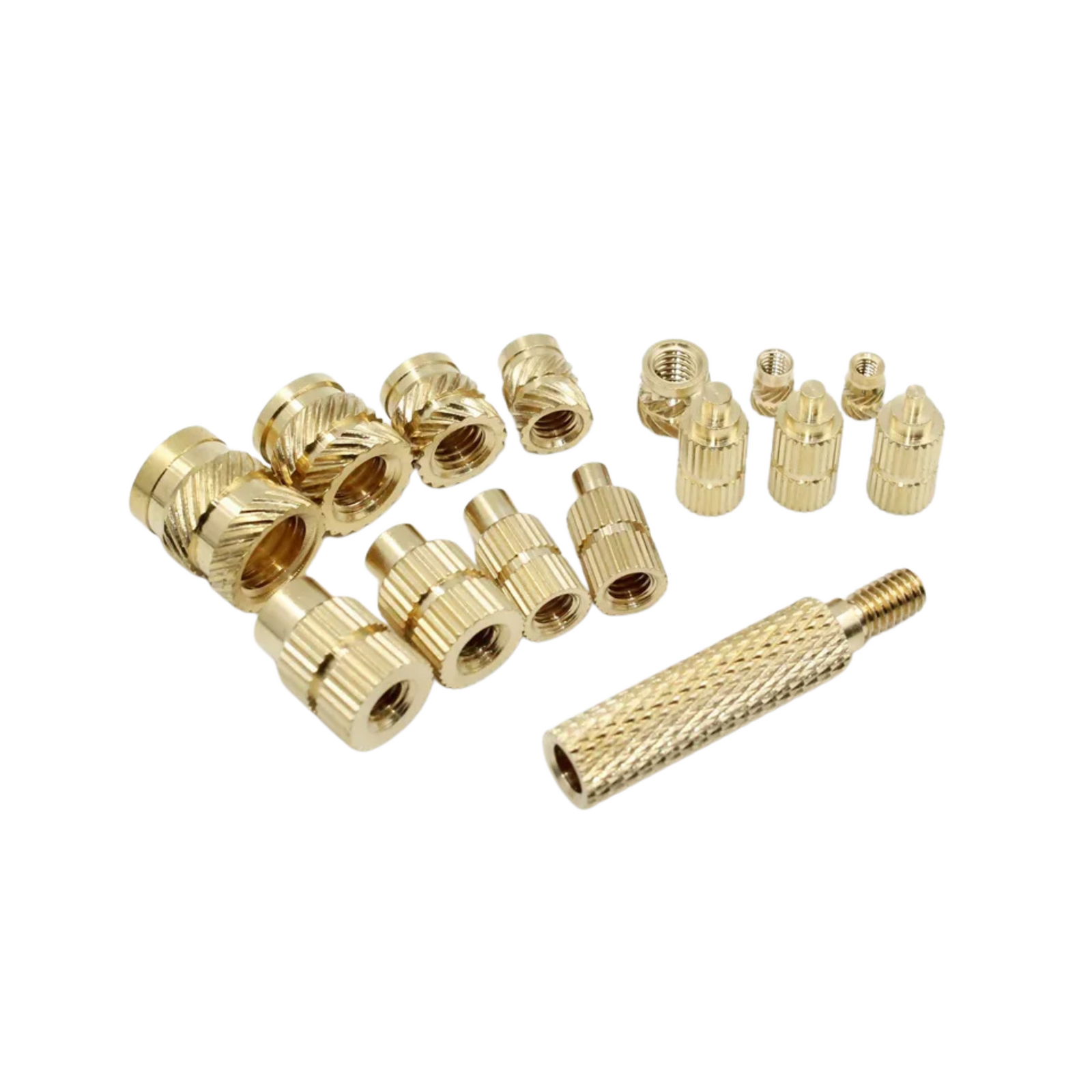

Included Heat-Set Insert Tip Sizes

Select a tip size below to view matching brass threaded heat-set inserts. Threaded inserts are sold separately.

Tip sizes correspond to the thread size of the matching heat-set insert.

Product Details

• Product Type: Heat-set insert soldering iron and tip set
• Power: 60W
• Rated Voltage: 110–240V
• Plug Type: Australian plug
• Temperature Control: Adjustable digital control
• Temperature Range: 180–500°C
• ESD Protection: ESD-safe design
• Heating Element: Ceramic
• Included Tip Sizes: M2, M2.5, M3, M4, M5 and M6
• Number of Heat-Set Insert Tips: 6
• Soldering Iron Length: Approx. 220 mm
• Cord Length: Approx. 1.38 m
• Soldering Iron Weight: Approx. 100 g, excluding packaging
• Application: Installing threaded heat-set inserts into compatible 3D-printed plastic parts

What’s Included

• 1 × 60W ESD-safe digital soldering iron with Australian plug
• 1 × Heat-set insert tip adaptor
• 1 × M2 heat-set insert tip
• 1 × M2.5 heat-set insert tip
• 1 × M3 heat-set insert tip
• 1 × M4 heat-set insert tip
• 1 × M5 heat-set insert tip
• 1 × M6 heat-set insert tip

Safety: The soldering iron, tips and inserts become extremely hot during use. Always work on a heat-resistant surface, avoid touching heated components and allow the tool to cool completely before changing tips or storing it.
