Prusa Heatbed MK52 24V - xBuddy replacement set

This is a replacement 24V heatbed assembly with wiring and printed parts for selected Prusa 3D printers.

Compatibility

  • MK3.5
  • MK3.5S
  • MK3.9
  • MK3.9S
  • MK4
  • MK4S

Not compatible

  • CORE One
  • CW1
  • CW1S
  • HT90
  • MINI
  • MINI Enclosure
  • MINI+
  • MMU1
  • MMU2
  • MMU2S
  • MMU3
  • MK2
  • MK2.5
  • MK2.5S
  • MK2S
  • MK3
  • MK3S
  • MK3S+
  • MKx Enclosure
  • SL1
  • SL1S
  • XL
  • XL Enclosure

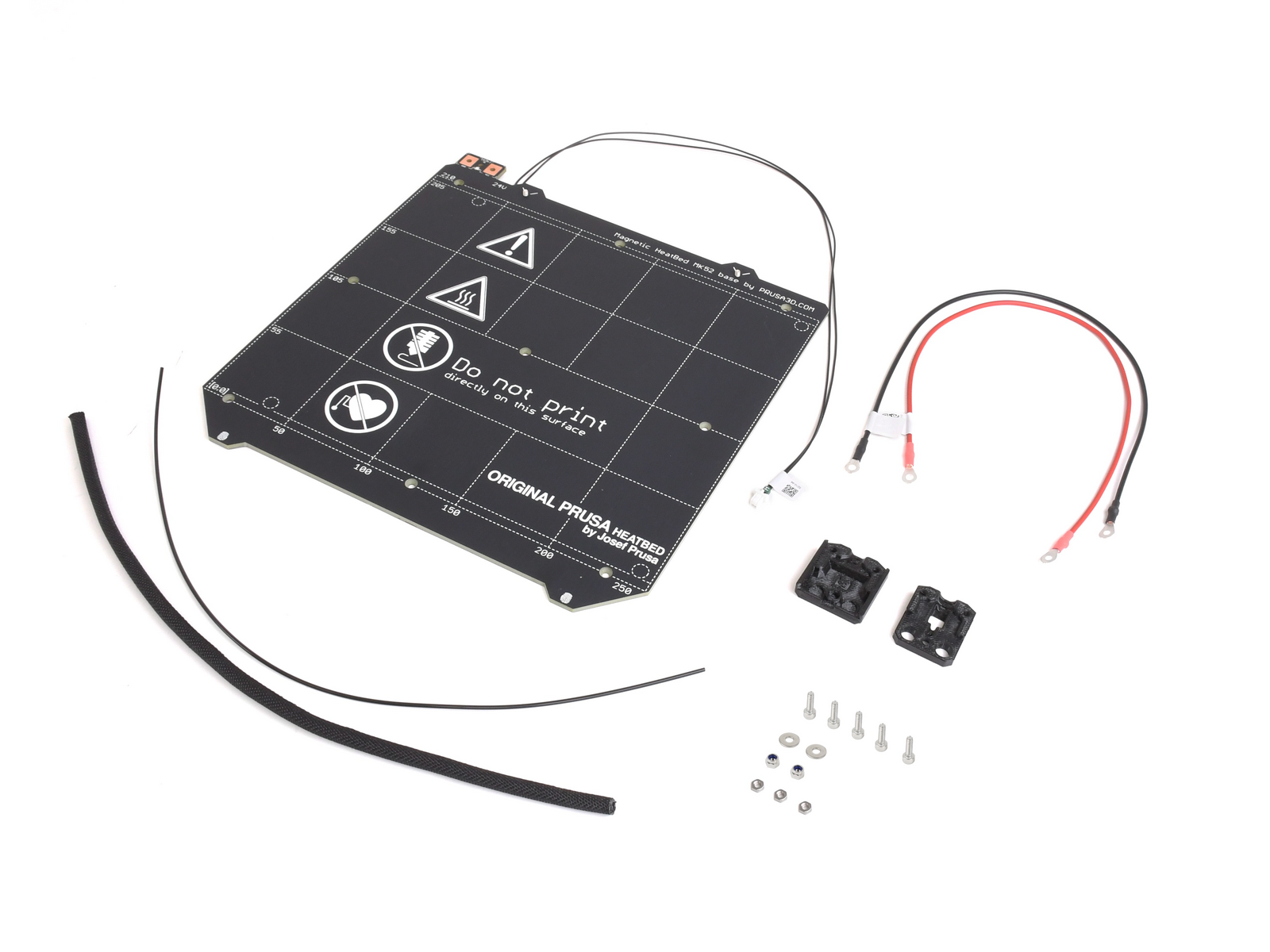

What's included

  • Heatbed MK52 24V (1 pc)
  • Heatbed wiring - black (1 pc)
  • Heatbed wiring - red (1 pc)
  • heatbed-cable-cover-top (1 pc)
  • heatbed-cable-cover-bottom (1 pc)
  • Textile sleeve 5x350 mm (1 pc)
  • Nylon 2x380 mm (1 pc)
  • M3x10 screw (5 pcs)
  • M3n nut (3 pcs)
  • M3nN nut (2 pcs)
  • M3w washer (2 pcs)

Notes

  • Height: 264.4 mm
  • Width: 254 mm
  • Thickness: ~3.175 mm
  • Maximum working temperature: 120°C
  • Maximum recommended temperature: 110°C
  • Voltage: 24V
  • Current: 6.25A
  • Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090

Installation

Refer to the repair manual for your model at help.prusa3d.com.

(50217)

SKU 50217
Brand Prusa Research
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
